MT-C-GS HA OC Angle bracket

#2430775

Configurator
Technical Data
Documents
Features & Applications
Related Products

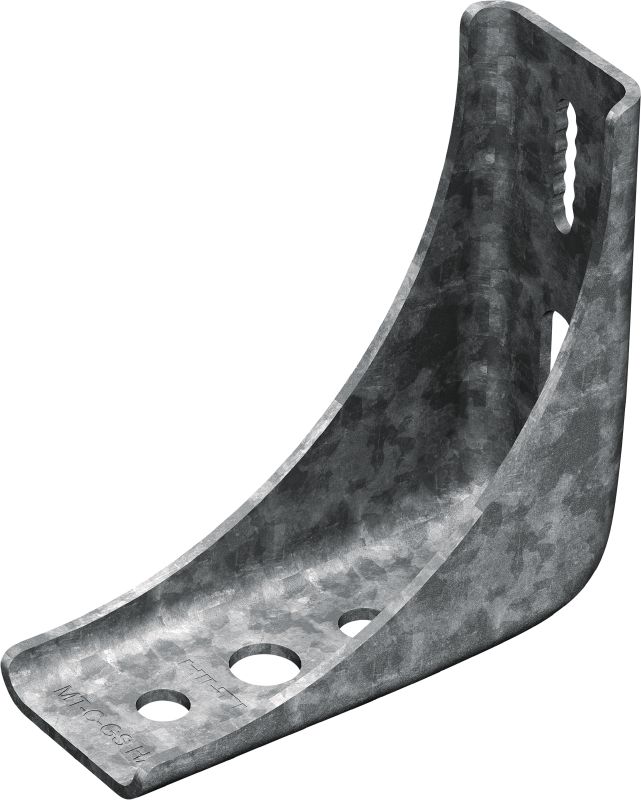

Still life picture of MT-AS B OC Pipe ring saddle

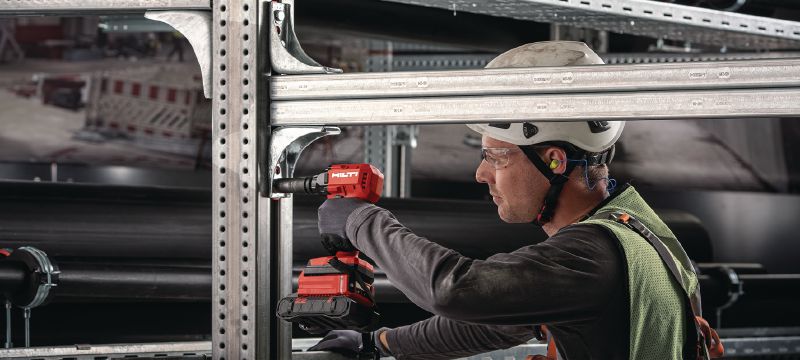

Cropped application image of MT-S-SP system & MT-C-GL HA OC & MT-C-GS HA OC & MT-C-GLP L A OC connectors & MT-90H OC channel
Line drawing of MT-C-GS HA OC

Small, semi-adjustable and braced angle bracket, for box profiles and C-Channel structures with 3D loading in moderately corrosive environments

  • Material composition: Q355 or better steel
  • Surface finish: Outdoor Coated - HDG
  • Material thickness: 3 mm

Choose options

Pack size
  • 10 pc
 Product options
Quantity
Box
Total Pieces
10
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$140.00
$140.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
3 mm
Weight
0.9 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster to install – quick installation with MT wing nuts (MT-HL OC) or MT thread forming bolts (MT-TFB OC) and compatible with the Hilti Adaptive Torque system, to help avoid over- or under-torquing (compatible tool and SI-AT module required)
  • Versatile and secure connections – use oblong holes to adjust height in 5mm (1/4") increments and cloud holes with thread forming bolts (MT-TFB) for secure connections between MT box profiles
  • Seamless adjustability – use the round holes of the angle bracket for mounting to MT-90H profiles, allowing you to attach, adjust and re-adjust at any point along the profile's seamless groove
  • Flexible – angle brackets can also be used as a baseplate, achored to concrete, or directly fastened to steel (combine one, two, or four brackets to match your load requirements)
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Right-angle connections between MT-80, MT-90 and MT-100 box profiles when resistance to 3D stresses is required
  • Fastening MT C-Channel profiles to concrete floors, walls, ceilings, or to structural steel
  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
