Nuron

SIW 6AT-22 Mid-Torque impact wrench

Cordl. impact wrench SIW 6AT-22 1/2" #2365072

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

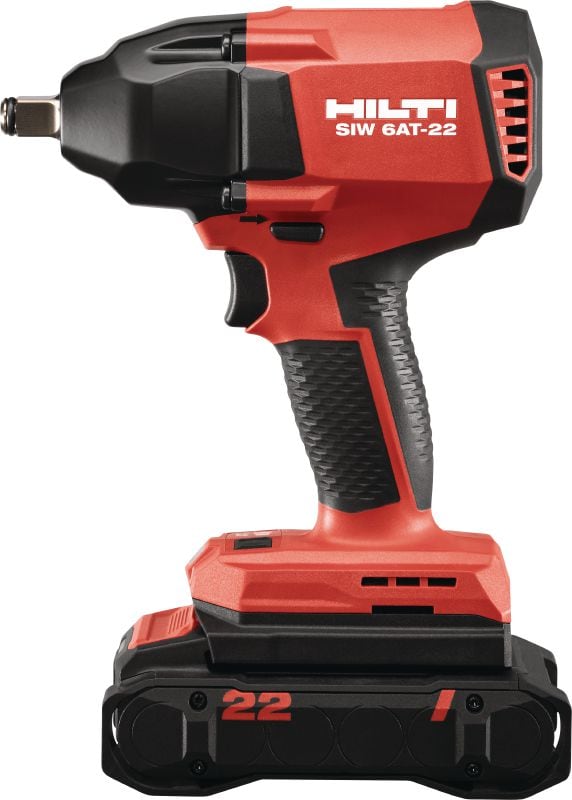

Side view of drilling SIW 6AT-22 without battery

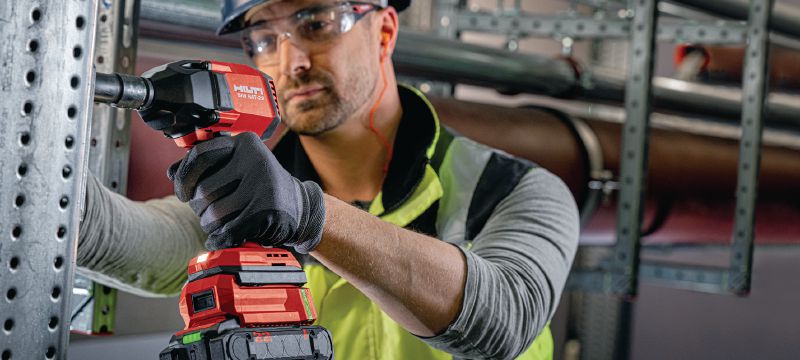

Cropped application image of the SIW 6AT-22 tool body with the B22-85 battery for MT installation system using the AT module SI-AT-22.

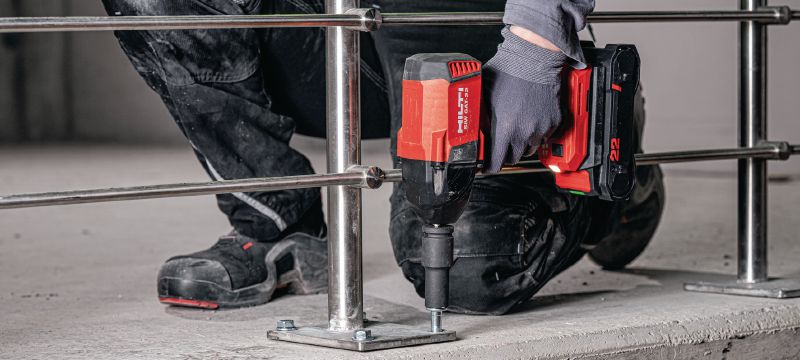

Cropped application image of the SIW 6AT-22 tool body with the B22-85 battery for HUS screw anchors.

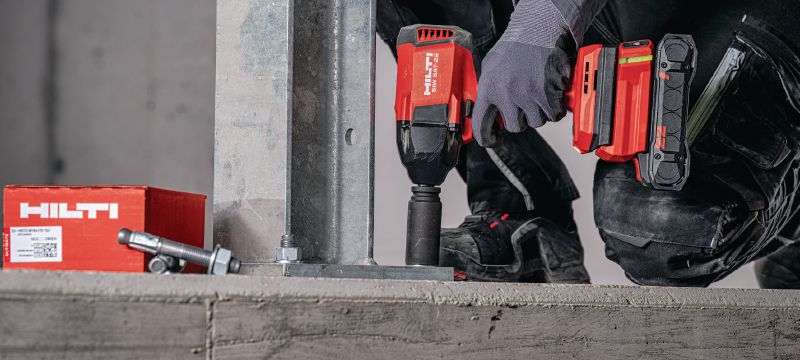

Cropped application image of the SIW 6AT-22 tool body with the B22-85 battery for stud anchors using the AT module SI-AT-22.

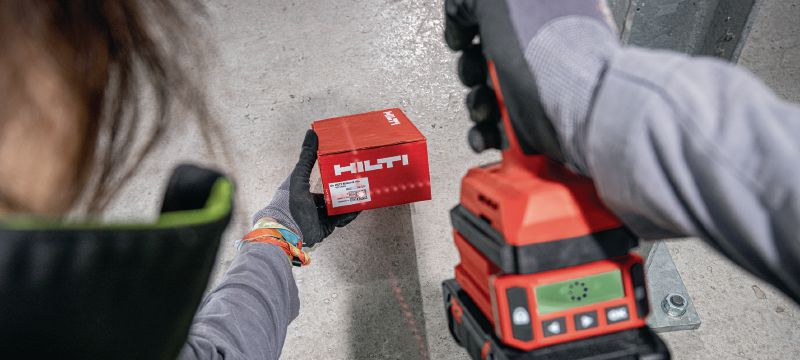

Cropped application image of the SIW 6AT-22 tool body with the B22-85 battery scanning QR code from anchors box with AT module SI-AT-22.

Power-class 22V impact wrench with robust 1/2" friction ring anvil for faster and safer anchoring and bolting

  • Anvil type: 1/2" friction ring
  • Maximum torque: 221 ft-lbs (1); 332 ft-lbs (2)
  • Full hammering frequency: 3500 impacts/minute

Customers also searched for Nuron impact wrench, Nuron battery impact wrench, battery impact wrench, impact wrench or cordless impact wrench.

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$379.00

Technical Data

Anvil type
1/2" friction ring
Maximum torque
221 ft-lbs (1); 332 ft-lbs (2) 1
Full hammering frequency
3500 impacts/minute
Number of gears
2
No load RPM
gear 1: 1550 rpm; gear 2: 1750 rpm
Dimensions (LxWxH)
7.2 x 2.8 x 8.7 in
Tool body weight
4 lb
A-weighted emission sound pressure level
100 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 6AT-22 (03), English, Spanish, French, Portuguese [ 1.3 MB ]

Features & Applications

Features

  • Faster concrete screw anchor setting from a more compact tool, thanks to the combination of brushless motor and next-generation Nuron batteries
  • More durable build – the brushless motor and friction ring anvil contribute to the longevity of our cordless impact wrenches

Applications

  • Setting HUS screw anchors in concrete for baseplates, formwork props, handrails and temporary fixtures (3/8”-5/8” diameter)
  • Setting Hilti stud anchors in concrete with Adaptive Torque module (1/2"-3/4” diameter)
  • Lag bolting in wood for primary and secondary wood structures, wood roofs, or temporary structures (3/8”-5/8” diameter)
  • Setting Hilti MT installation system more quickly and safely with Adaptive Torque module

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
