MT-90H OC Box profile

Configurator
Technical Data
Documents
Features & Applications
Related Products
Still life picture of MT-90H OC Seamless box profile

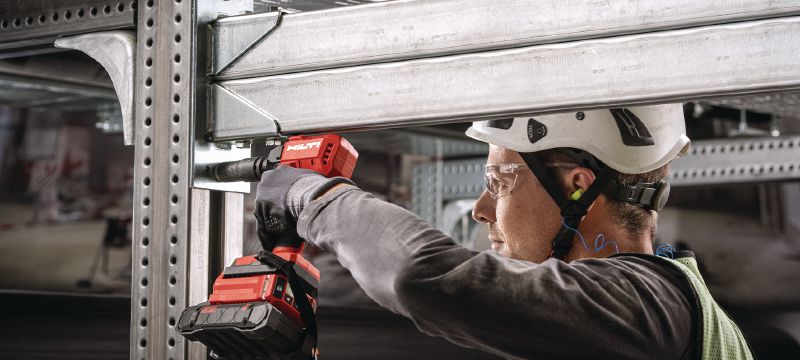

Cropped application image of MT-S-SP system & MT-C-GL HA OC & MT-C-GS HA OC & MT-C-GLP L A OC connectors & MT-90H OC channel

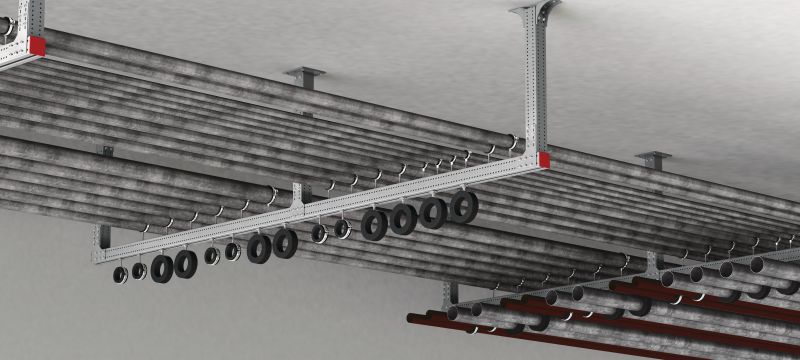

Application picture of MT-90H OC

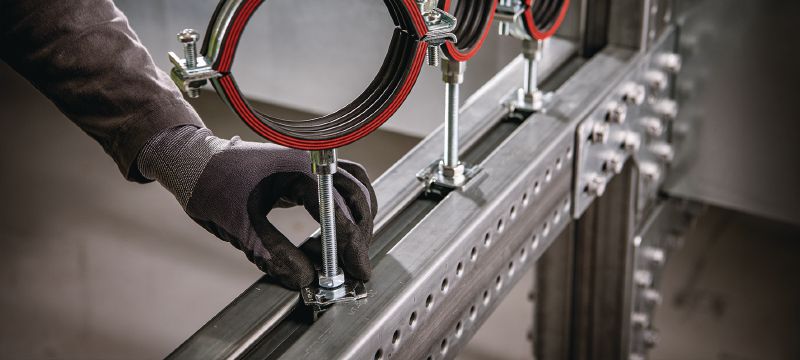

Cropped application image of MT-C-GL HA OC & MT-C-GS HA OC & MT-C-GLP L A OC connectors & MT-90H OC channel

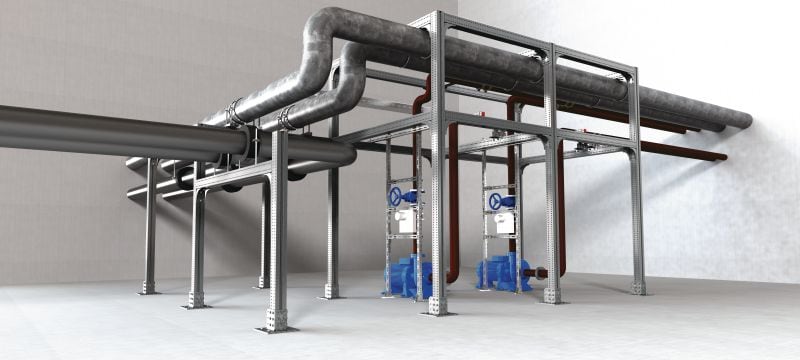

Application picture of MT-90H OC

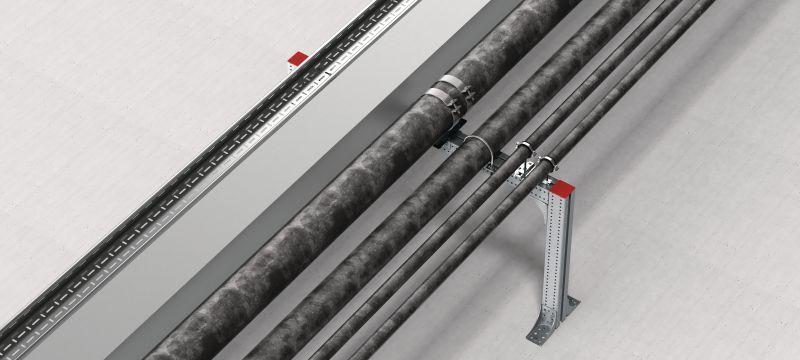

Application picture of MT-90H OC

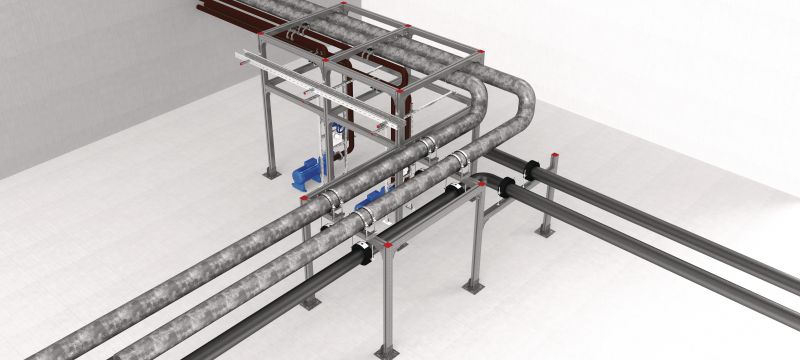

Application picture of MT-90H OC
Line drawing of MT-90H OC

Heavy-duty box profile for use with MT-TFB and MT-THB/MT-HL components in outdoor environments

  • Material composition: S350 or better steel
  • Surface finish: Outdoor Coated - ZM
  • Material thickness: 2.25 mm

Choose options

Pack size
  • 3 m
  • 6 m
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,203.00

Technical Data

Details
Technical illustrations
Material composition
S350 or better steel
Surface finish
Outdoor Coated - ZM
Material thickness
2.25 mm
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Brochure
Approval document
Certificate
Sustainability Documentation
pdf MT Systems Brochure W4569 [ 1.6 MB ]
pdf MT Support System Brochure [ 9.3 MB ]
pdf MT Support Systems Brochure CA Fr [ 15.9 MB ]

Features & Applications

Features

  • Fast and flexible assembly – mounting slot with pre-holding function allows you to quickly attach, adjust, re-adjust connectors at any point along the section, helping reduce costly errors and re-work
  • Simpler to design – you can use all Hilti MT System components for the lightest to heaviest-duty MEP installations, helping to simplify your designs, logistics, and on-site operations
  • Simpler to install – domed-holes combine with the MT Thread Forming Bolts, for full integration with a wide range of MT connectors and baseplates
  • Lighter and more cost-effective – steel with improved load efficiency makes MT-90H OC box profiles an efficient alternative to welding for many heavy-duty MEP supports and modular structures
  • Part of the Hilti MT System – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Multidisciplinary MEP support structures combining a wide range of media such as air ducts, cable trays, piping, etc.
  • Process piping for energy and industry applications
  • Ceiling-mounted MEP support structures with heavy loads such as ceiling grids and utility piping and drainage
  • Integrated modules and skids to support industrial pipes and other heavy-duty building services
  • Floor-mounted MEP support structures with heavy loads

For approval or certificate information, please see individual items.
