KCM-MD Kwik Cast cast-in-place anchor, long plate

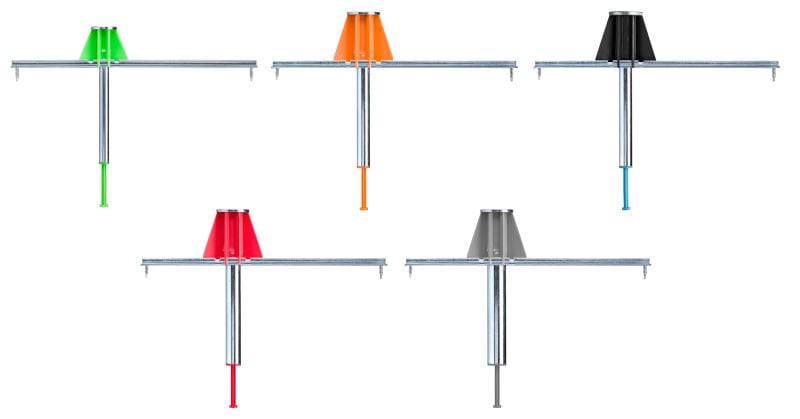

2D Side view of KCM-MD Portfolio in different colors

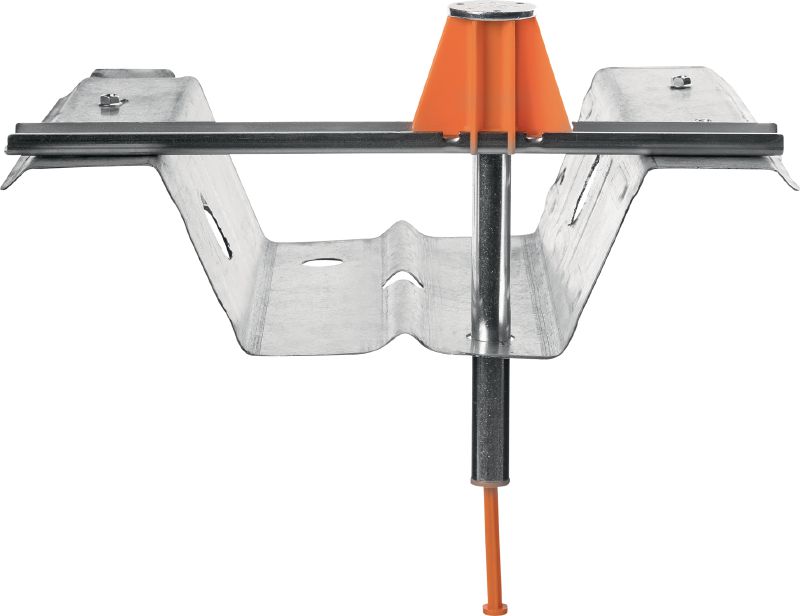

KCM-MD Long Plate installed in upper flute of metal deck
Cropped application image of Construction worker using SID 6-22 with a KCM-MD Kwik Cast combo bit to install KCCM-MD cast-in anchors. Golden, CO. 2024.
2D Side view of KCM-MD Portfolio in different colors
KCM-MD Long Plate installed in upper flute of metal deck
Cropped application image of Construction worker using SID 6-22 with a KCM-MD Kwik Cast combo bit to install KCCM-MD cast-in anchors. Golden, CO. 2024.

Ultimate-performance multi-thread long plate cast-in-place anchor for concrete on metal deck with approvals

  • Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
  • Base materials: Concrete (cracked), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for cast-in-place anchor, cast-in anchor, metal deck anchor, anchor for metal deck or anchor for concrete over metal deck.

Choose options

Anchor size - D
  • 1/4 in & 3/8 in
  • 3/8 in & 1/2 in
  • 1/4 in & 3/8 in & 1/2 in
  • 5/8 in & 3/4 in
  • 3/8 in & 1/2 in & 5/8 in
Color (anchor housing)
  • Black
  • Green
  • Grey
  • Orange
  • Red
Color (plug)
  • Black
  • Blue
  • Green
  • Orange
  • Red
Pack size
  • 1 pc
  • 15 pc
  • 20 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $174.00

Technical Data

Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Internally threaded
IBC compliance
IBC 2012, IBC 2015, IBC 2018, IBC 2021
Material composition
Carbon steel, Zinc-plated
PROFIS Software
Yes

Documents

Features & Applications

Features

  • Application-relevant multi-thread configurations
  • Pre-assembled self-tapping screws reduce installation time
  • Pre-assembled spanner plate offers flexibility with installation at any location on the metal deck
  • Color-coded plastic plugs protect inner threads from concrete and Monokote® fireproofing
  • KCM-MD Combo Bit, 2-in-1 setting tool, available for quick and easy installation

Applications

  • Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements
  • Pre-installed fastening points for seismic bracing applications

For approval or certificate information, please see individual items.
