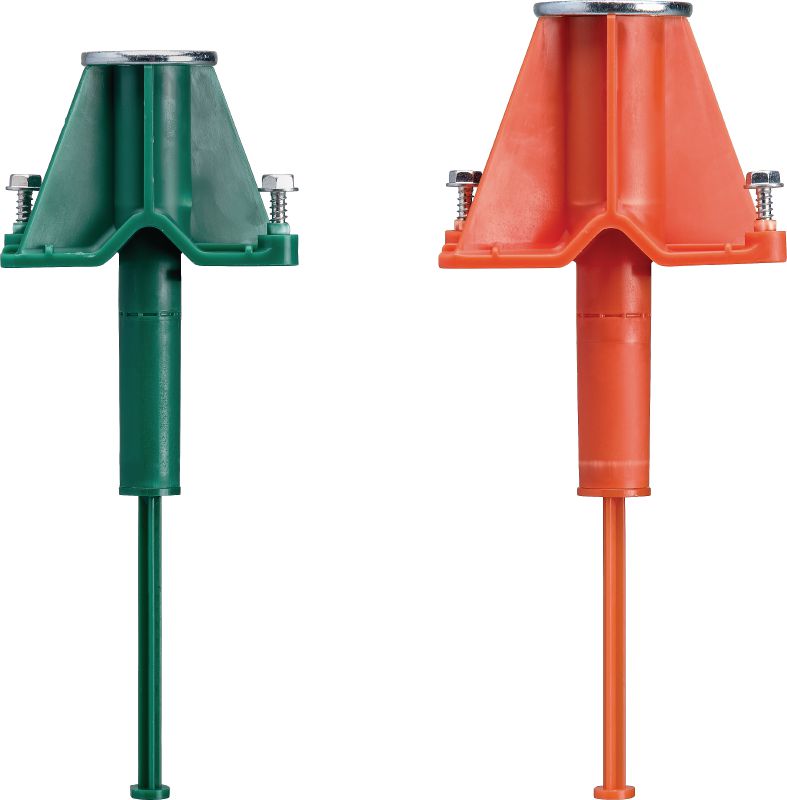

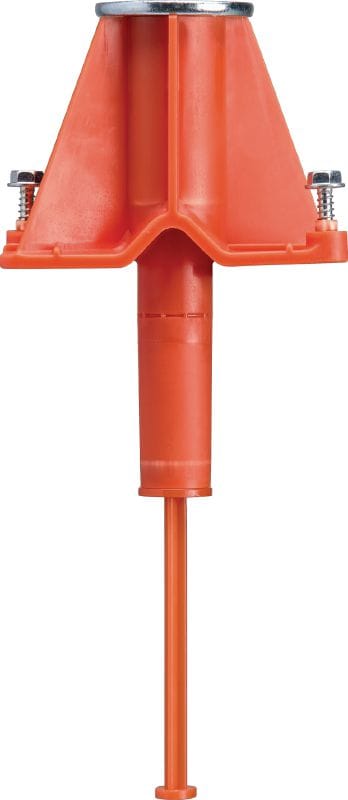

KCC-MD Kwik Cast Connect cast-in-place anchor, short plate
Ultimate-performance push-to-connect short plate cast-in-place anchor for concrete on metal deck with approvals
- Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), Seismic, UL (Underwriter Laboratories)
- Base materials: Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
- Material, corrosion: Carbon steel, zinc-plated
Choose options
Anchor size - D
- 3/8 in
- 1/2 in
Color (anchor housing)
- Dark green
- Dark orange
Color (plug)
- Dark green
- Dark orange
Color
- Green
- Orange
Pack size
- 1 pc
- 45 pc
- 75 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $439.20
Technical Data
Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), Seismic, UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (lightweight over metal deck), Concrete (normal-weight over metal deck), Concrete (uncracked)
Material, corrosion
Carbon steel, zinc-plated
Seismic loading
Yes
Head configuration
Internally threaded
IBC compliance
IBC 2009, IBC 2012, IBC 2015, IBC 2018
Material composition
Carbon steel, Zinc-plated
PROFIS Software
Yes
Documents
Features & Applications
Features
- Quick push-to-connect technology offers ultimate productivity
- Pre-assembled self-tapping screws reduce installation time
- Upper and lower flute installation offers flexibility
- Color-coded plastic plugs protect inner threads from concrete and Monokote® fireproofing
- KCM-MD Combo Bit, 2-in-1 setting tool, available for quick and easy installation
Applications
- Ideal for pre-assembled / pre-fabricated hanger assemblies
- Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements
- Pre-installed fastening points for seismic bracing applications
For approval or certificate information, please see individual items.
