KCM-WF Kwik Cast cast-in-place anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

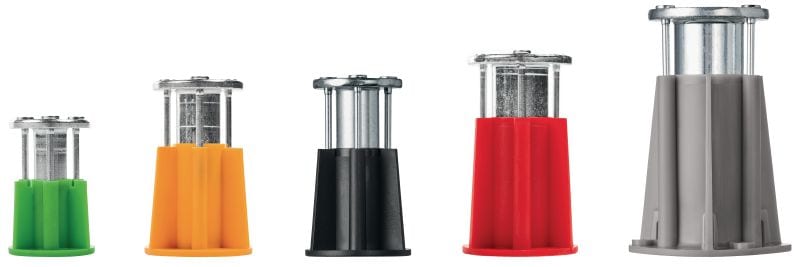

2D side view of KCM-WF in different colors

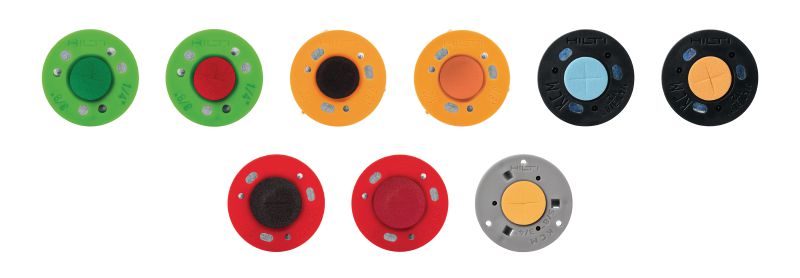

2D Side bottom View of KCM-WF in different colors

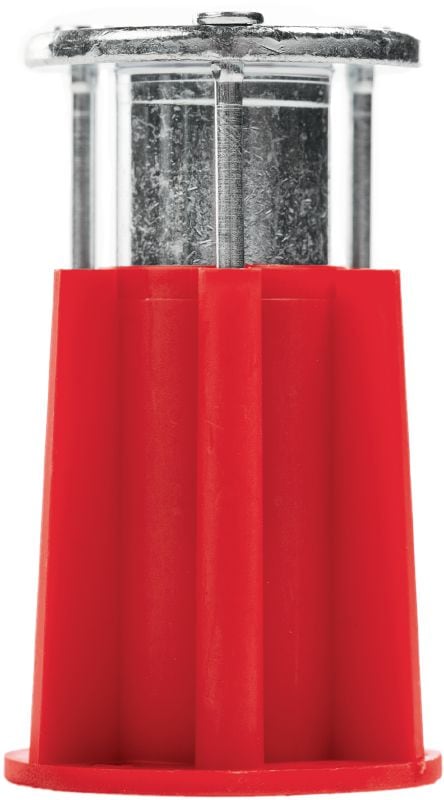

Single point cast-in multithread (3/8"+1/2"+5/8") red wood form anchor - Side view
Setting tool for Kwik cast in multithread woodform anchors

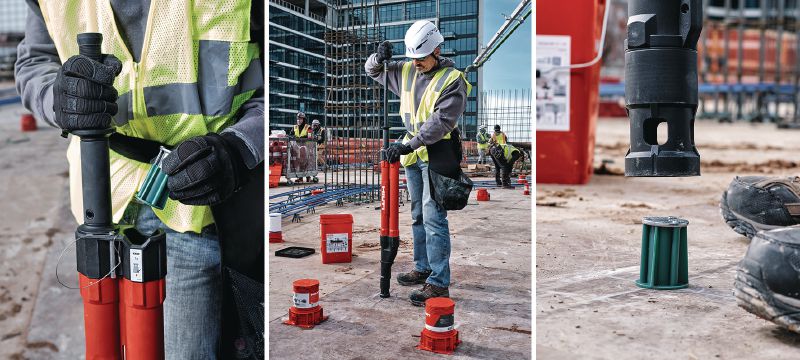

Collage 3 KCCM-WF application images used to create 1 PDP image. Approved by HAG. Dallas, TX. 2024.

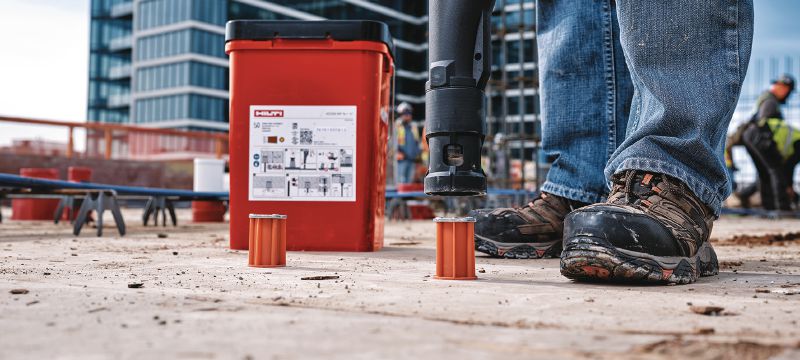

Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.

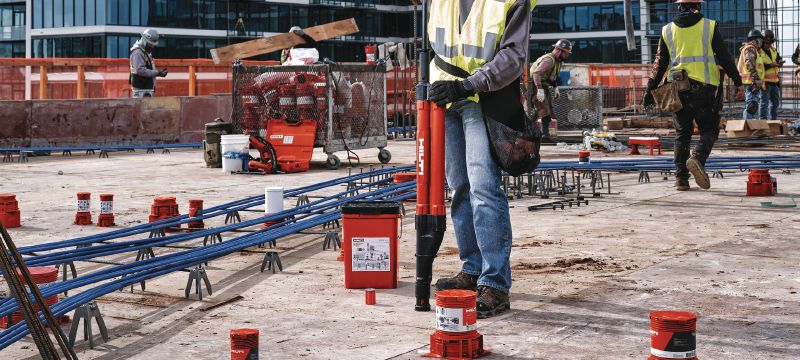

Cropped application image of Construction worker installing KCCM WF anchor onto wood formwork using the Kwik Cast setting tool. KCM-WF-ST. Dallas, TX. 2024.

Ultimate-performance multi-thread, cast-in-place threaded inserts for concrete on wood formwork with approvals

  • Approvals / Test reports: FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
  • Base materials: Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
  • Material, corrosion: Carbon steel, zinc-plated

Customers also searched for cast in anchor for wood form, wood form cast in anchor, anchor for wood form or wood form anchor.

Choose options

Anchor size - D
  • 1/4 in & 3/8 in
  • 3/8 in & 1/2 in
  • 1/4 in & 3/8 in & 1/2 in
  • 5/8 in & 3/4 in
  • 3/8 in & 1/2 in & 5/8 in
Color (anchor housing)
  • Black
  • Green
  • Grey
  • Orange
  • Red
Color (plug)
  • Black
  • Blue
  • Green
  • Orange
  • Red
Pack size
  • 1 pc
  • 75 pc
  • 100 pc
  • 150 pc
  • 250 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $472.80

Technical Data

Approvals / Test reports
FM (Factory Mutual), ICC-ES report (concrete), LABC, Seismic, UL (Underwriter Laboratories)
Base materials
Concrete (cracked), Concrete (lightweight), Concrete (uncracked)
Material, corrosion
Carbon steel, zinc-plated
Seismic loading
Yes
Head configuration
Internally threaded
Material composition
Zinc-plated, Carbon steel
PROFIS Software
Yes

Documents

Approval document
Technical information
Certificate
Documentation
Operating Instruction
pdf UL Certificate of Compliance EX2709 for Pipe Hangers, English [ 114.7 KB ]
pdf ICC ESR-4145 for KCM, KCC, KCCM Headed Cast-In Specialty Inserts in Cracked and Uncracked Concrete Including LABC and FBC Supplement, English [ 3.1 MB ]

Features & Applications

Features

  • Application-relevant multi-thread configurations
  • Nails above head prevent head pop-offs due to rebar hits
  • Design profile reduces lost anchoring points due to accidental rebar hits
  • Perforated foam protects inner threads from concrete intrusion
  • KCM-WF-ST standing setting tool available to help increase productivity

Applications

  • Pre-installed fastening points for suspending pipes, electrical conduits, cable trays, HVAC ducts and equipment, medical equipment and other overhead elements
  • Pre-installed fastening points for seismic bracing applications

For approval or certificate information, please see individual items.
