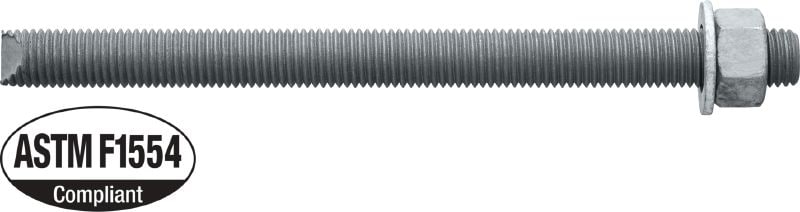

HAS-B-105 HDG Anchor rod
High-performance anchor rod for injectable adhesive mortars and HVU adhesive capsule (carbon steel, ASTM F1554 grade 105, hot-dip galvanized)
- Material, corrosion: Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
- Base materials: Concrete (cracked), Concrete (uncracked)
- PROFIS Software: Yes
Choose options
Material composition
- Steel, grade 105, ASTM F1554, hot-dip galvanized (min. 43 µm)
Anchor size - D
- 3/8 in
- 1/2 in
- 5/8 in
- 3/4 in
- 7/8 in
- 1 in
- 1 1/4 in
Anchor length - L
- 5-1/8 in
- 8 in
- 10 in
- 12 in
- 14 in
- 16 in
- 20 in
- 21 in
Head configuration
- Externally threaded
Pack size
- 1 pc
- 2 pc
- 8 pc
- 10 pc
- 20 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $57.50
Technical Data
Material, corrosion
Carbon steel, HDG (Hot-Dip Galvanized)/Sherardized
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes
Approvals / Test reports
ICC-ES report (concrete), ICC-ES report (masonry)
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning
Type of fixing
Pre-fastening
Documents
Features & Applications
Features
- Chisel-tip anchor rod for use with HVU adhesive capsules and for easy insertion when using with Hilti HIT injectable adhesive anchors
- Designed for use with HVU adhesive capsules in solid concrete or with Hilti HIT injectable adhesive mortar in various base materials
- Custom lengths and additional diameters up to 2 ½" available upon request

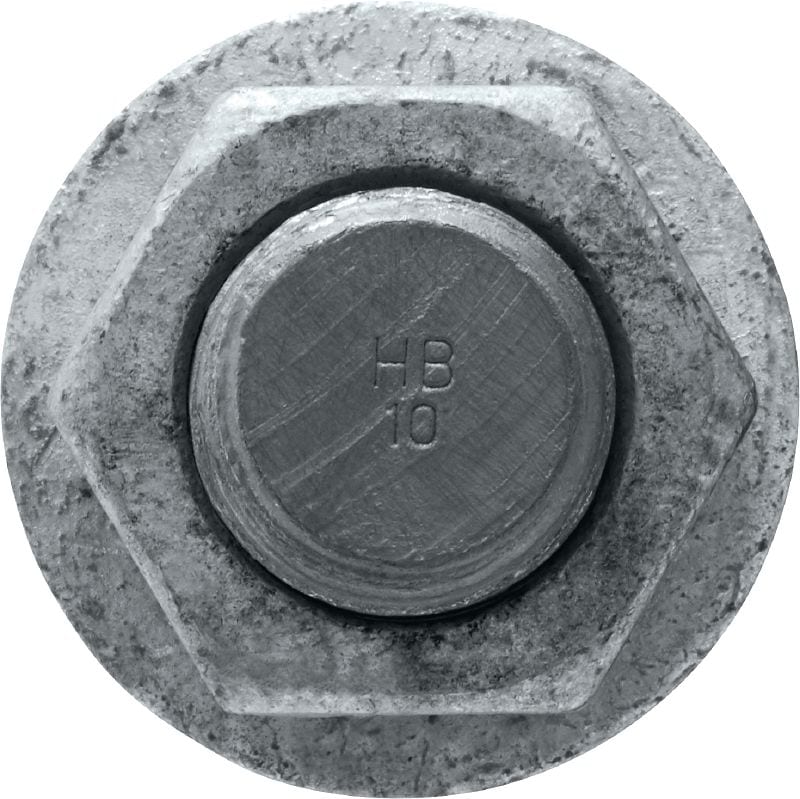

- Head marking for easy verification of steel grade and rod length, even after installation
- Free of oil and other contamination for the highest performance with Hilti HIT injectable adhesive anchoring systems
Applications
- Suitable for fastenings in concrete and some other base materials in combination with the relevant Hilti HIT injectable adhesive mortar
- Suitable for ductile fastening points with predictable steel failure in seismic-relevant applications
- Suitable for fastenings in concrete in combination with Hilti HVU capsules
For approval or certificate information, please see individual items.
