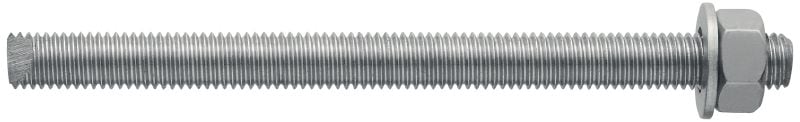

HAS-R 316 SS Anchor rod
High-performance anchor rod for adhesive capsules and injectable hybrid/epoxy anchors (316 stainless steel)
- Material, corrosion: Stainless Steel, 316
- PROFIS Software: Yes
- Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning
Customers also searched for threaded rod, all thread, stainless steel, 316 or epoxy anchor.
Technical Data
Material, corrosion
Stainless Steel, 316
PROFIS Software
Yes
Cleaning procedures
Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning, Manual Cleaning
Type of fixing
Pre-fastening
Documents
Features & Applications
Features
- Large range of anchor rod diameters (1/4" - 1")
- Designed for use with HVU adhesive capsules in solid concrete or with Hilti HIT injectable adhesive mortar in various base materials
- Features a chisel tip to cut and mix the HVU adhesive capsule
- Head marking for easy verification of steel grade and rod length, even after installation
- Free of oil and other contamination for highest performance with Hilti HIT injectable adhesive anchoring systems
Applications
- Suitable for fastenings in concrete and other base materials in combination with the relevant Hilti HIT injectable mortars

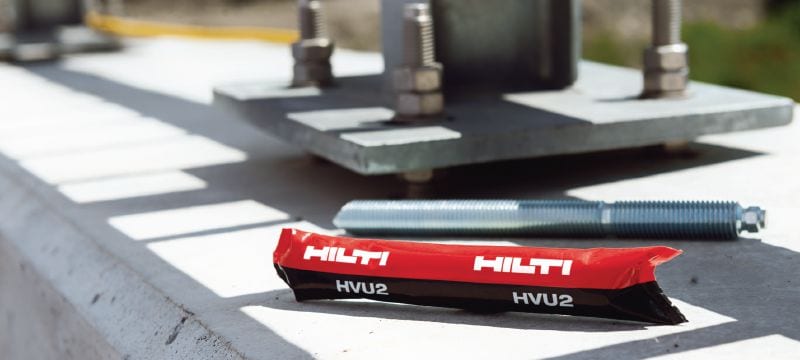

- Suitable for fastenings in concrete in combination with HVU adhesive capsules (3/8” to 1")

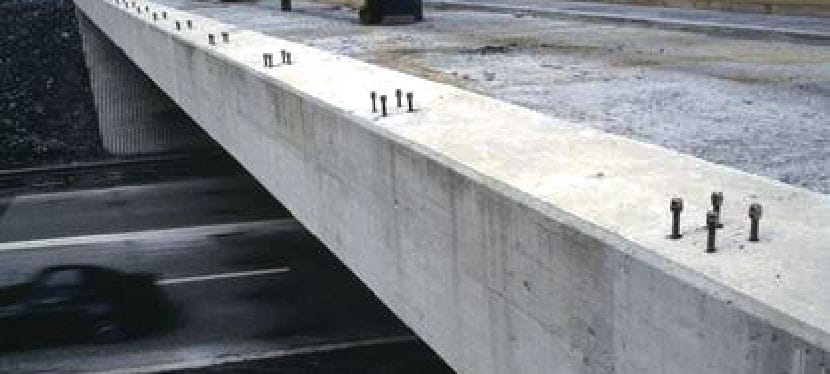

- For outdoor applications or fastenings in corrosive environments
- 1/4" and 5/16" rods without chisel tip for use with Hilti HIT-HY 70 injectable mortar
For approval or certificate information, please see individual items.
