TE 6-A22 Cordless rotary hammer

TE 6 A-22 + DRS Tool Case #3577891

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

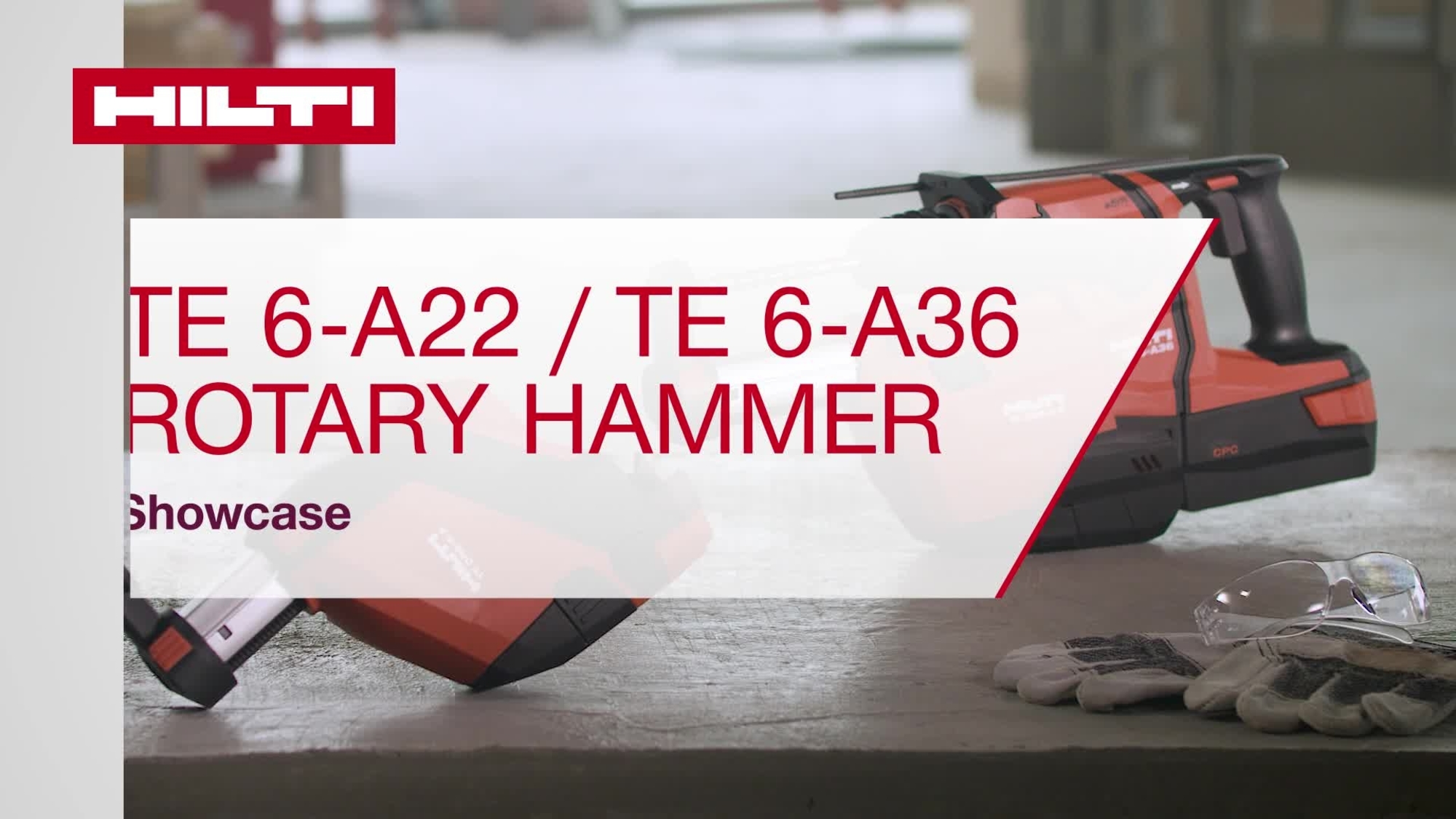

TE 6-A22 cordless rotary hammer with B22 4.0 battery.
TE 6-A22 drilling in brick wall for dry wall channel fastening in interior finishing
TE 6-A22 dustfree overhead drilling in concrete for fastening mechanical installation
TE 6-A22 drilling in masonry wall with percussion core bit for socket or pipe hole in Mechanical and Electrical
Elevator drill wall, DRSImage reference: Andreasturm. Ein Projekt von SBB Immobilien. (www.andreasturm.ch)Andreasturm. A project of SBB Real Estate. (www.andreasturm.ch)

Powerful D-grip 22V cordless rotary hammer with superior concrete drilling and chipping performance

  • Weight according EPTA-Procedure 01/2003 without battery: 8.2 lb
  • Optimum Hammer drilling range: 1/4 - 5/8 in
  • Single impact energy: 1.8 ft-lbs

Customers also searched for cordless hammer drill, chipping hammer drill, concrete hammer drill, hilti hammer drill or sds rotary hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$629.00
$629.00 / 1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
8.2 lb
Optimum Hammer drilling range
1/4 - 5/8 in
Single impact energy
1.8 ft-lbs
Hammer drilling diameter range
5/32 - 25/32 in
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Vibration Reduction (AVR), Removable chuck, Working light LED, Reverse mode, Depth gauge
Triaxial vibration for chiseling into concrete
10.9 m/s² 1
A-weighted emission sound power level
100 dB (A) 2
A-weighted emission sound pressure level
89 dB (A) 3
Dust removal system available
TE DRS-6-A, TE DRS-D, TE DRS-S, DCD
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
Battery Recycling Information
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (ES) [ 287.7 KB ]
pdf Material safety datasheet LI-ION-BATTERIES <100Wh (EN) [ 284.8 KB ]
pdf Material safety datasheet Hilti Grease (EN) [ 732.3 KB ]
pdf Material safety datasheet Hilti Grease (ES) [ 737.2 KB ]

Features & Applications

Features

  • Powerful, cordless rotary hammer, designed for serial anchor hole drilling in concrete
  • Full compatibility with all Hilti 22V batteries
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Virtually dustless drilling when used with the DRS-6-A dust removal system
  • Quick-change TE-C Click chuck for versatility and ease of use

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Occasional drilling in wood and steel with optional quick-release chuck
  • Screwdriving using the special bit holder with a TE-C (SDS Plus) connection end
  • Drilling in concrete in clean areas using the DRS-6-A (02) integrated dust removal system
  • Light chiseling

Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Product warranty against parts and manufacturing irregularities for 20 years
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Temporary tools for peak times and special applications help to reduce investments.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
More information about LifeTime Services
