TE 70-AVR Rotary hammer

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty concrete drilling and chiseling, with Active Vibration Reduction (AVR)

  • Weight according EPTA-Procedure 01/2003 without battery: 18.3 lb
  • Weight class: 15 lb
  • Single impact energy: 8.5 ft-lbs

Customers also searched for concrete drill rotary hammer hammer drill rotary hammer drill or SDS MAX Hammer Drill.

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
18.3 lb
Weight class
15 lb
Single impact energy
8.5 ft-lbs
Hammer drilling diameter range
15/32 - 5-29/32 in
Optimum Hammer drilling range
25/32 - 1-25/32 in
Hammer drilling RPM
360 rpm
Full hammering frequency
2760 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
9.0 m/s² 2
Rated input power
1800 W
Dimensions (LxWxH)
21.3 x 4.9 x 12 mm
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
105 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Highest productivity for a wide range of drilling and chiseling applications
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Ruggedly built for a long lifetime

Applications

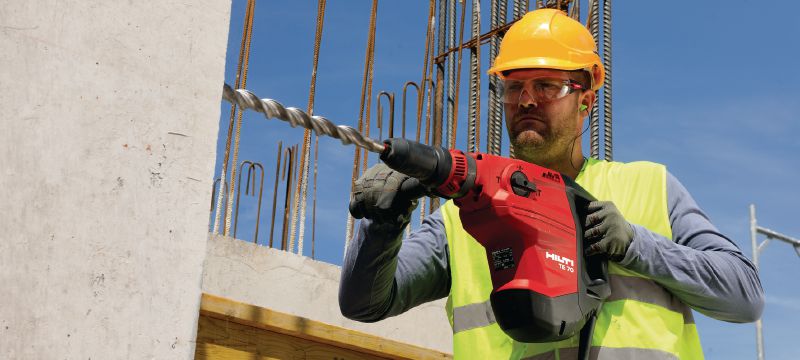

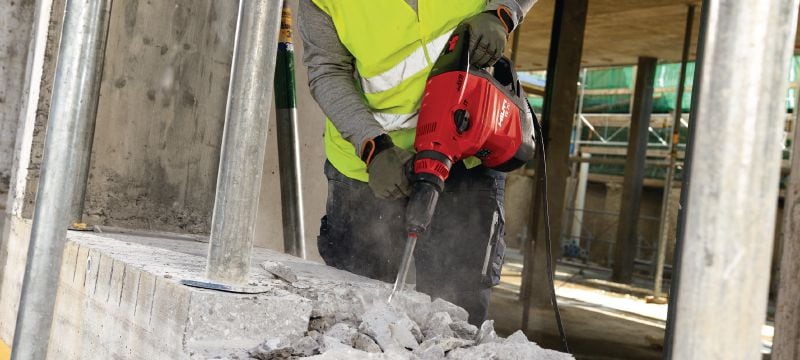

  • Breaching and demolition using pointed and flat chisels
  • Drilling with high torque in wood and steel
  • Hammer drilling in concrete, masonry and natural stone using bits in the 1/2" - 6" diameter range
  • Drilling holes for heavy-duty anchors from 3/4" - 1 3/4" in diameter

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
More information about Fleet Management
