AG 500-20SE Angle grinder

AG 500-20SE + Kwik Lock #3898406

Configurator
Technical Data
Documents
Features & Applications
Related Products

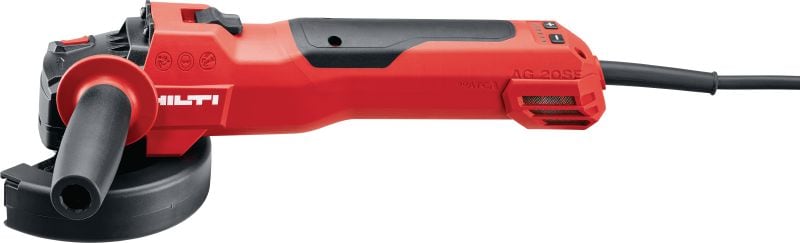

Still life picture of the corded angle grinder AG 20SE
Cropped application picture of the corded angle grinder AG 20SE. Grinding application.
Cropped application picture of the corded angle grinder AG 20SE. Grinding application.
Application picture of the corded angle grinder AG 20SE. Cutting application.
Cropped application picture of the corded angle grinder AG 20SE. Cutting application.
Cropped application picture of the corded angle grinder AG 20SE with dust hood attached. Mineral grinding application.
Cropped application picture of the corded angle grinder AG 20SE with dust hood attached. Mineral grinding application.

Variable speed angle grinder with slide switch for cutting and grinding in metal, concrete, and masonry with discs up to 5”

  • Disc diameter: 127 mm
  • Weight according EPTA-Procedure 01/2003 without battery: 5.3 lb
  • Max. cutting depth: 1.34 in

Customers also searched for 14 amp grinder, 5" grinder, grinder, corded grinder or 5in grinder.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$299.00
$299.00 / 1 Each

Technical Data

Disc diameter
127 mm
Weight according EPTA-Procedure 01/2003 without battery
5.3 lb
Max. cutting depth
1.34 in
No load RPM
gear 1: 3000 rpm; gear 2: 4000 rpm; gear 3: 5000 rpm; gear 4: 6000 rpm; gear 5: 7500 rpm; gear 6: 9400 rpm
Trigger type
Constant on
Disclaimer
Use specific guard depending on selected disc

Documents

pdf Operating Instruction AG 500-20SE (01), English, Spanish, French, Portuguese [ 2.7 MB ]

Features & Applications

Features

  • Upgraded safety features – new 3D Active Torque Control (ATC) for better protection against angle grinder kickback in any direction
  • High-performance cutting and grinding – Hilti Smart Power technology automatically adjusts power output to suit the material, helping to deliver consistent performance and protecting the motor from overload
  • Lower vibration optimized for comfort – non-slip grip area on the back of the tool and soft-grip side handle
  • Powerful brushless motor – 14 amp brushless motor and digital speed dial help you work faster and more efficiently
  • Quick-acting brake stops the disc within a few seconds – ideal when working in cramped conditions

Applications

  • Cutting steel, concrete, and masonry
  • Rough grinding and fine finishing metal, concrete, and masonry
  • Removing coatings on cement and screed
  • Renovating joints
  • Slitting (chasing) using two discs (DC EX 125/5" slitting hood required, available separately)
