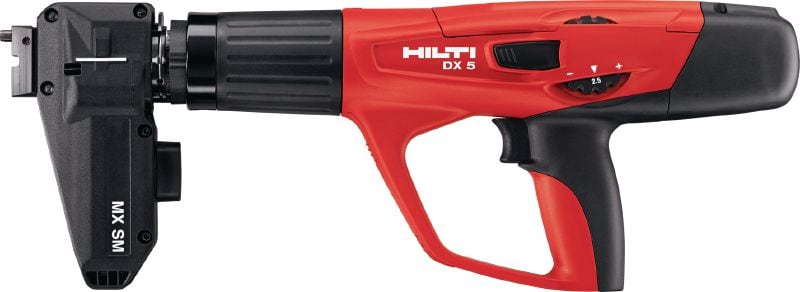

DX 5-SM Powder-actuated tool

Digitally enabled, fully automatic, high productivity, powder-actuated nailer for fastening metal decks

  • Dimensions (LxWxH): 19.2 x 2.8 x 7.1 in
  • Weight: 8.8 lb
  • Fastener Intake: Collated

Technical Data

Dimensions (LxWxH)
19.2 x 2.8 x 7.1 in
Weight
8.8 lb
Fastener Intake
Collated
Fastener length range
0.83 - 0.94 in
Cartridge type
.27 caliber short, 6.8/11 M10
Automatic piston return
Yes
Bluetooth
Yes
Hilti Connect
Yes
Power (max.)
325 J
Power regulation
Yes
Piston type
X-5-460-PSM

Documents

Features & Applications

Features

  • Smart tool that tells you when it needs cleaning or maintenance
  • High productivity: Fully automatic piston return and cartridge transport
  • Features power regulation for optimum fastener driving control
  • Superb ergonomics and design with reduced recoil

Applications

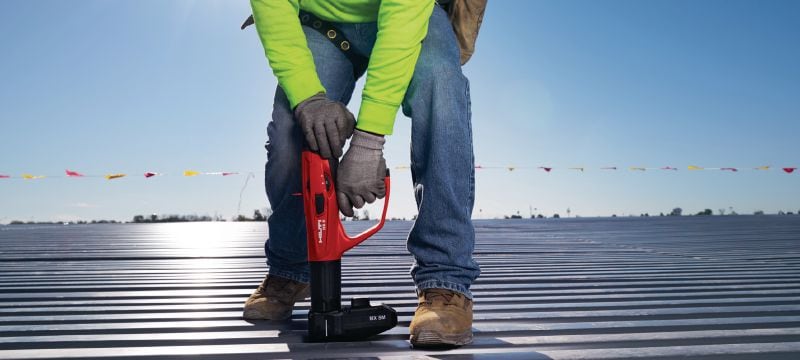

  • Fastening metal roof decks to bar joists with a thickness of 1/8" to 3/8" with X-HSN metal sheet nail for roofing
  • Fastening metal floor decks to bar joists and light gauge steel structures with a thickness of 1/8" to 3/8" with X-HSN metal sheet nail for flooring

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
More information about Fleet Management
