X-HSN 24 Metal deck nails

Configurator
Technical Data
Documents
Features & Applications
Related Products
L063764.tif
Roof deck installation

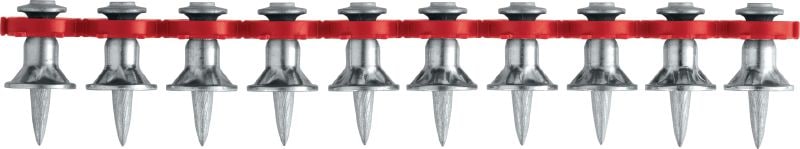

Collated nail for fastening metal decks to bar joists using the DX 9 powder-actuated nailer

  • Base materials: Steel
  • Minimum thickness of base material (steel): 1/8 in
  • Corrosion protection: Galvanized zinc coated <20 µm
ultimate

Customers also searched for decking nail, decking fastener, metal deck fastener, barjoist nail or deck attachment.

Choose options

Fastener shank length
  • 15/16 in
Pack size
  • 1 pc
  • 1000 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $608.00

Technical Data

Base materials
Steel
Minimum thickness of base material (steel)
1/8 in
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.16 in
Washer size
15/32 in
Point type
Ballistic point
Approvals
ABS, COLA, FM, IAPMO, ICC-ES, LR, SDI, UL
For use with (tools)
DX 9
Product Class
Ultimate

Documents

Approval document
Technical information
Brochure
Specification Text
Certificate
CAD/BIM Typicals
Instruction for use
Material safety datasheet
Operating Instruction
pdf FM 3054498 for Hilti steel deck fasteners, English [ 168.7 KB ]
pdf UL R13203 for roof deck fasteners, English [ 64.8 KB ]
pdf SDI DDM03 Appendix VIII with X-HSN 24, English [ 242 KB ]
pdf ICC ESR-2776 for Steel Deck Fasteners and Sidelap Connectors, English [ 1.7 MB ]
pdf ICC ESR-2197 for Steel Deck and Concrete-Filled Deck Diaphragm Attachment, English [ 1 MB ]

Features & Applications

Features

  • A much faster and safer fastening system compared to welding
  • No risk of burn-through – little to no painting re-work needed
  • The unique design helps HSN 24 nails covers its full application range with red cartridges
  • Can be used on epoxy-coated or galvanized joists with little risk of zinc fumes
  • Performs well in inclement weather conditions

Applications

  • Fastening metal roof decks to 1/8" to 3/8" thick bar joists
  • Fastening metal floor decks to 1/8" to 3/8" bar joists and light-gauge steel structures

For approval or certificate information, please see individual items.
