TE 700-AVR SDS-Max demolition hammer

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
48739.tif
48742.tif
TE 700
48743.tif

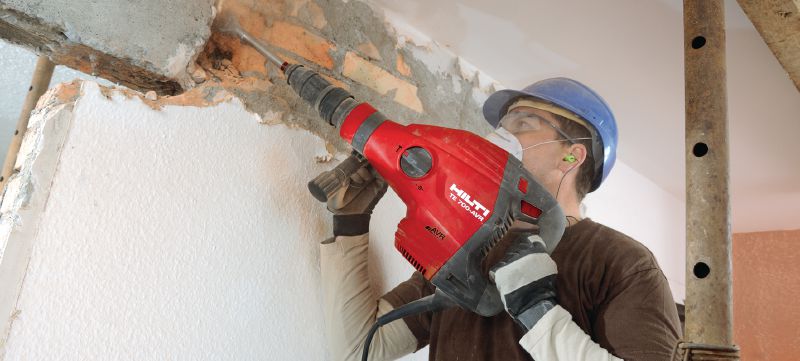

Powerful SDS Max (TE-Y) demolition hammer for heavy-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Weight according EPTA-Procedure 01/2003 without battery: 17.4 lb

Customers also searched for chipper , chipping hammer , hilti chipping hammer , chipping hammer concrete or chipping tool .

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,749.00

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Weight according EPTA-Procedure 01/2003 without battery
17.4 lb
Single impact energy
8.5 ft-lbs
Full hammering frequency
2760 impacts/minute
Max. chiseling performance
73 in³/min
Dimensions (LxWxH)
22.2 x 4.9 x 9.8 in
Triaxial vibration for chiseling into concrete
6.9 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
89 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Documentation
Material safety datasheet
Operating Instruction
pdf OSHA 1926.1153, Section X, English [ 439.2 KB ]

Features & Applications

Features

  • Optimized performance to weight ratio for high productivity during wall demolition applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • The innovative brushless SR motor eliminates the need to change carbon brushes and extends the period between repairs
  • Power reduction button for improved performance on brittle materials

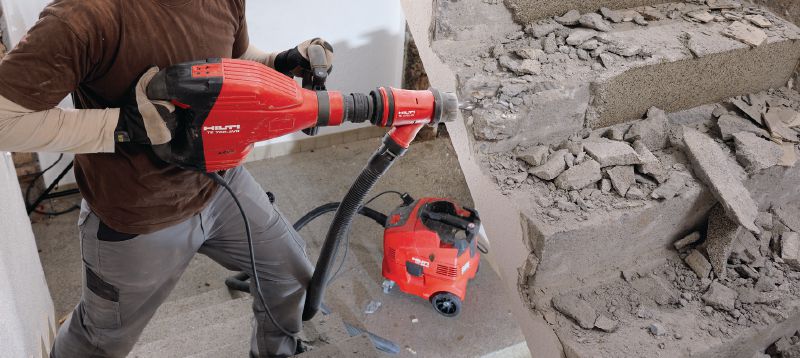

  • The optional DRS-B dust removal system collects up to 95% of dust

Applications

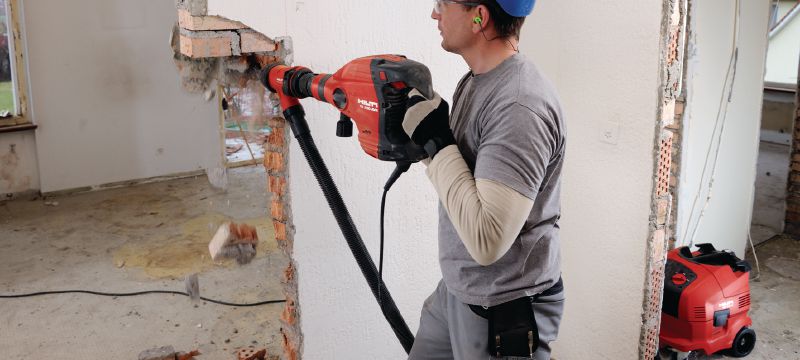

  • Heavy demolition on masonry and brick walls
  • Removing plaster
  • Removing tiles on walls and floors
  • Breaking out window and door openings
  • Bushing applications (i.e. roughening surfaces)

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
More information about Fleet Management
