MP-PS 2-2 Pipe shoe

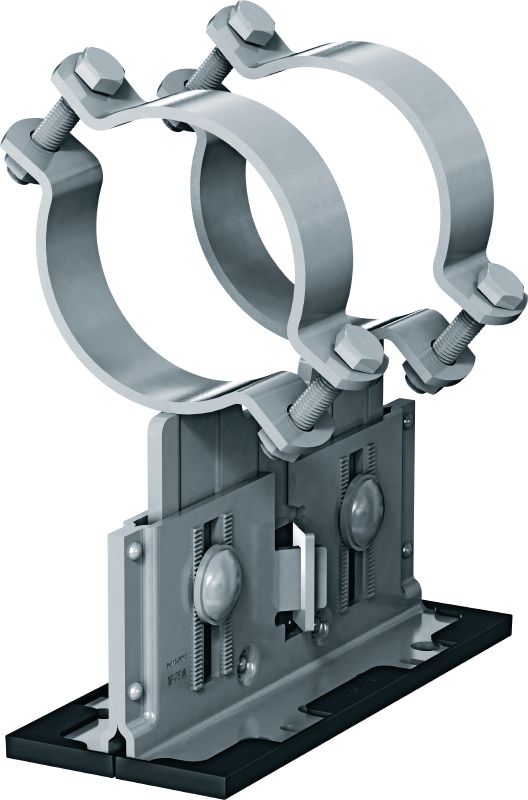

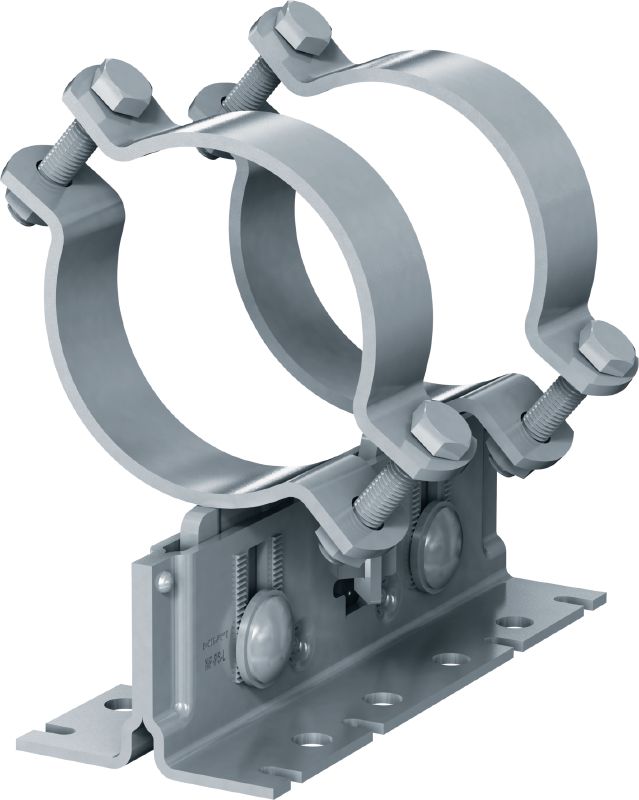

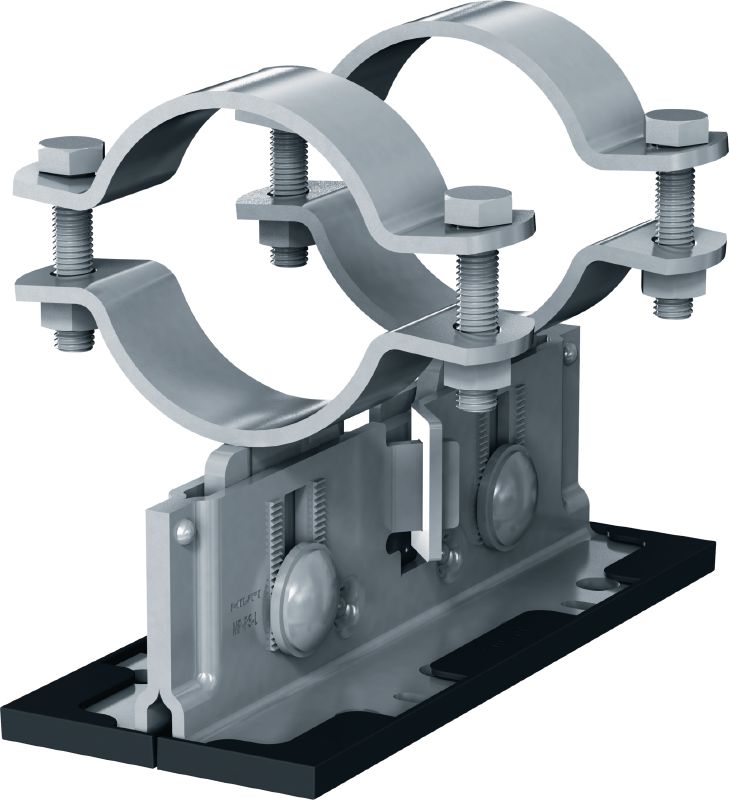

MP-PS L2-2 Double Pipe Shoe Low Version
MP-PS L2-2 Double Pipe Shoe Low Version

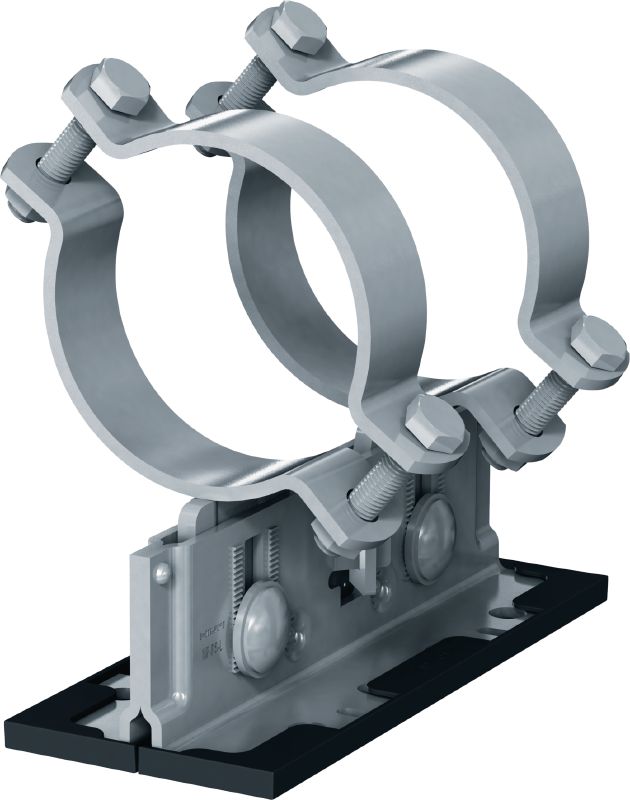

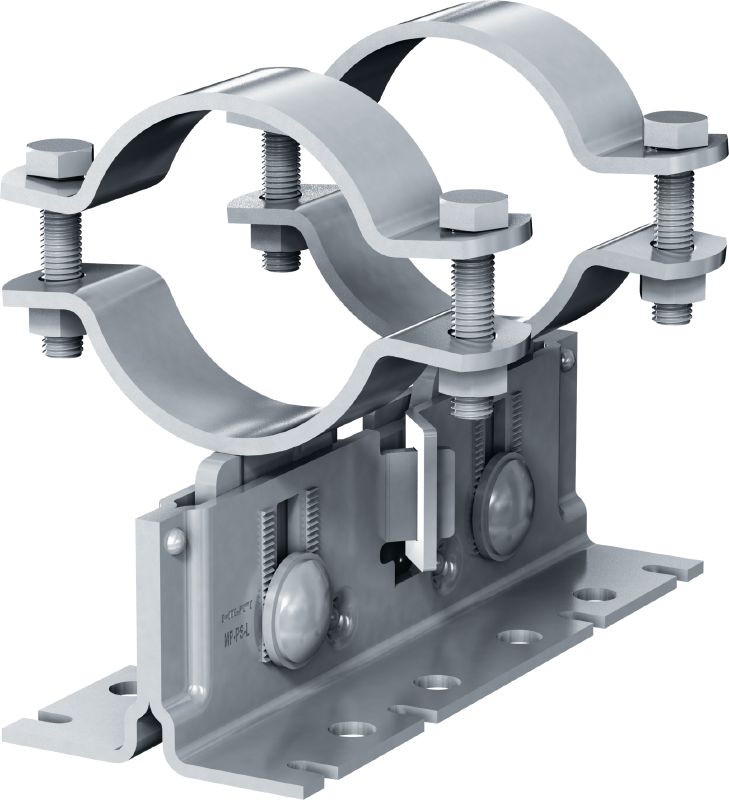

MP-PS L2-2 Double Pipe Shoe Low Version Fixpoint
MP-PS L2-2 Double Pipe Shoe Low Version Fixpoint
MP-PS M2-2 rotated clamp, double pipe shoe, medium version

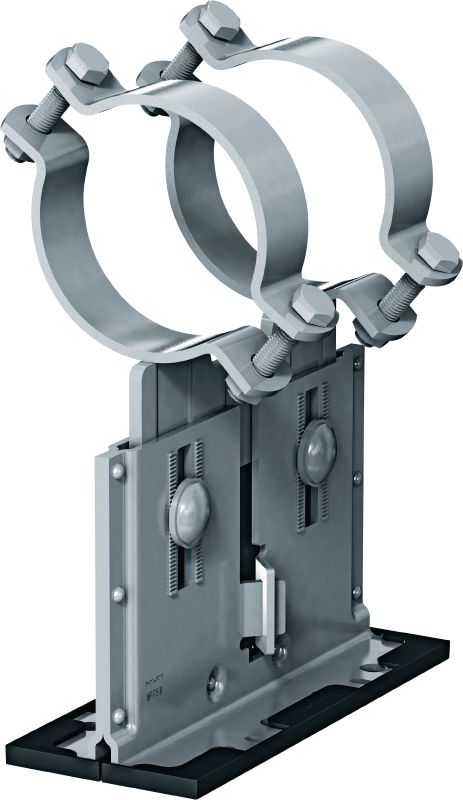

MP-PS H2-2 rotated clamp, double pipe shoe, high version

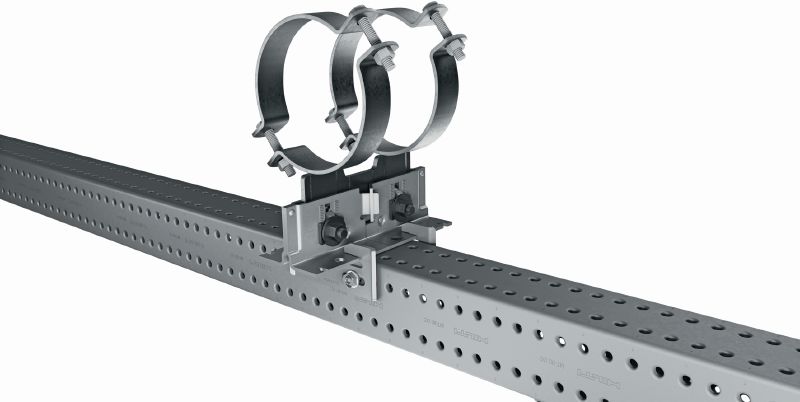

MP-PS L2-2 with plain guide connector on MT Girder
MP-PS L2-2 mounted as fixed point on MT Girder

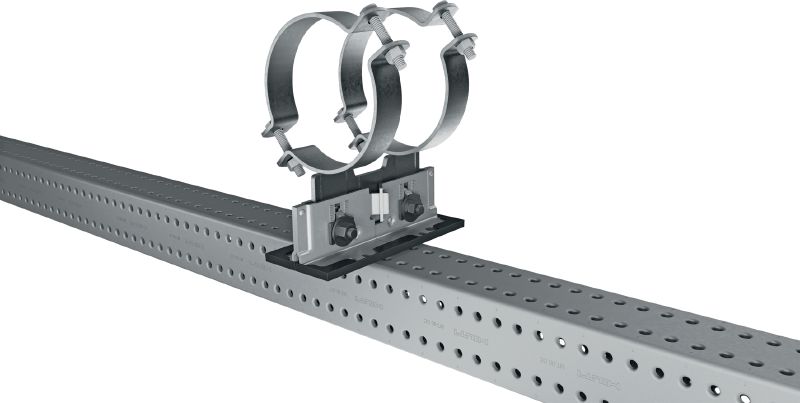

MP-PS L2-2 free-standing on MT Girder

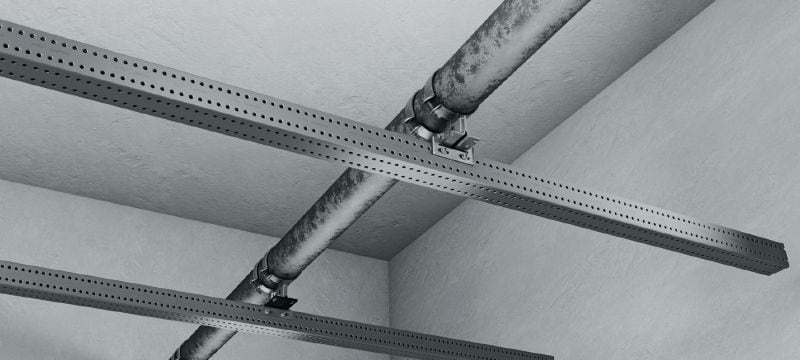

Single pipe run mounted with MP-PS pipe shoe on MT Girder

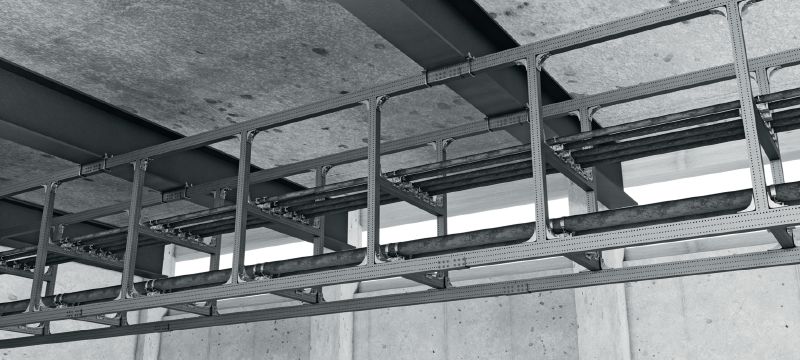

Installed MT-System pipe rack MP-PS Pipe Shoes
MP-PS L2-2 Double Pipe Shoe Low Version
MP-PS L2-2 Double Pipe Shoe Low Version
MP-PS L2-2 Double Pipe Shoe Low Version Fixpoint
MP-PS L2-2 Double Pipe Shoe Low Version Fixpoint
MP-PS M2-2 rotated clamp, double pipe shoe, medium version
MP-PS H2-2 rotated clamp, double pipe shoe, high version
MP-PS L2-2 with plain guide connector on MT Girder
MP-PS L2-2 mounted as fixed point on MT Girder
MP-PS L2-2 free-standing on MT Girder
Single pipe run mounted with MP-PS pipe shoe on MT Girder
Installed MT-System pipe rack MP-PS Pipe Shoes

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-328 mm (1/2" to 12")

  • Fire resistance ( Yes/No): No
  • Temperature resistance: -4 - 572 °F
  • Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8

Choose options

Clamping Range - D
  • 0.83 - 1.02 in
  • 1.02 - 1.22 in
  • 1.26 - 1.46 in
  • 1.5 - 1.73 in
  • 1.77 - 2.01 in
  • 2.05 - 2.28 in
  • 2.32 - 2.56 in
  • 2.68 - 2.91 in
  • 2.95 - 3.19 in
  • 3.46 - 3.7 in
  • 3.94 - 4.25 in
  • 4.33 - 4.65 in
  • 4.92 - 5.24 in
  • 5.35 - 5.67 in
  • 5.98 - 6.38 in
  • 6.42 - 6.81 in
  • 7.56 - 7.95 in
  • 8.54 - 8.94 in
  • 9.61 - 10 in
  • 10.51 - 10.91 in
  • 12.52 - 12.91 in
Height above ground to base of pipe
  • 3-1/2 - 4-9/16 in
  • 4-9/16 - 6-11/16 in
  • 6-11/16 - 8-3/4 in
Nominal pipe size (imperial)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/4 in
  • 1-1/2 in
  • 2 in
  • 2-1/2 in
  • 3 in
  • 3-1/2 in
  • 4 in
  • 5 in
  • 6 in
  • 7 in
  • 8 in
  • 10 in
  • 12 in
Nominal pipe size
  • 15 mm
  • 20 mm
  • 25 mm
  • 32 mm
  • 40 mm
  • 50 mm
  • 65 mm
  • 80 mm
  • 100 mm
  • 125 mm
  • 150 mm
  • 200 mm
  • 250 mm
  • 300 mm
Pack size
  • 2 pc
  • 4 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $335.00

Technical Data

Fire resistance ( Yes/No)
No
Temperature resistance
-4 - 572 °F
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
36.88 ft-lbf
Length
10.1 in
Additional product information
Friction coefficient - Sliding plate (PA66-GF30) on Zinc-Magnesium surface: 0.146, Friction coefficient - Sliding plate (PA66-GF30) on Hot Dip Galvanized surface: 0.129, PA66-GF30 vs Zn: 0.177

Documents

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
  • Wider clamping range – suitable for various different pipes with or without additional inlays

Applications

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)

For approval or certificate information, please see individual items.
