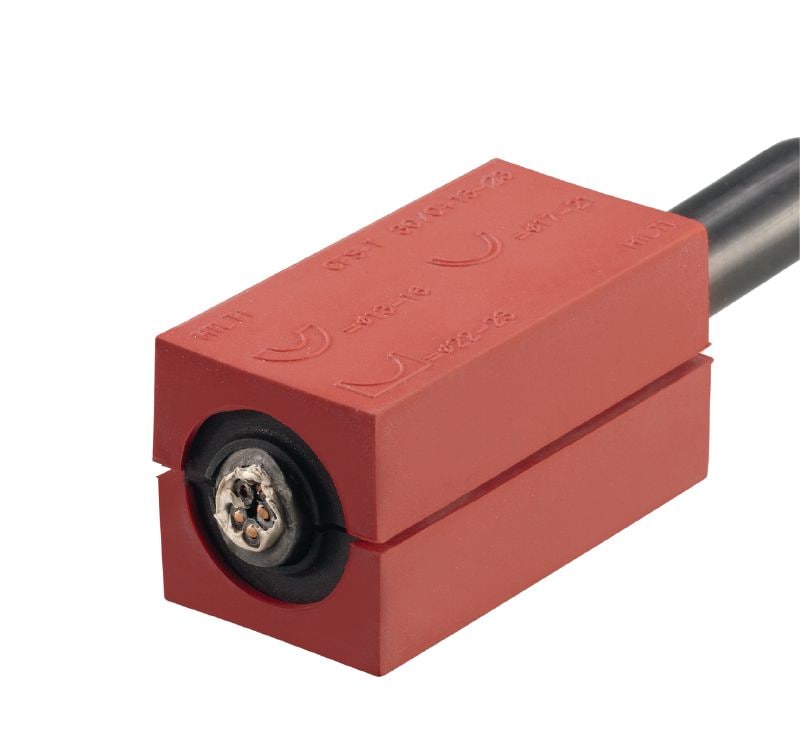

CFS-T cable module
Modules to seal cables/pipes within a transit frame when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Temperature resistance range: -40 - 122 °F
- Free from: Halogen (halogen content <= 0.1 weight %)
Customers also searched for mass cable transit, cable transit, MCT, multi cable transit system or cable seal.
Choose options
Cable diameter - range
- 3 - 9 mm
- 5 - 12 mm
- 13 - 23 mm
- 23 - 33 mm
- 34 - 51 mm
- 52 - 78 mm
- 79 - 99 mm
Module Height
- 15 mm
- 20 mm
- 30 mm
- 40 mm
- 60 mm
- 90 mm
- 120 mm
Base materials
- Concrete, Steel
Pack size
- 1 pc
- 4 pc
- 9 pc
- 16 pc
- 36 pc
- 64 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $169.00
Technical Data
Approvals
UL
Temperature resistance range
-40 - 122 °F
Free from
Halogen (halogen content <= 0.1 weight %)
Reaction to fire class (EN 13501-1)
E
Documents
Features & Applications
Features
- Simplified inventory management – only 7 different modules are needed to cover all cable diameters from 3 to 99 mm

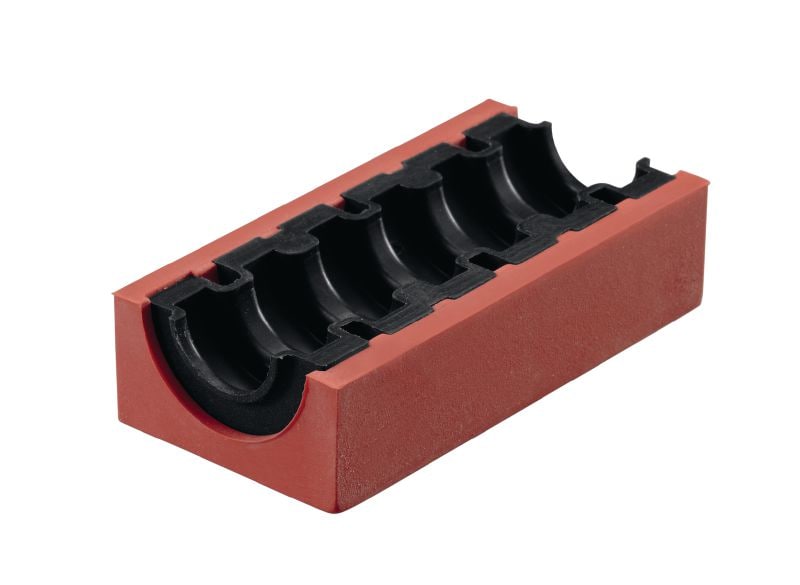

- Versatile adapter modules for quicker, easier accommodation of each cable diameter
- Time-saving installation thanks to module interlinking, especially where cables run vertically through deck/floor penetrations
- Color-coded adapter system to make inspection easier and more reliable

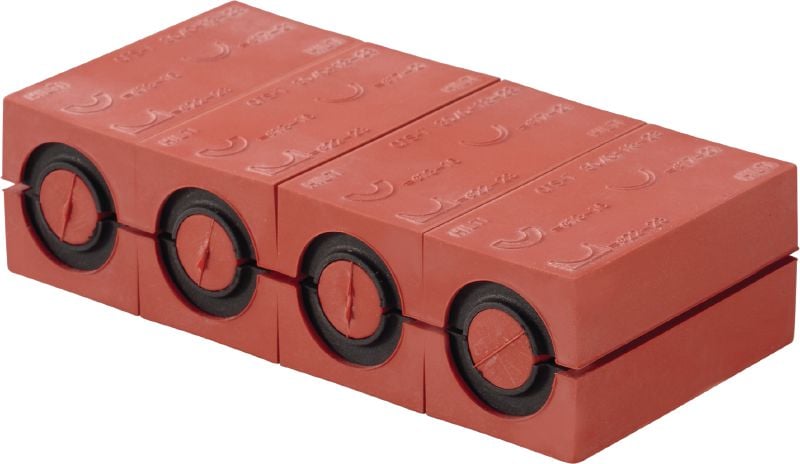

- Cable modules (up to size 40 mm) are supplied in a joined-together state and can be easily separated for individual use.
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, datacenter, downstream (oil and gas), petrochem, control rooms, healthcare, emergency power and transmission towers
For approval or certificate information, please see individual items.
Related Products
Software to assist the planning of sealing and fire protection around cables and pipes, in addition to a 3D PDMS Library
Module squeezer to temporarily pre-compress cable modules, creating space to quickly and easily insert a compression wedge
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
Plug seal for fitting modules to seal multiple cables/pipes in round penetrations
