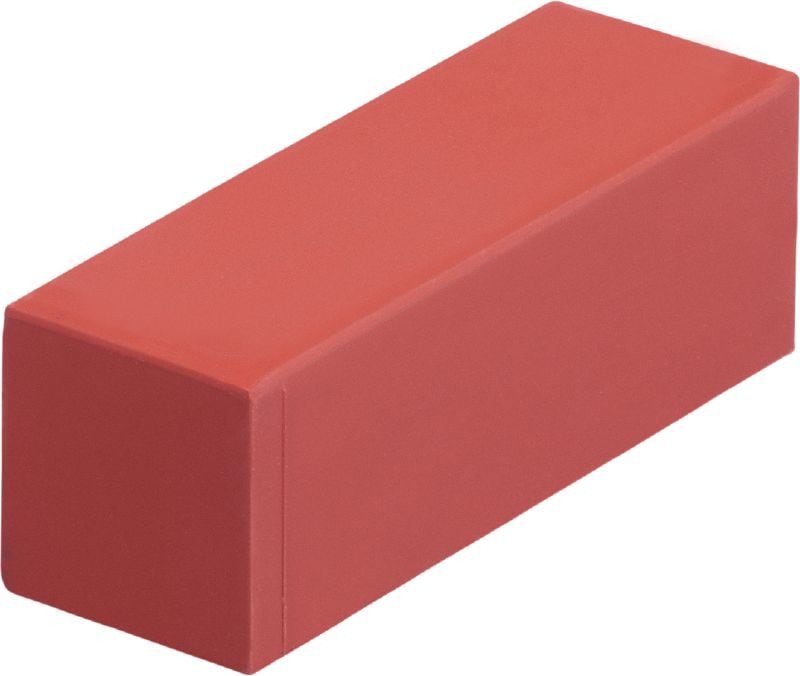

CFS-T FB filler module
Filler modules for sealing unused space within transit frames when high water- and gas-tightness and fire-resistance are required
- Approvals: UL
- Temperature resistance range: -40 - 122 °F
- Free from: Halogen (halogen content <= 0.1 weight %)
Customers also searched for mass cable transit, cable transit, MCT, multi cable transit system or cable seal.
Choose options
Module Height
- 10 mm
- 30 mm
- 40 mm
Base materials
- Concrete, Steel
Pack size
- 9 pc
- 16 pc
- 18 pc
- 24 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $88.50
Technical Data
Approvals
UL
Temperature resistance range
-40 - 122 °F
Free from
Halogen (halogen content <= 0.1 weight %)
Reaction to fire class (EN 13501-1)
E
Documents
Features & Applications
Features
- Placeholder for future cable installations

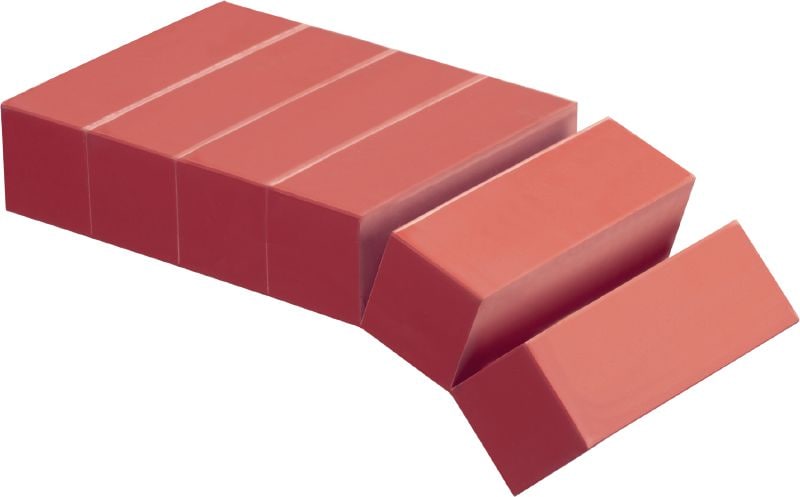

- Filler modules are supplied as one perforated block and can be easily separated for individual use
Applications
- Penetrations in shipbuilding and offshore applications
- Penetrations in wind power structures
- Telecom, Datacenter, Downstream (oil and gas), Petro-Chem, Control Rooms, Healthcare, Emergency Power, Transmission Towers
For approval or certificate information, please see individual items.
