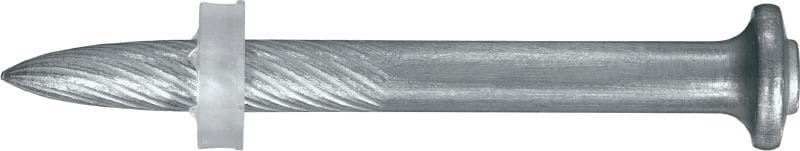

X-U P8 Universal nails
Single nail for fastening to concrete and steel using powder-actuated nailers
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 1/4 in
premium
Choose options
Fastener shank length
- 5/8 in
- 3/4 in
- 7/8 in
- 1 in
- 1-1/16 in
- 1-1/4 in
- 1-5/16 in
- 1-7/16 in
- 1-1/2 in
- 1-9/16 in
- 1-5/8 in
- 1-7/8 in
- 2 in
- 2-1/16 in
- 2-1/4 in
- 2-7/16 in
- 2-1/2 in
- 2-13/16 in
Pack size
- 1 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From $85.50
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
1/4 in
Corrosion protection
Galvanized zinc coated <20 µm
Environmental Conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
0.16 in
Washer size
5/16 in
Point type
Ballistic point, knurled
Approvals
ABS, COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 2
Product Class
Premium
Documents
Features & Applications
Features
- Galvanized nails for fastenings on concrete or steel
- Knurled point for higher application limits on steel and suitability for use on hard concrete
- High application limits, high ultimate tensile loads
- One nail for almost any application
- Uniquely shaped ballistic point for optimum driving characteristics
Applications
- Fastening to concrete and steel
- Fastening drywall track to concrete
- Fastening wall ties
- Fastening wood to concrete
- Setting up formwork and safety barriers
For approval or certificate information, please see individual items.
