DX 6 MX Powder-actuated nailer with magazine

Configurator
Technical Data
Documents
Features & Applications
Related Products
Fully automatic Powder-actuated tool with wide range power regulation
installing kicker board with powder-actuated tool DX 6 MX and X-CT formwork nail
Attaching wood to concrete with powder-actuated tool DX 6 MX and X-U universal nail or X-P concrete nail
installing formwork spacer with powder-actuated tool DX 6 MX and X-C concrete nail
Cropped image of X-X nail being fastened with the DX 6

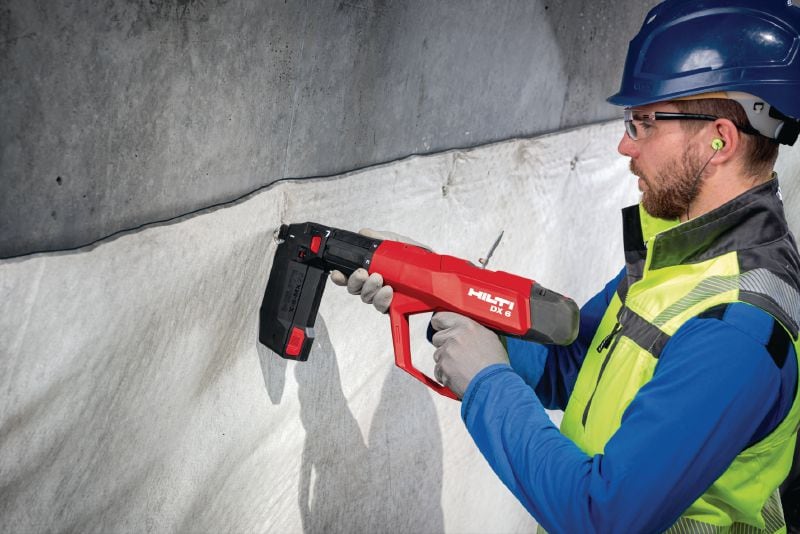

Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening drainage foil, and X-SW soft washer
Installing deflection head with powder-actuated tool DX 6 MX
DX 6 MX application on a jobsite (HNA)
DX 6 MX application on a jobsite. Worker on a lift installing deflection clips with X-U 16 pins using a tether. (HNA)

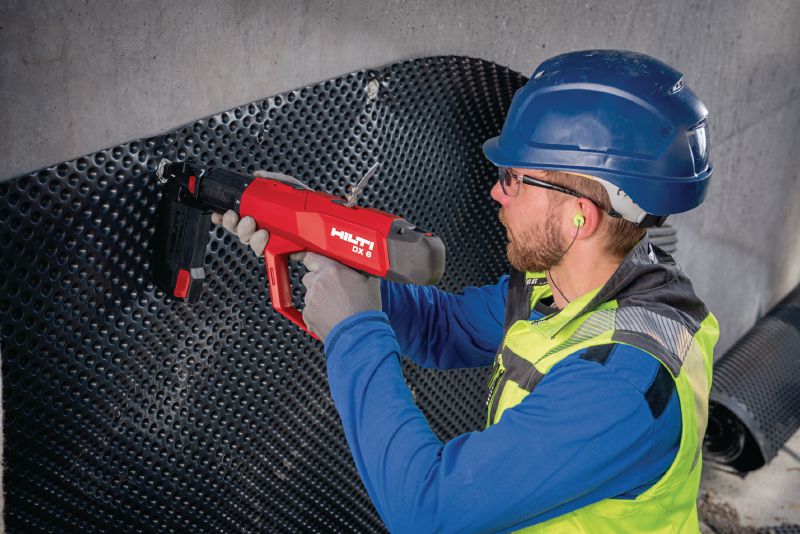

Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening bentonite membrane and X-SW soft washer

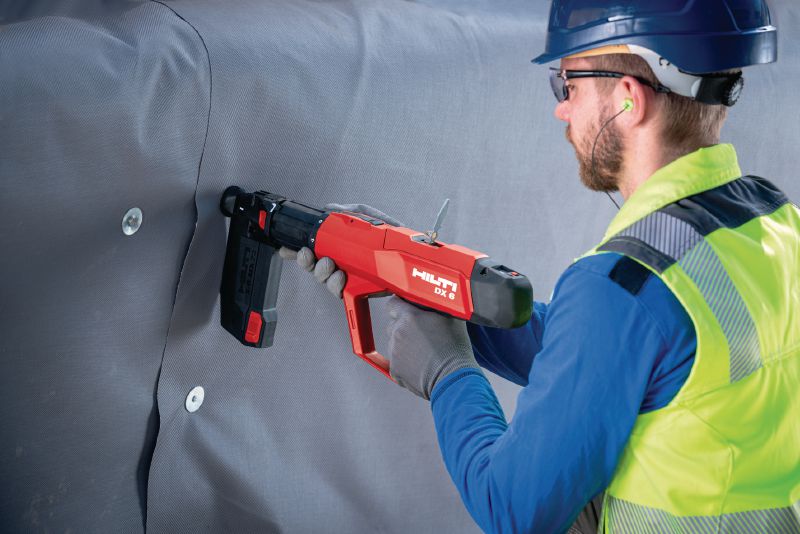

Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening membrane and steel washer
Installing wood to steel with powder-actuated tool DX 6 MX and X-U universal nail
Installing injection hose with powder-actuated tool DX 6 MX and X-FB element
Installing drywall track with powder-actuated tool DX 6 MX and X-C MX.
Fastening cable conduit with X-FB and powder-actuated tool DX 6 MX

Fully automatic powder-actuated nailer with magazine for fastening collated nails

  • Dimensions (LxWxH): 19.1 x 2.7 x 7.5 in
  • Weight: 8 lb
  • Fastener Intake: Collated

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,949.00

Technical Data

Dimensions (LxWxH)
19.1 x 2.7 x 7.5 in
Weight
8 lb
Fastener Intake
Collated
Fastener length range
0.51 - 2.83 in
Automatic piston return
Yes
Bluetooth
No
Hilti Connect
No
Power (max.)
335 J
Power regulation
Yes
Piston type
X-6-5-P8

Documents

Technical information
Material safety datasheet
Operating Instruction
Sustainability Documentation
pdf DX 6 - Accessories and consumables compatibility, English [ 1.6 MB ]

Features & Applications

Features

  • Nail magazine included – 10 fasteners can be driven in quick succession before reloading
  • One-step energy level setting – expanded on-tool power adjustment means you can use a single cartridge color for many fastenings
  • Higher productivity – automatic piston return and cartridge advancement equip you to work up to 5 times faster than alternative fastening methods
  • Easy to operate – precise control helps to deliver consistent, more accurate fastening
  • Easier to maintain – bayonet mount to simplify on-site cleaning and servicing

Applications

  • Fastening wood and metal sheet to concrete, sand-lime block masonry or steel
  • Fastening 2x4s to concrete
  • Attaching drainage foils and membranes to concrete or CMU block
  • Fastening perimeter wall track, deflection or slip clips to concrete and steel
  • Installing Hilti formstop elements on concrete
