X-U MX Steel/concrete nails (collated)

Powder_actuated_tool_DX_5_MX,_Building_&_Conctruction,_Formstop

installing formwork spacer with powder-actuated tool DX 6 MX and X-C concrete nail

Powder actuated tool DX 5 MX, Building & Construction, kickerboard, wood to concrete

installing kicker board with powder-actuated tool DX 6 MX and X-CT formwork nail

Attaching wood to concrete with powder-actuated tool DX 6 MX and X-U universal nail or X-P concrete nail

DX_5_MX,_deflection_head,_track_fastening_to_ceiling,_interior_finishing,_X-U_concrete_nail

Installing deflection head with powder-actuated tool DX 6 MX

Powder_actuated_tool_DX_5_MX,_Interior_Finishig,_Drywall

Installing drywall track with powder-actuated tool DX 6 MX and X-C MX.

Powder_actuated_tool_DX_5_MX,_Building_&_Construction,_wood_to_concrete

Application picture of DX 6 MX with 6.8/11 M10 cartridges, fastening bentonite membrane and X-SW soft washer

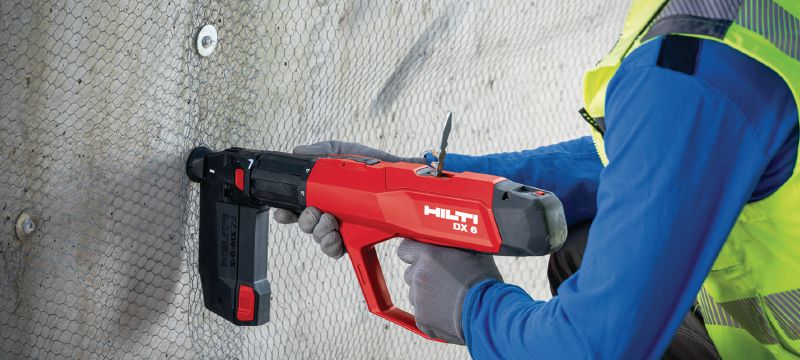

Application picture of DX 6 MX, 6.8/11 M10 with cartridges, fastening wire mesh, and steel washer

Installing wood to steel with powder-actuated tool DX 6 MX and X-U universal nail

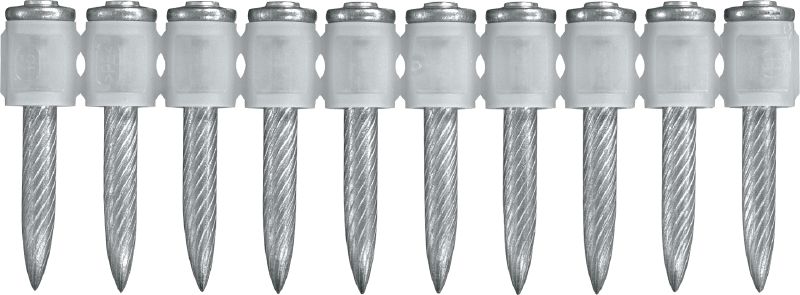

High-performance collated nails for fastening to concrete and steel using powder-actuated tools

Base materials: Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete): 80 mm
Minimum thickness of base material (steel): 1/4 in

premium

Technical Data

Base materials

Concrete (soft), Concrete (tough), Steel

Minimum thickness of base material (concrete)

80 mm

Minimum thickness of base material (steel)

1/4 in

Corrosion protection

Galvanized zinc coated <20 µm

Environmental Conditions

Dry indoor

Material

Carbon steel

Fastener shank diameter

0.16 in

Point type

Ballistic point, knurled

Approvals

COLA, DIBt, IBMB, ICC-ES, LR

For use with (tools)

DX 5, DX 6

Product Class

Premium

Documents

Features & Applications

Features

Galvanized nails for fastenings on concrete or steel
Higher application limits, higher ultimate tensile loads
Available in lengths up to 72 mm
Knurled point for increased performance on high-strength steel and hard concrete
Strips of 10 collated nails – for extremely high productivity and easier fastener loading

Applications

Fastening to concrete or steel
Fastening drywall track to concrete
Fastening wall ties
Fastening wood to concrete
Setting up formwork and safety barriers

For approval or certificate information, please see individual items.
