HSL4-B Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products

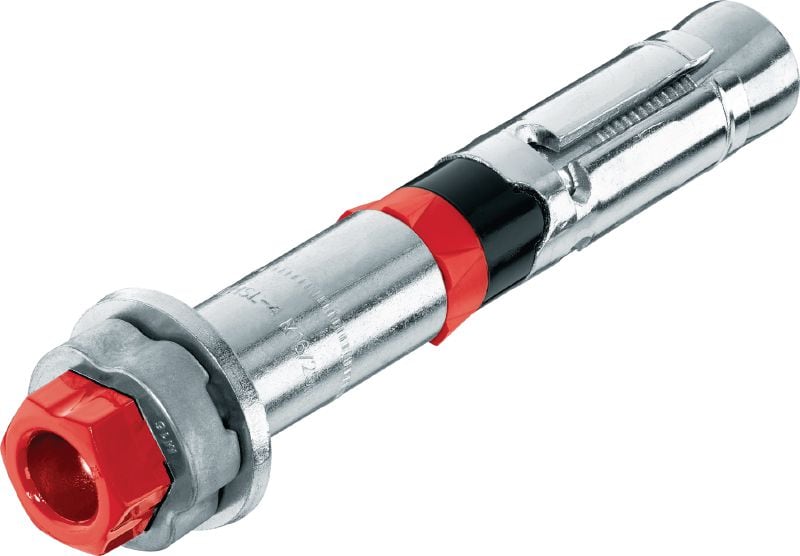

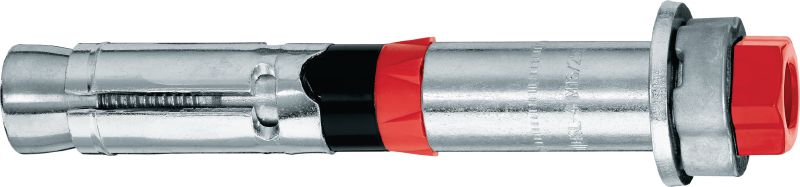

Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut)
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut)
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut),
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut),
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut),
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut),
Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel, torque limitation nut),

Ultimate-performance heavy-duty torque-controlled wedge anchor with approvals for concrete (carbon steel)

  • Material, corrosion: Carbon steel, zinc-plated, Zinc plated (min. 5 microns)

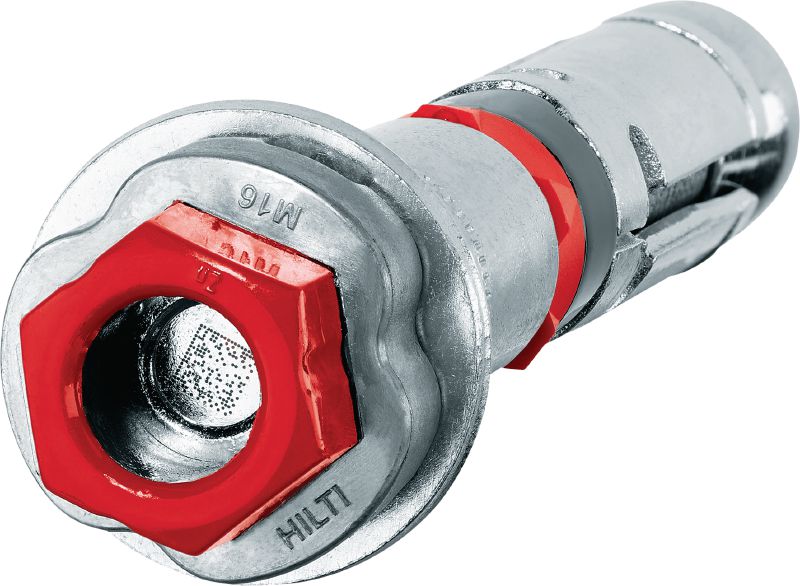

  • Head configuration: Safety cap
  • Approvals / Test reports: ICC-ES report (concrete), LABC, Seismic

Customers also searched for HSL4, HSL4-B, HSL4B or HSL-4-B.

Choose options

Anchor size - D
  • M12
  • M16
  • M20
  • M24
Anchor length - L
  • 121 mm
  • 141 mm
  • 151 mm
  • 166 mm
  • 198 mm
  • 223 mm
Pack size
  • 4 pc
  • 6 pc
  • 10 pc
  • 20 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $597.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated, Zinc plated (min. 5 microns)
Head configuration
Safety cap
Approvals / Test reports
ICC-ES report (concrete), LABC, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS Software
Yes
Environmental conditions
Dry indoor

Documents

Approval document
Technical information
Operating Instruction
pdf ICC-ES Evaluation Report, ESR-4386 HSL4, Concrete, English [ 1.1 MB ]
pdf ICC-ESR 4386 HSL-4 Heavy Duty Expansion Anchor for Cracked and Uncracked Concrete [ 1.1 MB ]
pdf ACI-349 Approval for HSL-4 Heavy-Duty Expansion Anchor [ 560.7 KB ]

Features & Applications

Features

  • High tensile and shear load capacity
  • Force-controlled expansion which allows follow-up expansion

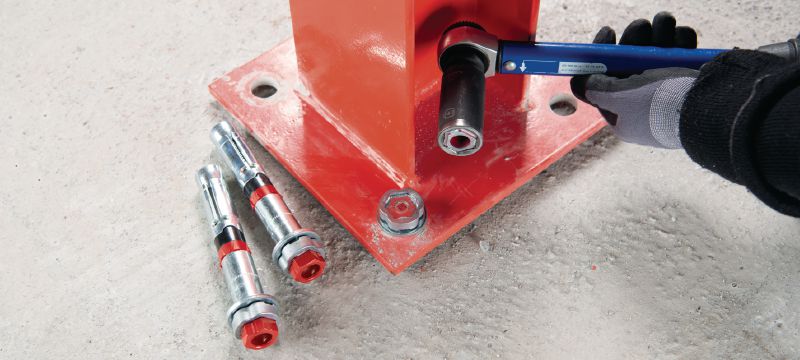

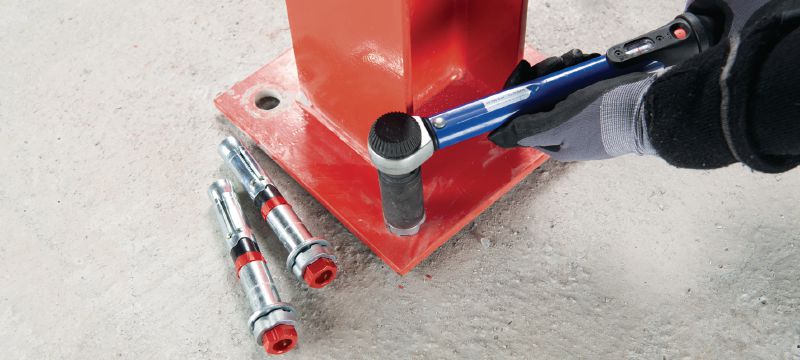

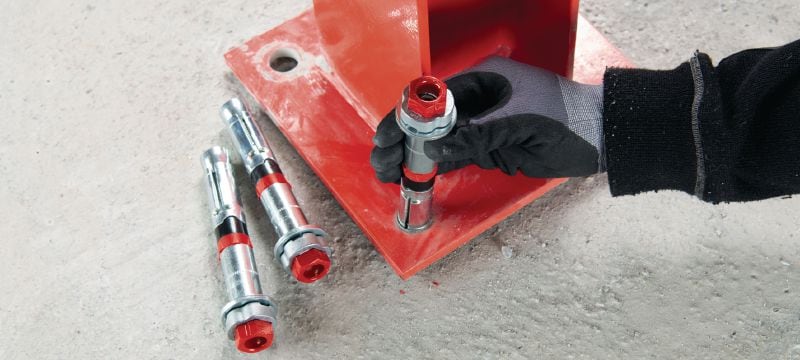

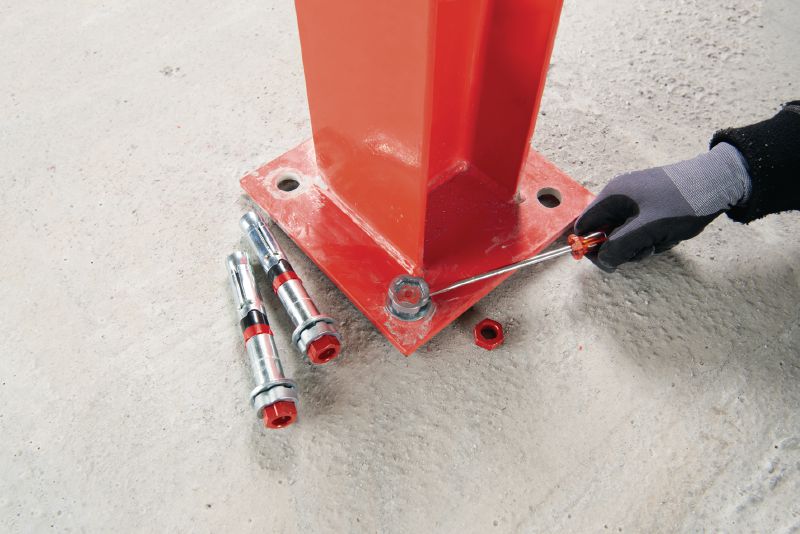

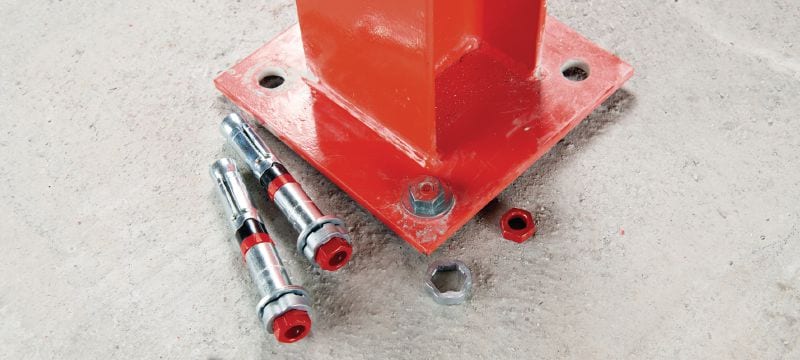

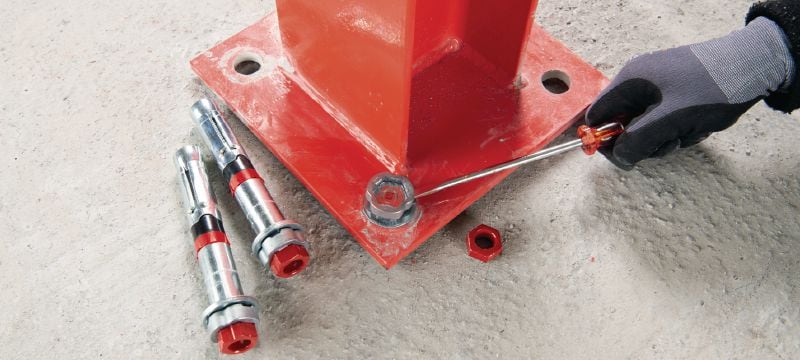

  • Special safety cap helps ensure proper installation torque is applied even if not using a calibrated torque wrench
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked and uncracked concrete and seismic

Applications

  • Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants

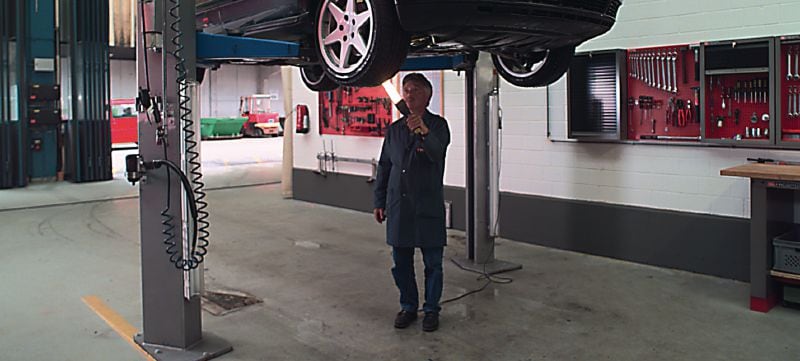

  • Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
