Nuron

SM 60-22 Cordless miter saw

Cordl. miter saw SM 60-22 box #2390415

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services
Still life picture of the miter saw SM 60-22 with dust bag and circular saw blade.

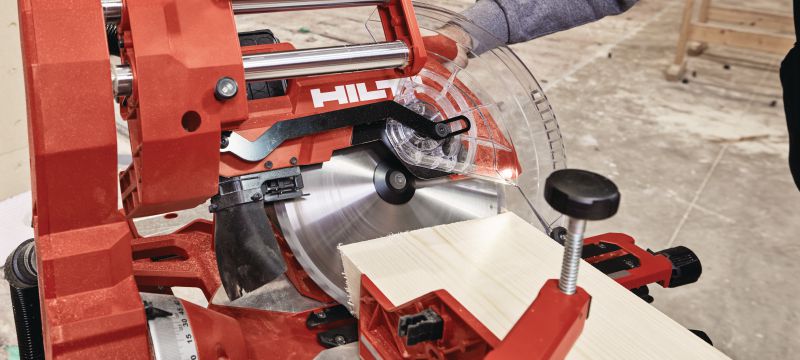

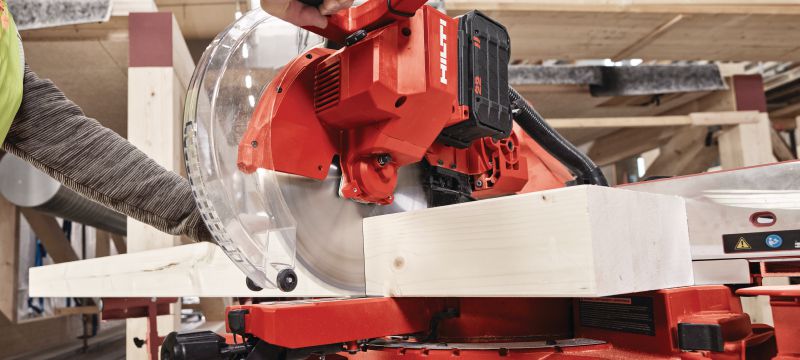

Application picture of the cordless mitter saw SM 60-22. Wood cutting application.
Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.
Application picture of the cordless mitter saw SM 60-22. Cutting aluminum.

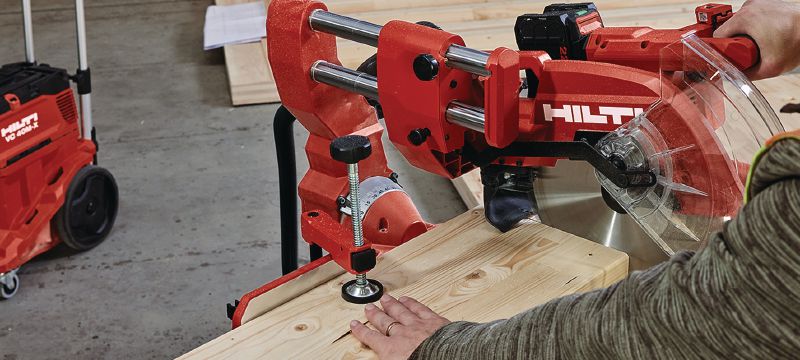

Application picture of the cordless mitter saw SM 60-22. Wood cutting application. Compound cut.
Cropped image of application picture of the cordless miter saw SM 60-22 attached to the cordless vacuum cleaner VC 4X-22. Wood cutting application. Application without gloves.

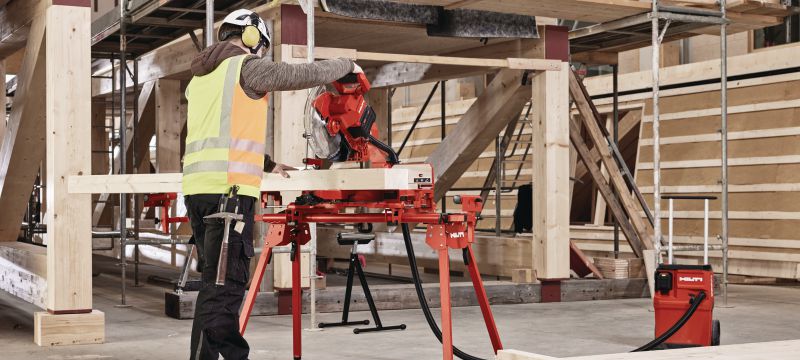

Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law
Cropped application picture of a worker is using a SM 60-22 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law

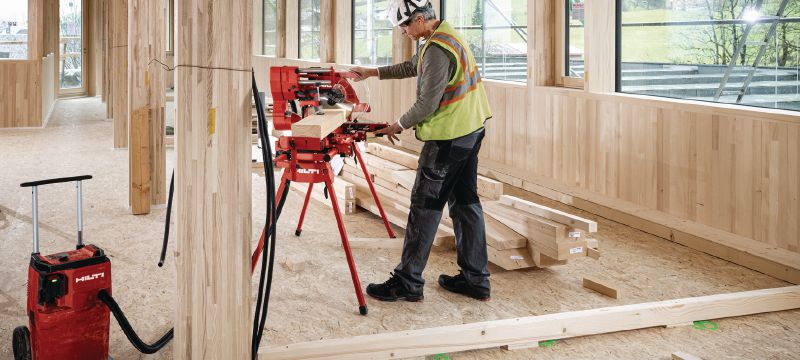

A man worker is using the SM 60-22 with a VC 4MX-22 & T15 on an interior wood jobsite to cut a wood plank disclaimer: this picture is without glove due to German rotative tool law

Dual-bevel sliding compound miter saw with a cross cut capacity up to 100x355mm│4”x 13-3/4" (Nuron battery platform)

  • Blade diameter: 12 in
  • Base material: Wood, Plastic
  • No load RPM: gear 1: 4300 rpm

Customers also searched for Miter Saw, Chop Saw, Compound Miter Saw or Wood Saw.

Customize your kit

Tool Body
Tool body with cardboard box Includes: 1x SM 60-22 Clamp, 1x SCBW WU SPX 12” Circ. saw blade, 1x SM 60-22 Dust bag
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$1,007.00

Technical Data

Blade diameter
12 in
Base material
Wood, Plastic
No load RPM
gear 1: 4300 rpm
Guiding rail compatibility
No
Max. bevel angle
48 °
Max. miter angle
60 °

Documents

pdf Operating Instruction SM 60-22 01, English, Spanish, French, Portuguese, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, Estonian, Finnish, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 11.3 MB ]

Features & Applications

Features

  • Precision cutting – miter (≤ 60° right ≤ 52° left) and bevel (up to 48°) adjusts in both directions for smooth compound cuts and accurate straight cuts throughout the saw’s lifetime
  • Variable speed control – 6 speeds (2000-4300 RPM) allow you to match blade speed with material to optimize cutting quality, performance and battery life when paired with our blades
  • Ergonomic and efficient – forward-sliding rail saves space while front-facing bevel adjustments help streamline your workflow
  • Integrated LED shadow line – line up your workpiece for faster and more accurate cuts, even in low-light conditions
  • Safer and cleaner – fast blade brake and effective dust removal for a safer and cleaner working environment

Applications

  • Commercial wood framing, especially precise, serial cuts in beams, structural elements and temporary supports
  • Clean cuts for concrete formwork such as tilt walls and architectural concrete
  • Bevel and miter cuts for case work, mill work and interior woodwork such as cabinets, molding and trim
  • Cutting aluminum extrusions on-site for building envelope applications
  • Straight cuts in PVC, ABS, and occasional cuts in aluminum and conduit for flush connections in plumbing and electrical installations
