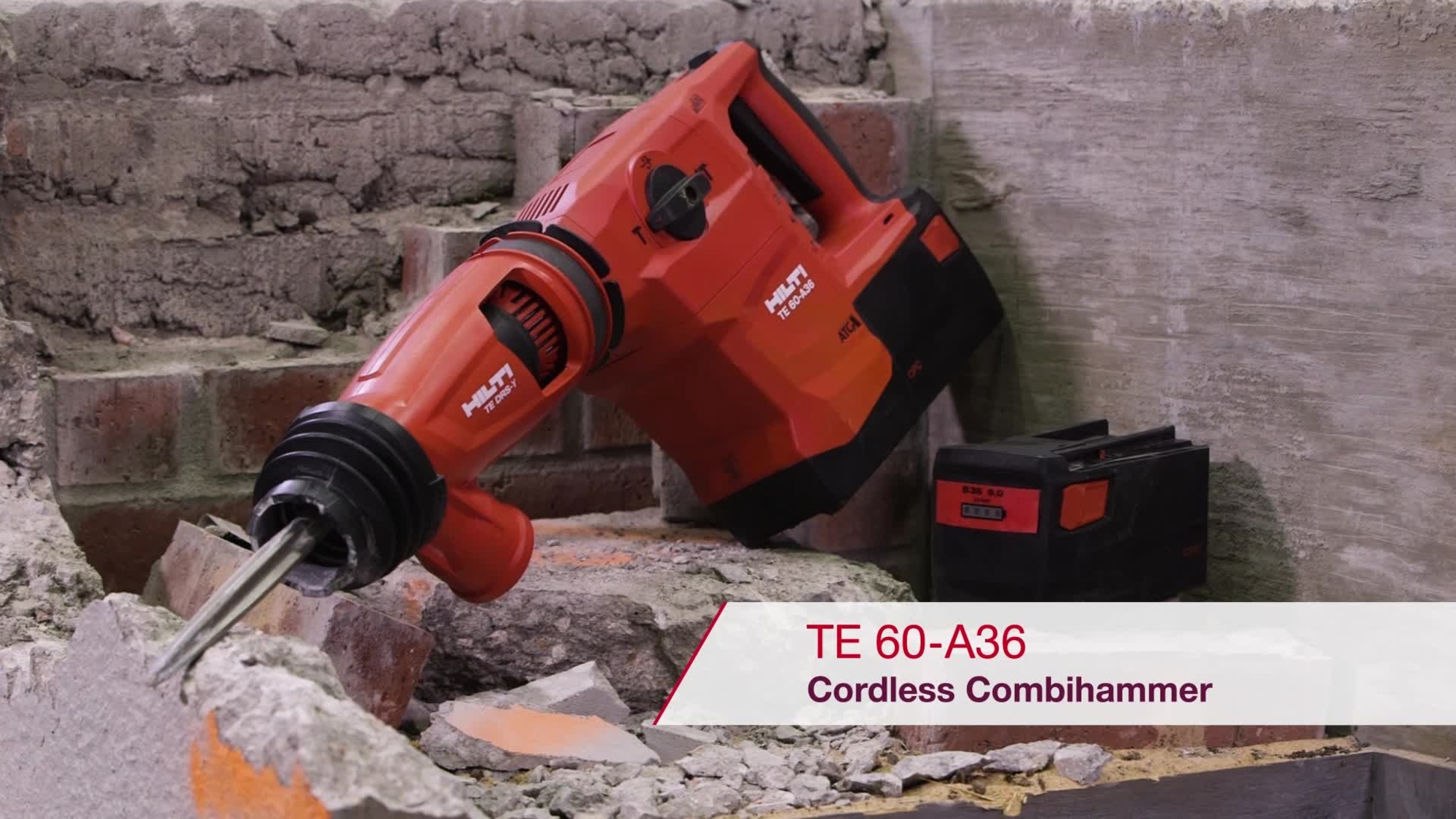

TE 60-A36 Cordless rotary hammer

Cordless combihammer TE 60-A36

SDS-Max Cordless Combihammer
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete
High-performance cordless SDS-max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete

High-performance cordless SDS Max combihammer with Active Vibration Reduction and Active Torque Control for heavy-duty drilling and chiseling in concrete

  • Weight according EPTA-Procedure 01/2003 without battery: 17.9 lb
  • Optimum Hammer drilling range: 23/32 - 1-9/16 in
  • Hammer drilling diameter range: 15/32 - 1-9/16 in

Customers also searched for concrete drill , rotary hammer , hammer drill , cordless hammer drill or rotary hammer drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$700.48
$700.48
/
1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
17.9 lb
Optimum Hammer drilling range
23/32 - 1-9/16 in
Hammer drilling diameter range
15/32 - 1-9/16 in
Rated voltage
36 V
Single impact energy
6 ft-lbs
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Power reduction
Triaxial vibration for chiseling into concrete
8.6 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
101 dB (A) 2
A-weighted emission sound power level
109 dB (A) 3
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 732.3 KB ]
pdf Material safety datasheet Hilti Grease (ES) [ 737.2 KB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Brushless motor for exceptionally high performance and superior system efficiency
  • High versatility for a wide range of drilling and chiseling applications
  • Optional DRS-Y dust removal system collects up to 95% of dust

Applications

  • Medium-duty demolition work
  • Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
  • Driving ground rods and metal stake for formwork
  • Digging and tamping in narrow spaces

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
