TE 60-ATC-AVR Rotary hammer

Corded Rotary Hammer TE 60-ATC/AVR 120 V #2132224

TE_60_ATC/AVR
TE_60_ATC/AVR_(4th_Generation),_Combihammer
TE_60_ATC/AVR_(4th_Generation),_Combihammer
TE_60_ATC/AVR_(4th_Generation),_Combihammer
TE_60_ATC/AVR_(4th_Generation),_Combihammer
TE_60_ATC/AVR_(4th_Generation),_Combihammer

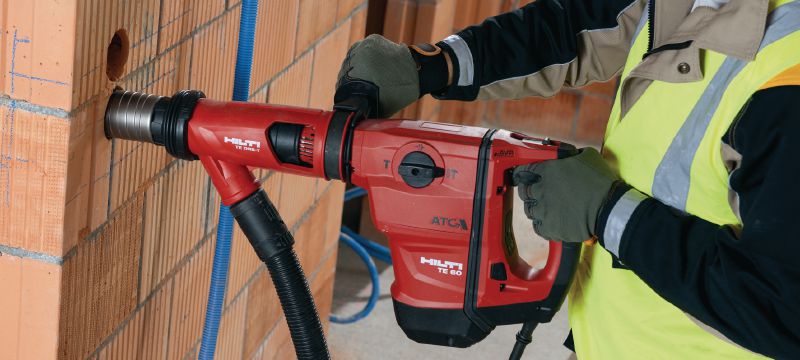

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiseling, with Active Vibration Reduction (AVR) and Active Torque Control (ATC)

  • Weight according EPTA-Procedure 01/2003 without battery: 17.2 lb
  • Single impact energy: 5.8 ft-lbs
  • Rated current: 13 A

Customers also searched for concrete drill , rotary hammer , hammer drill , rotary hammer drill or SDS MAX Rotary Hammer.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$1,590.53
$1,590.53
/
1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
17.2 lb
Single impact energy
5.8 ft-lbs
Rated current
13 A
Hammer drilling diameter range
15/32 - 3-15/16 in
Optimum Hammer drilling range
23/32 - 1-9/16 in
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Depth gauge, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
7.2 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
6.2 m/s² 2
Rated input power
1350 W
Dimensions (LxWxH)
19.4 x 4.5 x 11.5 mm
A-weighted emission sound power level
111 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf OSHA 1926.1153, Section VII (1), English [ 584.4 KB ]
pdf OSHA 1926.1153, Section X and VII, English [ 534.2 KB ]

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High versatility for a wide range of drilling and chiseling applications
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
  • OSHA 1926.1153 Table 1 compliant when used with the TE DRS-Y and TE DRS-D dust removal system and a Hilti vacuum cleaner

Applications

  • Medium-duty demolition work
  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
