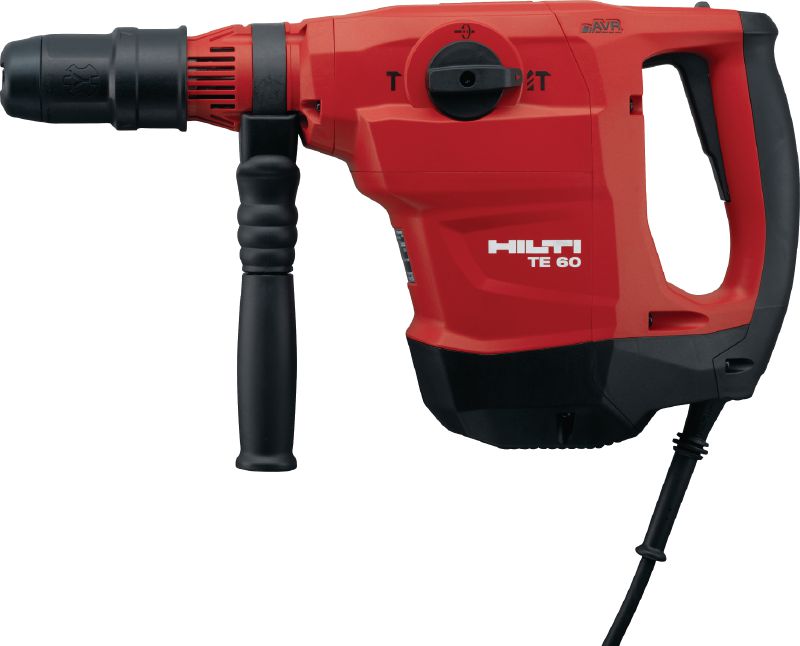

TE 60-AVR Rotary hammer

Versatile and powerful SDS Max (TE-Y) rotary hammer for concrete drilling and chiseling, with Active Vibration Reduction (AVR)

  • Weight according EPTA-Procedure 01/2003 without battery: 15 lb
  • Weight class: 13 lb
  • Single impact energy: 5.8 ft-lbs

Customers also searched for concrete drill rotary hammer hammer drill rotary hammer drill or SDS MAX Rotary Hammer.

Choose options

Pack size
  • 1 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $1,349.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
15 lb
Weight class
13 lb
Single impact energy
5.8 ft-lbs
Hammer drilling diameter range
15/32 - 3-15/16 in
Optimum Hammer drilling range
23/32 - 1-15/32 in
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.5 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
9.1 m/s² 2
Rated input power
1350 W
Dimensions (LxWxH)
19.1 x 4.5 x 10.7 mm
A-weighted emission sound power level
107 dB (A) 3
A-weighted emission sound pressure level
99 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • High versatility for a wide range of drilling and chiseling applications
  • Exceptionally high performance-to-weight-ratio
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

  • Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3 1/8")
  • Coring in masonry and concrete with TE-Y BK core bits up to 4-15/16" diameter
  • Medium-duty demolition work
