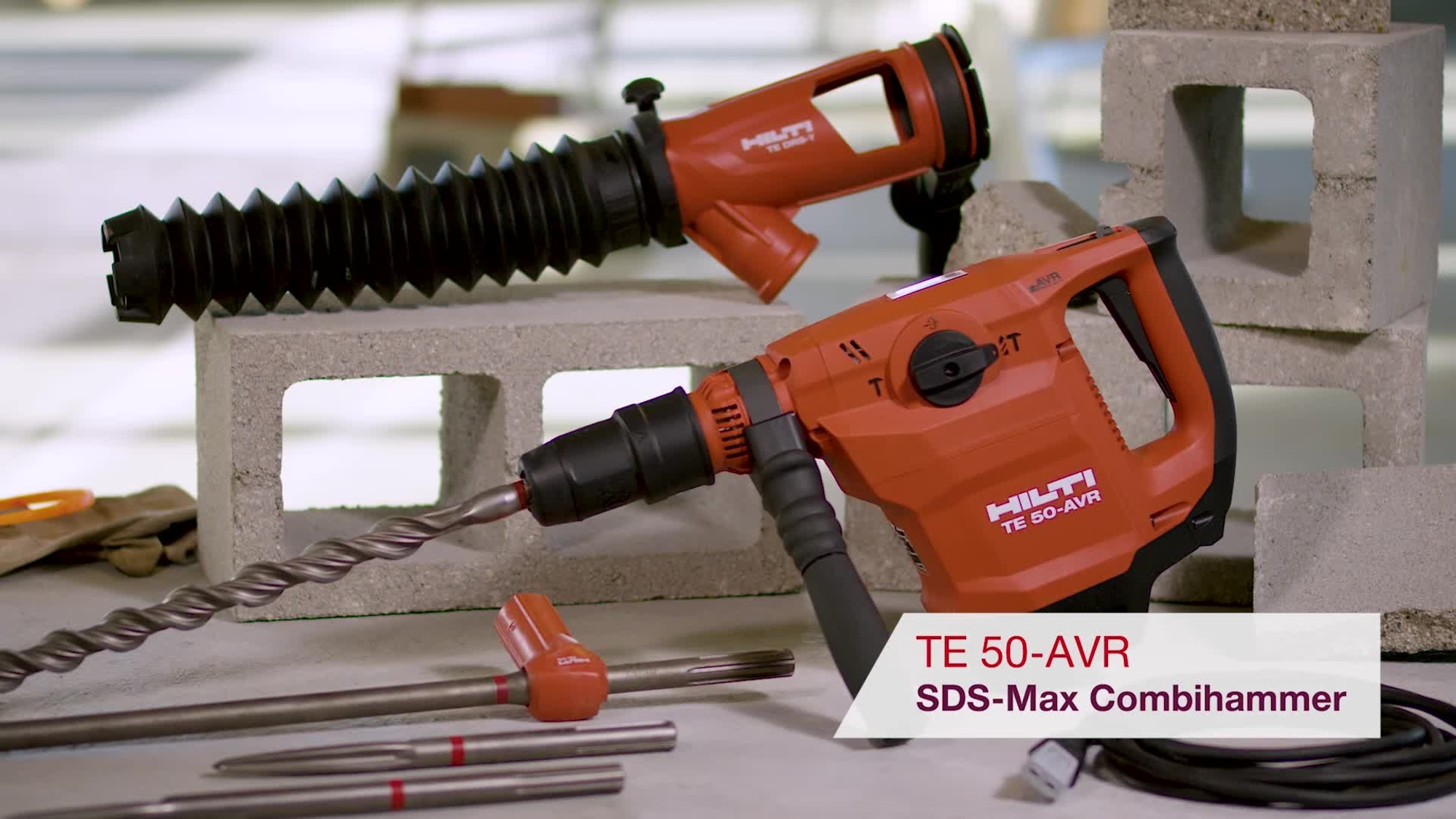

TE 50-AVR Rotary hammer

Corded Rotary Hammer TE 50-AVR 120 V #2127969

TE_50-AVR_Generation_3
TE_50-AVR_(3rd_Generation)_Chiseling
TE_50-AVR_(3rd_Generation),_Anchor_holes_with_TE-YX
TE_50-AVR_(3rd_Generation),_Coring_with_TE-Y_BK_and_TE_DRS-Y
TE_50-AVR_(3rd_Generation),_Rebar_holes_with_TE-YD_and_TE_DRS-Y

Our most compact SDS Max (TE-Y) rotary hammer for lightweight comfort and control while drilling or chiseling in concrete, stone, and masonry

  • Weight according EPTA-Procedure 01/2003 without battery: 13.4 lb
  • Single impact energy: 4.4 ft-lbs
  • Rated current: 11.2 A

Customers also searched for concrete drill , rotary hammer , hammer drill , rotary hammer drill or SDS MAX Rotary Hammer Drill.

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$799.00
$799.00
/
1 Each

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
13.4 lb
Single impact energy
4.4 ft-lbs
Rated current
11.2 A
Hammer drilling diameter range
15/32 - 3-7/32 in
Optimum Hammer drilling range
5/8 - 1-3/8 in
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Vibration Reduction (AVR), Chiseling, Depth gauge
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.8 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D, TE DRS-BK
Triaxial vibration for chiseling into concrete
7.1 m/s² 2
Rated input power
1100 W
A-weighted emission sound power level
108 dB (A) 3
A-weighted emission sound pressure level
100 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf OSHA 1926.1153, Section VII (1), English [ 584.4 KB ]
pdf OSHA 1926.1153, Section X and VII, English [ 534.2 KB ]

Features & Applications

Features

  • Exceptionally light and versatile SDS Max (TE-Y) rotary hammer
  • Low contact pressure for high user comfort
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

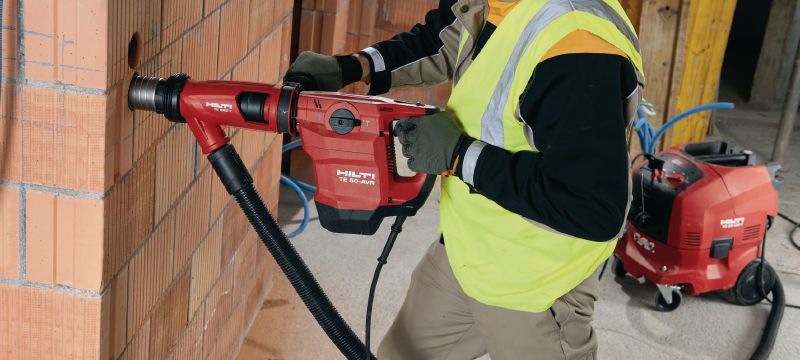

  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite

Applications

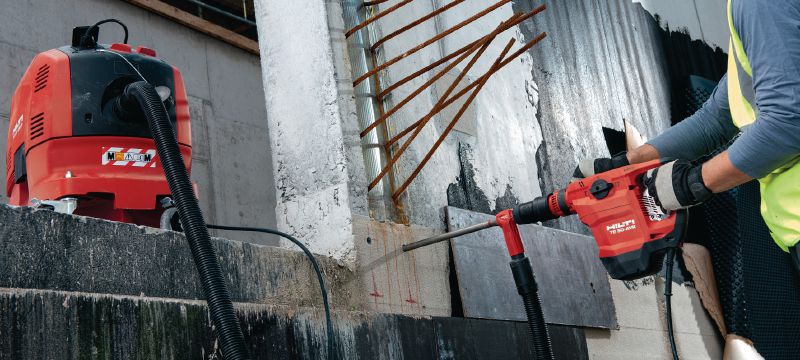

  • Light to medium-duty chiseling in masonry and concrete
  • Hammer drilling in concrete, masonry and natural stone (possible diameter range 1/2"- 2", recommended diameter range 5/8" - 1 1/4")
  • Drilling penetrations mainly in masonry using percussion core bits (possible diameter range 1 3/4"- 5 15/16", recommended diameter range up to 3 1/4" )

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Individual labels and online visibility provide tool fleet transparency.
  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
