Nuron

TE 50-22 Cordless rotary hammer

#2370436

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

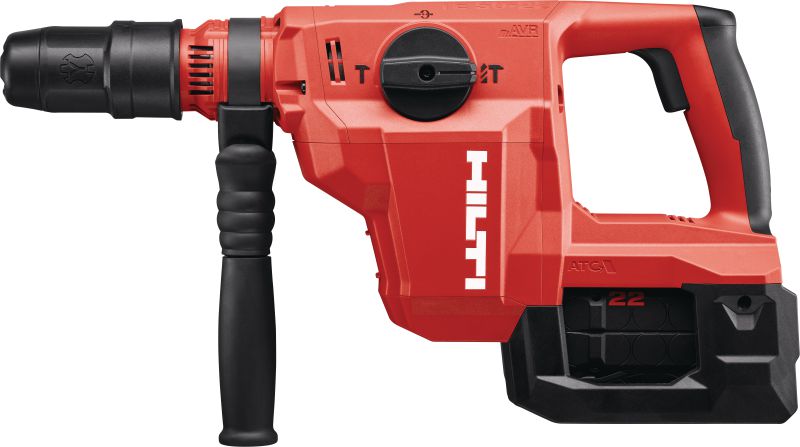

Still life image of the third generation TE 50-22 tool without battery
Application picture of the third generation cordless rotary hammer TE 50-22. Rebar drilling application with the TE-YD and DRS-Y
Application picture of the third generation cordless rotary hammer TE 50-22. Rebar drilling application with the TE-YD and DRS-Y
Application picture of the third generation cordless rotary hammer TE 50-22. Chiseling application with the TE-YPX.

Compact and cordless SDS Max (TE-Y) rotary hammer drill with lighter weight, more power and less vibration for drilling and chiseling in concrete (Nuron battery)

  • Weight according EPTA-Procedure 01/2003 without battery: 12.1 lb
  • Optimum Hammer drilling range: 5/8 - 1-3/8 in
  • Hammer drilling diameter range: 15/32 - 3-7/32 in

Customers also searched for concrete hammer drill, Nuron battery platform, cordless hammer drill, SDS Max rotary hammer or cordless rotary hammer.

Customize your kit

Tool Body
Tool body with case Includes: 1x Hilti Grease 50ml, 1x TE 50-22 Tool case assy
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$739.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
12.1 lb
Optimum Hammer drilling range
5/8 - 1-3/8 in
Hammer drilling diameter range
15/32 - 3-7/32 in
Single impact energy
4.4 ft-lbs
Hammer drilling RPM
360 rpm
Full hammering frequency
3510 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiseling, Hammer drilling
Triaxial vibration for chiseling into concrete
6.8 m/s² 1
A-weighted emission sound pressure level
99 dB (A) 2
A-weighted emission sound power level
107 dB (A) 3
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Material safety datasheet
Operating Instruction
pdf Material safety datasheet Hilti Grease (EN) [ 732.3 KB ]
pdf Material safety datasheet Hilti Grease (ES) [ 737.2 KB ]

Features & Applications

Features

  • Power and versatility for tough jobs - broad range of inserts combined with brushless motor for higher performance drilling, chiseling, and coring
  • Work more comfortably - ergonomic design and Active Vibration Reduction (AVR) technology helps reduce user fatigue on the jobsite
  • Safer work environments - Hilti´s innovative Active Torque Control (ATC) provides more protection from tool over-rotation when drill bits get stuck
  • Drop protection - more robust battery plus metal battery garage protect against rotary hammer failures after accidental drops
  • On the Nuron battery platform - cordless tools without compromise thanks to longer-lasting batteries and a range of services to keep you more productive, today and tomorrow

Applications

  • Versatile rotary hammer drill for concrete construction work and building services installation
  • Drilling holes for pipe penetrations or electrical outlets through concrete and masonry
  • Chiseling in concrete, masonry, tiles and plaster for demolition
  • Ideal for repetitive drilling in rebar

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Free verification of tool accuracy in accordance with manufacturer’s specifications.
More information about Fleet Management
