Nuron

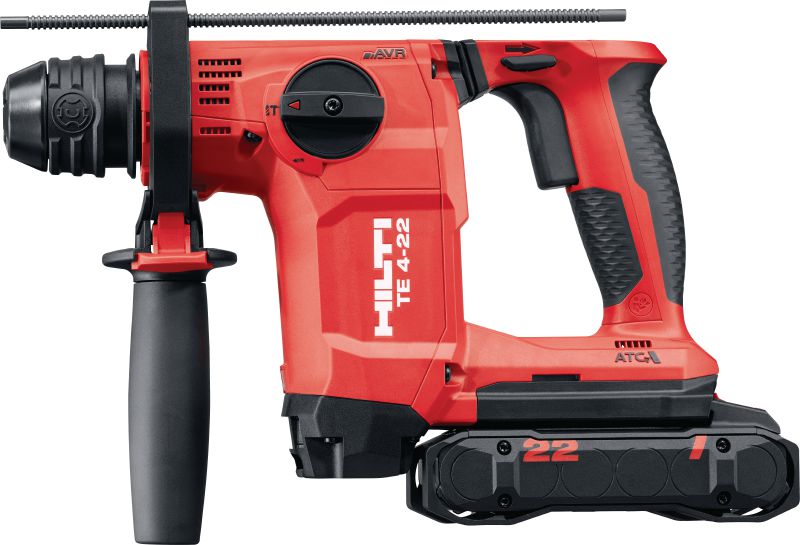

TE 4-22 Cordless rotary hammer

Still life image of TE 4-22 (G03) with B22-85
Still life image of TE 4-22 (G03) with B22-110
Overhead serial drilling with optimized, safe and high performing rotary hammer TE 4-22 and TE DRS-4/6

Compact SDS Plus cordless rotary hammer with our best performance-to-weight ratio for overhead drilling (Nuron battery platform)

  • Weight according EPTA-Procedure 01/2003 without battery: 5.4 lb
  • Optimum Hammer drilling range: 5/32 - 9/16 in
  • Single impact energy: 1.7 ft-lbs

Customers also searched for cordless rotary hammer, cordless hammer drill, concrete hammer drill, SDS Plus rotary hammer or rotohammer.

Customize your kit

Tool Body
Tool body with cardboard box Includes: 1x Hilti Grease 50ml
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$379.00

Technical Data

Weight according EPTA-Procedure 01/2003 without battery
5.4 lb
Optimum Hammer drilling range
5/32 - 9/16 in
Single impact energy
1.7 ft-lbs
Hammer drilling diameter range
5/32 - 1-3/32 in
Hammer drilling RPM
1050 rpm
Full hammering frequency
5100 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Depth gauge, Hammer drilling, Reverse mode, Working light LED
A-weighted emission sound power level
98 dB (A) 1
A-weighted emission sound pressure level
90 dB (A) 2
Dust removal system available
TE DRS-4/6, TE DRS-C, TE DRS-D, TE DRS-22
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Material safety datasheet Hilti Grease (EN) [ 732.3 KB ]
pdf Material safety datasheet Hilti Grease (ES) [ 737.2 KB ]

Features & Applications

Features

  • Compact but highly capable – the best balance of power-to-weight ratio, drilling speed and work per charge of any Hilti SDS Plus rotary hammer drill
  • Faster drilling – finish your installation faster thanks to 20% more power from the new brushless motor and revolutionary Nuron batteries
  • Improved comfort – reduced weight, redesigned grips, LED light and better balance make the TE 4-22 cordless rotary hammer especially easy to handle when drilling overhead
  • Comprehensive safety features – includes Active Torque Control (ATC) to better protect you from uncontrollable spinning if the bit sticks
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity

Applications

  • Drilling and hammer drilling in concrete and masonry
  • Overhead drilling in concrete, such as for hanging pipes and conduits, MEP installations and suspended ceilings
  • Virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)
  • Setting anchors and drop-in anchors in concrete (with optional TE-C bit holder and setting tool)
  • OSHA 1925.1153 Table 1 compliant, virtually dust-free drilling (TE DRS-4/6 on-board dust removal system or TE DRS-C vacuum cleaner connector required)

For approval or certificate information, please see individual items.
