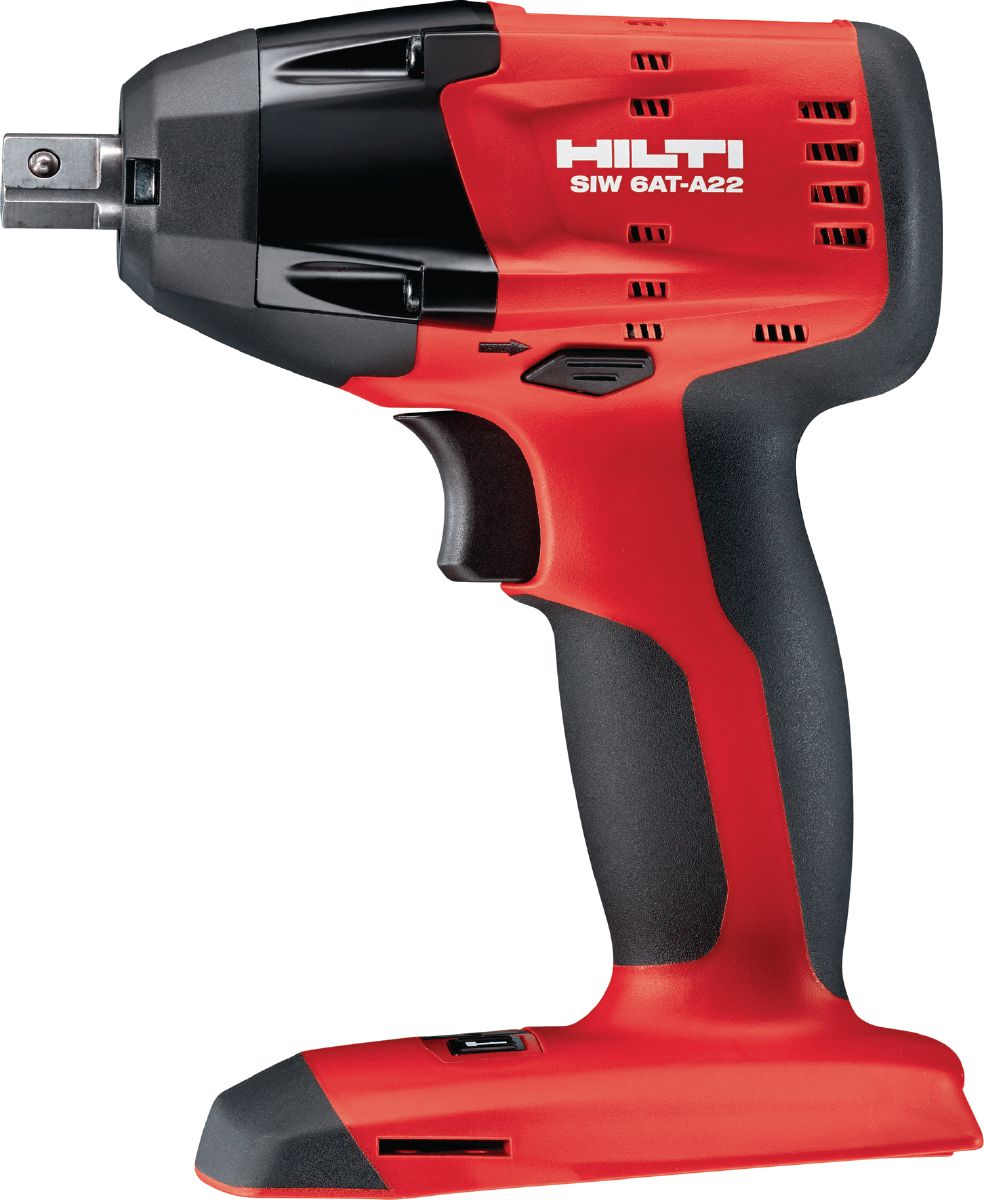

SIW 6AT-A22 Cordless impact wrench

Cordless Impact Wrench SIW 6AT A-22 #2112642

SIW 6AT-A22, cordless impact wrench, r4838536, 2112642
SIW_6AT-A22,_SI-AT-A22,_B22,_SI-S,_KB-TZ,_KB-TZ_stud_anchor,_cordless_impact_wrench,_adaptive_torque_module,_compact_battery,_long_socket,HST3,_HST3_stud_anchor
SIW_6AT-A22,_SI-AT-A22,_B22,_SI-S,_MQN,_MQ_Bracket,_MQN_galvanized,_cordless_impact_wrench,_adaptive_torque_module,_compact_battery,_long_socket,

Power-class 22V light-torque impact wrench with 1/2" detent anvil for anchoring and bolting

  • Anvil type: 1/2" detent pin
  • Maximum torque: 66 ft-lbs (1); 100 ft-lbs (2); 157 ft-lbs (3)
  • Nut busting torque: 249 ft-lbs

Customers also searched for impact wrench, 1/2 cordless impact wrench, battery impact wrench, battery powered impact wrench or cordless impact wrench.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Anvil type
1/2" detent pin
Maximum torque
66 ft-lbs (1); 100 ft-lbs (2); 157 ft-lbs (3) 1
Nut busting torque
249 ft-lbs
Full hammering frequency
3500 impacts/minute
Number of gears
3
No load RPM
gear 1: 1000 rpm; gear 2: 1500 rpm; gear 3: 2300 rpm
Dimensions (LxWxH)
6.1 x 3.7 x 9 in
Tool body weight
2.3 lb
A-weighted emission sound pressure level
94 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 6 AT-A22 (01), English, Spanish, French, Portuguese [ 2.2 MB ]

Features & Applications

Features

  • High-efficiency brushless motor means the tool lasts longer and gets more work done per charge
  • Compact design for use wherever space is limited
  • Three gears and electronic speed control for easy switching between different driving speeds and torque
  • Four bright LEDs around the chuck provide direct illumination of the work surface
  • Compatible with the Hilti SI-AT-A22 Adaptive Torque module for controlled fastenings

Applications

  • Driving 6 mm and 8 mm HUS3 screw anchors in concrete
  • Driving screws in HRD frame anchors 8 mm and 10 mm in diameter in masonry and concrete
  • Driving lag bolts up to 8 mm in diameter in wood
  • Driving lag bolts up to 1/2" in diameter
  • Tightening and releasing nuts and bolts in sizes M8 to M16
