Nuron

SIW 4R-22 3/8” Right-angle impact wrench

SIW 4R-22 right angle impact wrench #2349981

Configurator
Technical Data
Documents
Features & Applications
Related Products
Services

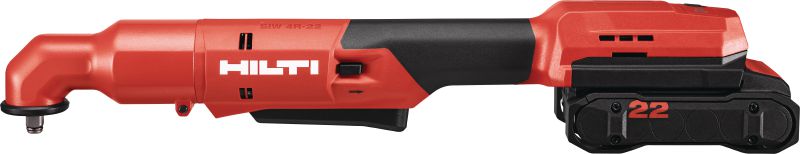

Still life image of the right angle impact wrench SIW 4R-22.
Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery and with socket. Mechanical ventilation application.

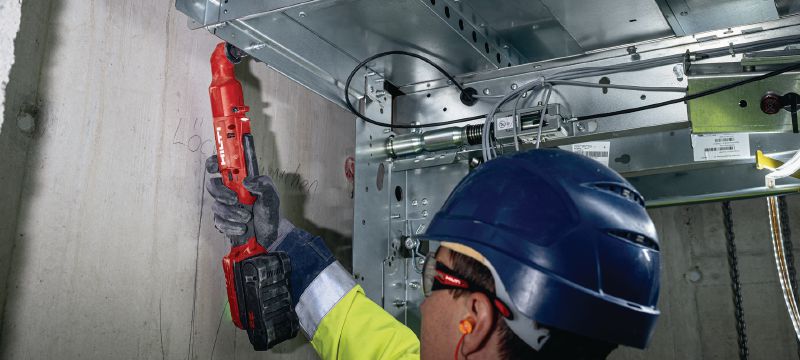

Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery. Elevator application.

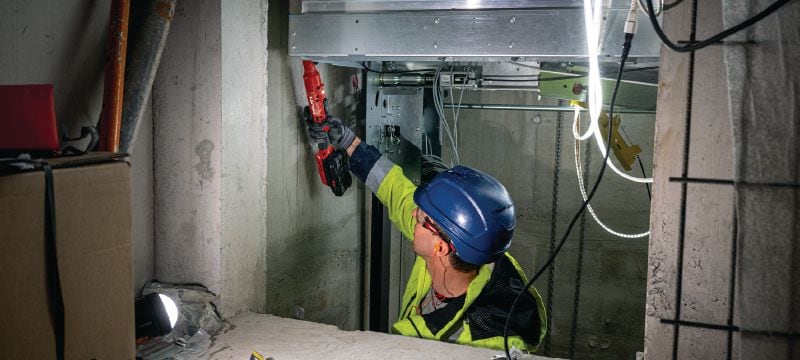

Application image of the right angle impact wrench SIW 4R-22 with B22-55 battery. Elevator application.

Compact, cordless right-angled impact wrench for reaching tough to access applications

  • Anvil type: 3/8" anvil
  • Maximum torque: 27 ft-lbs (1); 78 ft-lbs (2)
  • Full hammering frequency: 3800 impacts/minute

Customers also searched for cordless impact wrench, impact wrench, battery impact wrench, Nuron impact wrench or Nuron battery impact wrench.

Customize your kit

Tool Body
Tool body with cardboard box
How many kits do you want to order?
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$299.00

Technical Data

Anvil type
3/8" anvil
Maximum torque
27 ft-lbs (1); 78 ft-lbs (2) 1
Full hammering frequency
3800 impacts/minute
Number of gears
2
No load RPM
gear 1: 1600 rpm; gear 2: 2250 rpm
A-weighted emission sound pressure level
97 dB (A) 2
Rated voltage
21.6 V
  1. Do not use the tool for applications where an exact torque or maximum torque is specified - there is a risk of over-tightening and damaging the screw or workpiece.
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

pdf Operating Instruction SIW 4R-22 (01) (ENESFRPTEN-USES-USFR-USPT-US), English, Spanish, French, Portuguese [ 1.2 MB ]

Features & Applications

Features

  • Access to hard to reach spaces where other tools won’t fit
  • Reach even further into confined spaces with the longer grip and in-line battery interface
  • Robust 3/8” anvil with friction ring for quick and easy socket changes
  • Built to last thanks to the more efficient brushless motor, more powerful motor cooling and sealed electronics
  • Strong LED light provides more powerful illumination of the work area

Applications

  • Metal bolting in steel – such as handrails, racking and machinery

Services

Hilti Tool Service

  • Product warranty against parts and manufacturing irregularities for 20 years
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
