DD 150-U-22 Cordless core drill

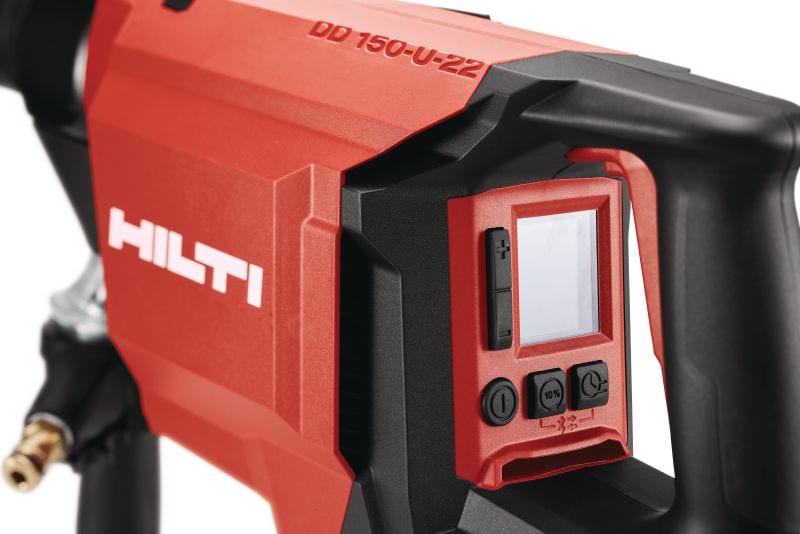

3D still life picture of the cordless core drill DD 150-U-22. Screen display view.

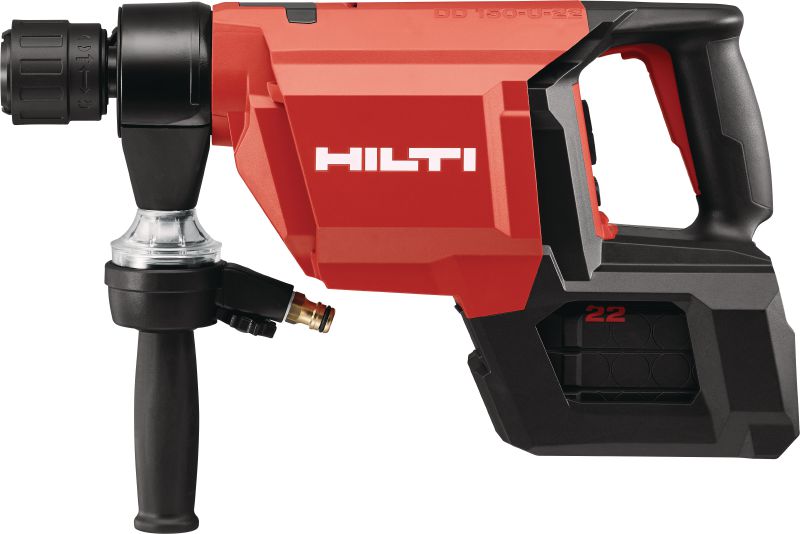

Still life picture of the cordless core drill DD 150-U-22 with battery B 22-255.

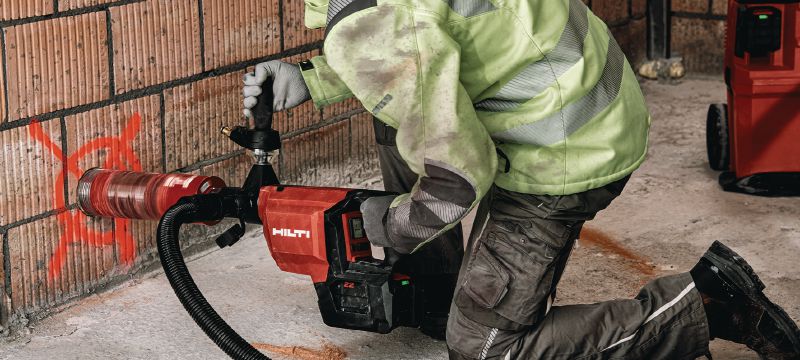

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to the cordless vacuum cleaner VC 4X-22. Hand-held dry coring in masonry.

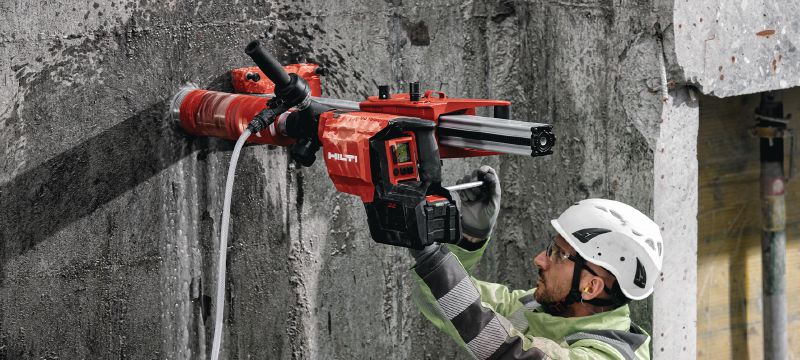

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand. Rig-based wet coring in concrete.

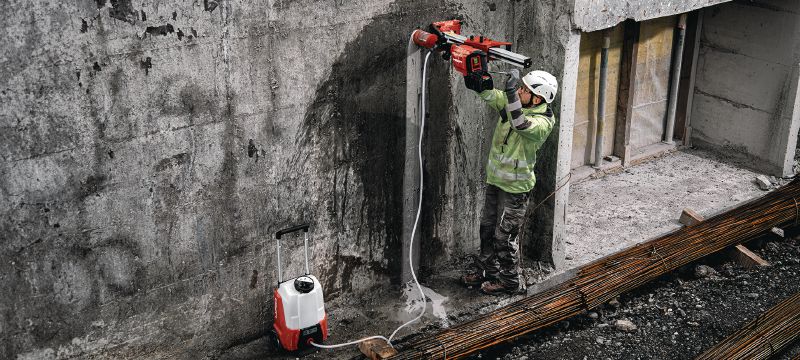

Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand and water pump DWP 15-22. Rig-based wet coring in concrete.

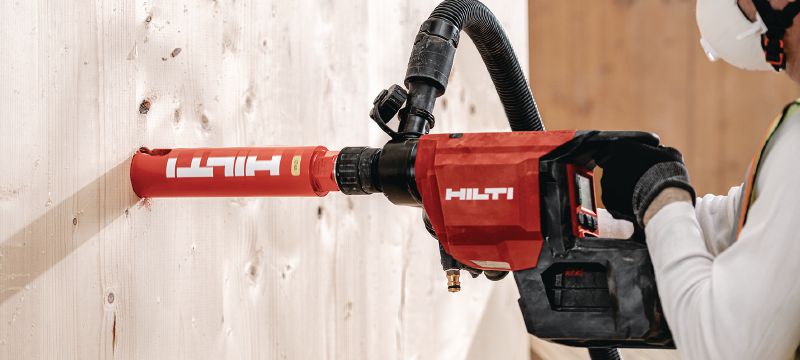

Cropped application picture of DD 150-U-22 with SPX-L Wood during handheld drilling.

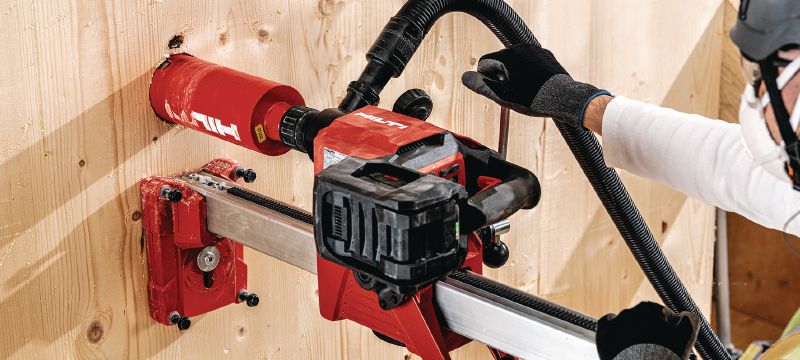

Cropped application picture of DD 150-U-22 with SPX-L Wood during rig-based drilling.
3D still life picture of the cordless core drill DD 150-U-22. Screen display view.
Still life picture of the cordless core drill DD 150-U-22 with battery B 22-255.
Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to the cordless vacuum cleaner VC 4X-22. Hand-held dry coring in masonry.
Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand. Rig-based wet coring in concrete.
Cropped application picture of the cordless core drill DD 150-U-22 with the SPX A speed core bit and attached to a drill stand and water pump DWP 15-22. Rig-based wet coring in concrete.
Cropped application picture of DD 150-U-22 with SPX-L Wood during handheld drilling.
Cropped application picture of DD 150-U-22 with SPX-L Wood during rig-based drilling.

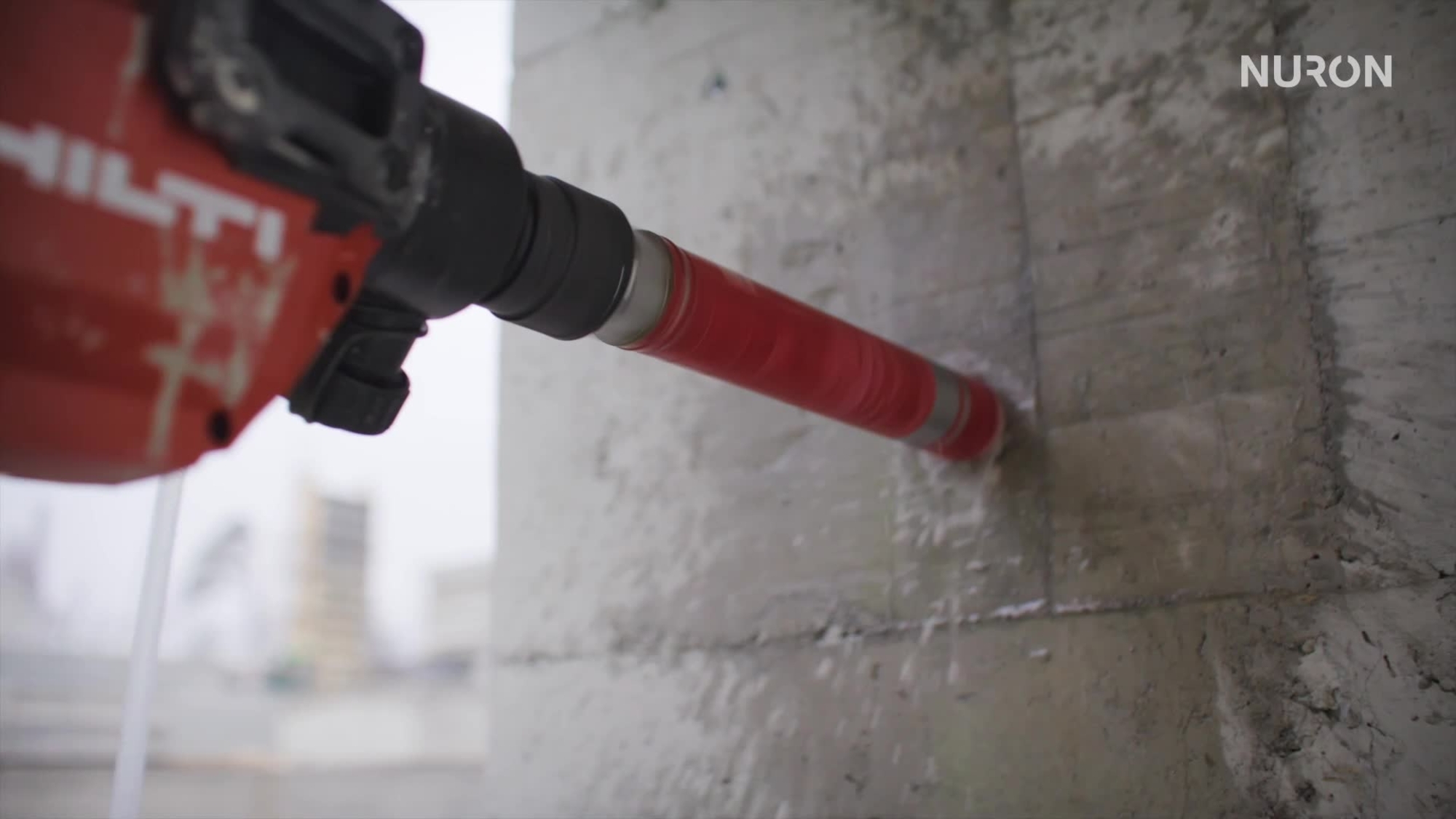

This DD 150-U-22 showcase video shows the features and benefits of Hilti's first cordless diamond coring tool on the Nuron battery platform. (EDITED FOR W1) (16x9, EN) (W1)

Cordless diamond coring machine for handheld or rig-based coring from 52-162 mm (2 - 6-3/8") in concrete or up to 252mm (10”) in masonry (Nuron battery)

  • Diameter range: 2-1/16 - 6-3/8 in
  • Base material: Masonry, Asphalt, Concrete, Reinforced concrete, Wood
  • Operation mode: Hand-held and rig-mounted drilling system

Customers also searched for cordless core drill, battery drill or cordless core rig.

Technical Data

Diameter range
2-1/16 - 6-3/8 in
Base material
Masonry, Asphalt, Concrete, Reinforced concrete, Wood
Operation mode
Hand-held and rig-mounted drilling system
Rated input power
1650 W
Number of gears
20
Weight according EPTA-Procedure 01/2003 without battery
16.3 lb
Weight of complete system
42 lb
A-weighted emission sound pressure level
92 dB (A) 1
Corner accessibility
6.5 in
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • E-gears for higher performance – electronic gears set RPM/torque combinations for optimized drilling speeds at every diameter
  • Safer handheld coring – Active Torque Control (ATC) helps protect you from uncontrolled spinning if the core bit jams
  • More coring per charge – pair with new cordless optimized core bits for up to 30% more battery reach
  • Easier core removal – oscillating function helps shake loose stuck cores to save downtime
  • Less multi-tasking – Bluetooth® connects information from your water management system and vacuum all in one real-time display

Applications

  • Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers
  • Handheld wet drilling for small pipe penetrations in plumbing applications
  • Handheld dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations
  • Handheld coring for large diameter sewage pipes, chimneys, and stove installations

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • 1 or free, in and out of the repair center the same day or repair is free of charge
  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management

LifeTime Services

  • 2 years no repair costs from date of purchase, including wear & tear parts, shipping and labor
  • After every paid repair again 3-month no-repair-cost period
More information about LifeTime Services
