TE 500-AVR SDS-Max chipping hammer

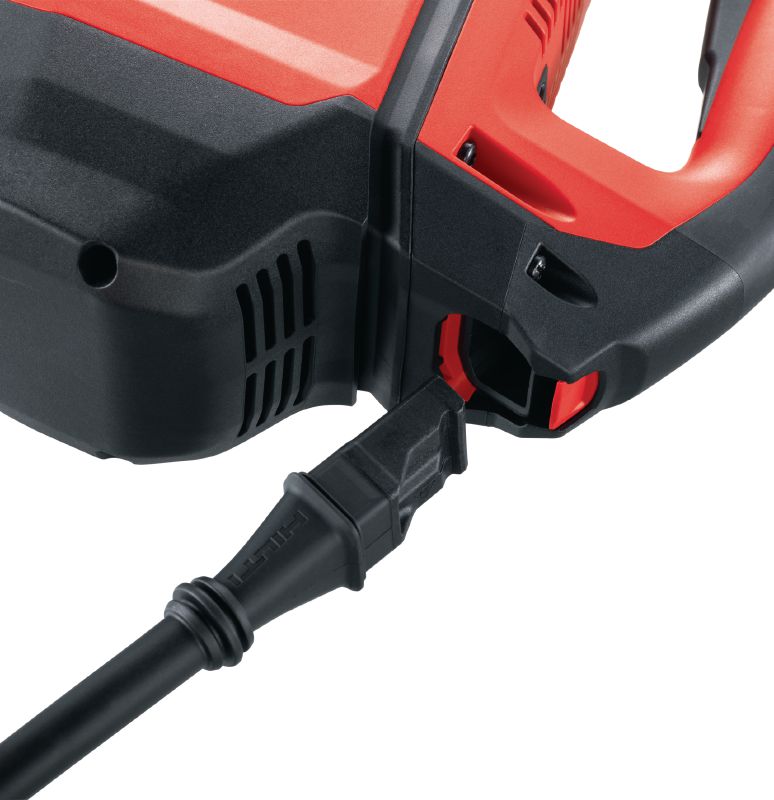

TE 500-AVR with detachable power cord

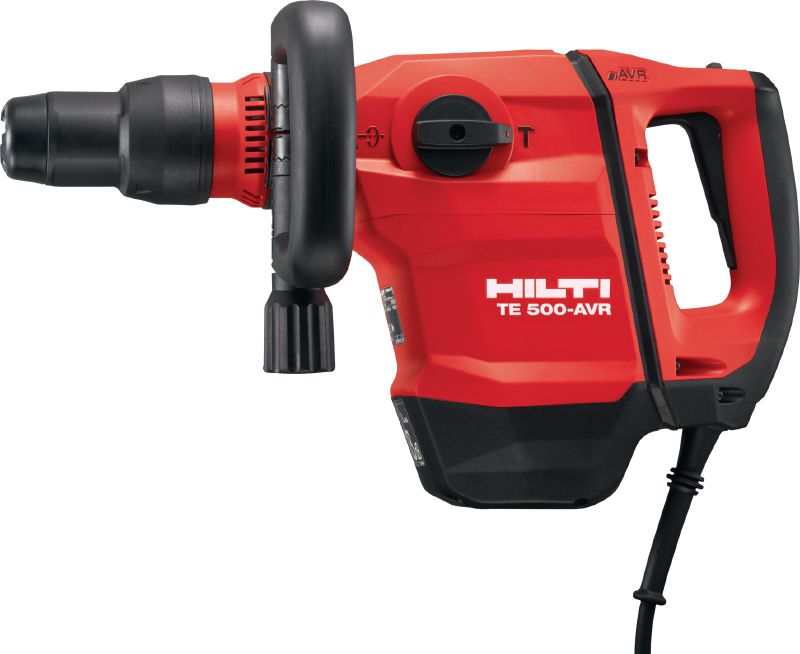

TE 500-AVR - tool beauty shot
Creating a hole in a brick wall with the TE 500-AVR and the dust removal system DRS-B
Creating a hole in a concrete wall with the TE 500-AVR and the dust removal system DRS-B

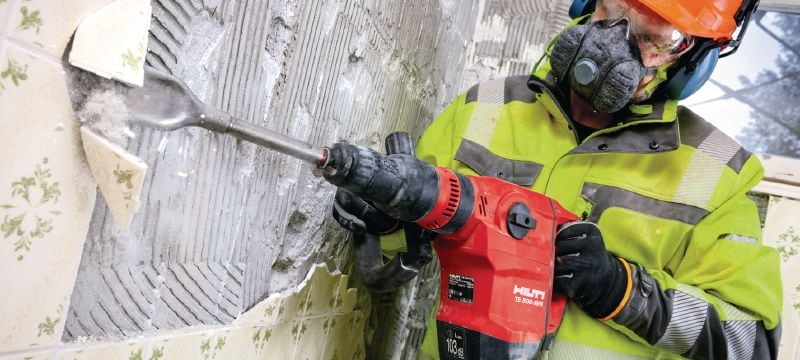

Removing tiles from a wall with the TE 500-AVR
TE 500-AVR with detachable power cord
TE 500-AVR - tool beauty shot
Creating a hole in a brick wall with the TE 500-AVR and the dust removal system DRS-B
Creating a hole in a concrete wall with the TE 500-AVR and the dust removal system DRS-B
Removing tiles from a wall with the TE 500-AVR

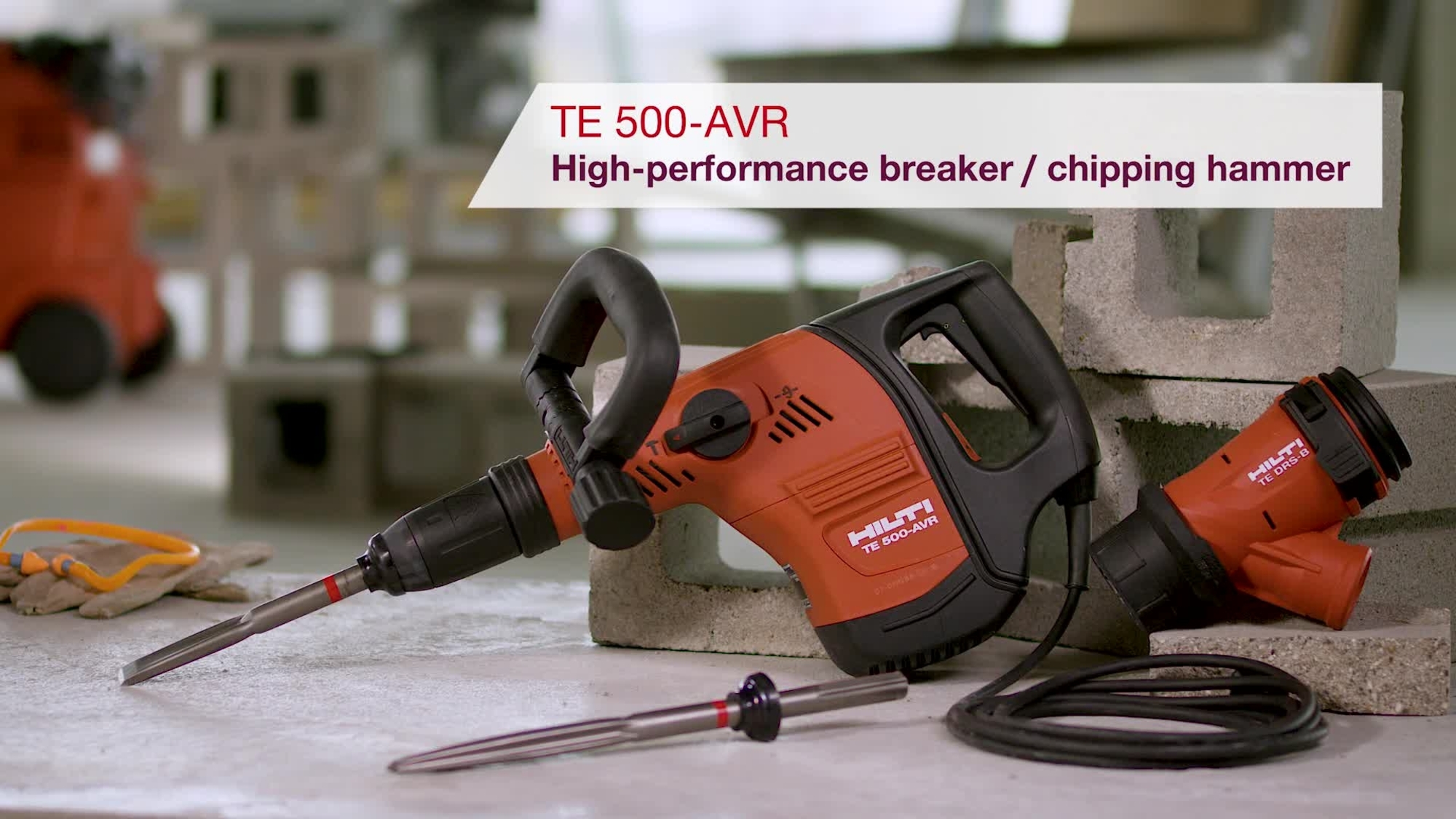

Product video of Hilti's breaker/chipping hammer TE 500-AVR

Versatile SDS Max (TE-Y) demolition hammer for light-duty chiseling in concrete and masonry, with Active Vibration Reduction (AVR)

  • Working direction: Wall
  • Tool chuck type: TE-Y (SDS Max)
  • Weight according EPTA-Procedure 01/2003 without battery: 13.9 lb

Customers also searched for chipper , chipping hammer , hilti chipping hammer , chipping hammer concrete or chipping tool .

Technical Data

Working direction
Wall
Tool chuck type
TE-Y (SDS Max)
Weight according EPTA-Procedure 01/2003 without battery
13.9 lb
Single impact energy
6.3 ft-lbs
Full hammering frequency
3510 impacts/minute
Max. chiseling performance
61 in³/min
Dimensions (LxWxH)
18.4 x 4.6 x 10.4 in
Triaxial vibration for chiseling into concrete
8.2 m/s² 1
Dust removal system available
TE DRS-B
A-weighted emission sound pressure level
96 dB (A) 2
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • High versatility for a wide range of chiseling applications
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • High robustness and long lifetime due to separate lubrication chambers
  • Detachable supply cord for quick and easy replacement of damaged/broken cords on the jobsite
  • Optional DRS-B dust removal system collects up to 95% of dust

Applications

  • Chiseling on concrete and masonry walls
  • Channeling on concrete and masonry
  • Repairing concrete
  • Enlarging breaches
  • Light chipping on concrete or masonry

For approval or certificate information, please see individual items.

Services

Service icon for Tool Services

Hilti Tool Service

  • Service is free of charge up to 2 years, including wear & tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • 1 or free, in and out of the repair center the same day or repair is free of charge
More information about Tool Services
Service icon for Bbundles

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • Loan tools during repair to reduce downtime.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Individual labels and online visibility provide tool fleet transparency.
More information about Fleet Management
