MI-SGC M16

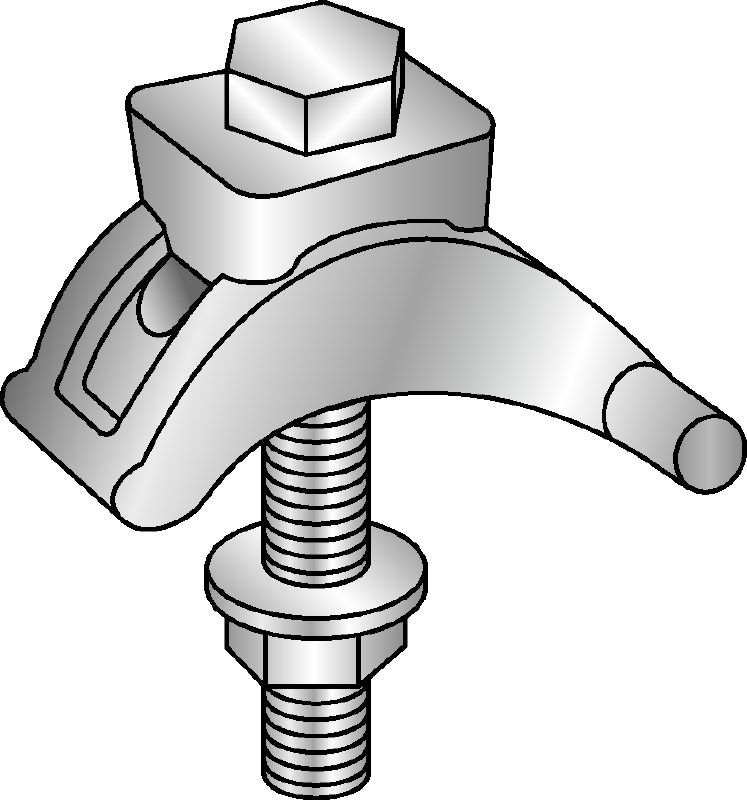

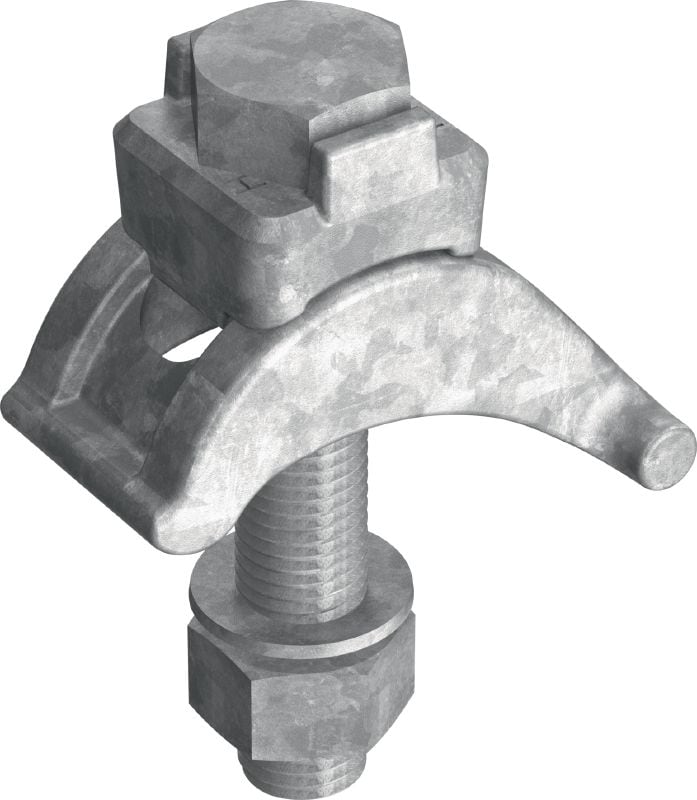

Beam clamp MI-SGC-M16 #387398

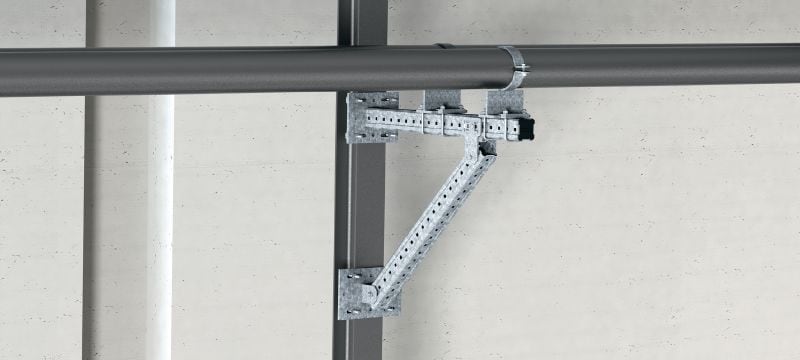

Hot-dip galvanized (HDG) single beam clamp for connecting MI steel baseplates to steel beams
- Thread connection - M: M16
- Material composition: Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Choose options
Thread connection - M
- M16
Pack size
- 12 pc
Quantity
Box
Total Pieces
12
Discounted net
$597.50
$597.50 / 1 Box
Technical Data
Thread connection - M
M16
Material composition
Clamp: EN-GJMB-350-10 - DIN EN 1562, EN-GJMW-400-5 - DIN EN 1562, EN-GJMB-450-6 - DIN EN 1562; Bolt: Steel grade 8.8; Nut: Steel grade 8
Surface finish
HDG: Clamp 55 µm - DIN EN ISO 1461; U-bolt, Nut 45 µm - DIN EN ISO 1461
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Tightening torque
133 ft-lbf
Wrench size
24 mm
Width - B
1.3 in
Documents
Features & Applications
Features
- Corrosion protection of steel beam is not damaged by beam clamp
- Beam clamp is equipped with set of vibration-resistant washers
Applications
- Compatible with steel beams with flange thicknesses from 12-28 mm and angle of up to 15°
