MT-B-GXL S1 OC Light-duty baseplate

Baseplate MT-B-GXL S1 OC #2272106

Configurator
Technical Data
Documents
Features & Applications
Related Products

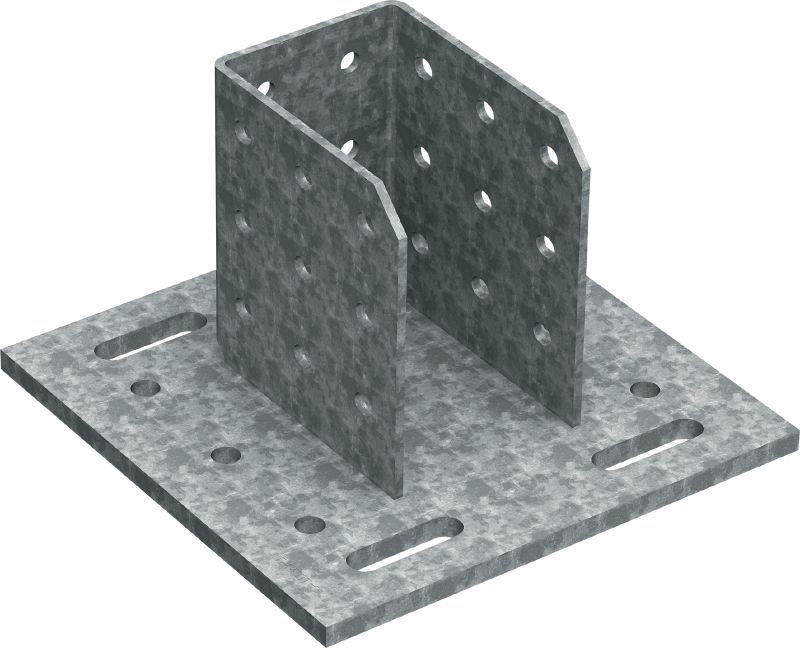

MT Base Connector
MT Base Connector

Base connector for fixation of MT-90 and MT-100 girder structures to steel, for outdoor use with low pollution

  • Material composition: Q355 or better steel
  • Surface finish: Hot-dip galvanized - for outdoor use
  • Material thickness: 12 mm

Choose options

Pack size
  • 2 pc
 Product options
Quantity
Box
Total Pieces
2
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
Price loading error occured

Please contact us

Technical Data

Details
Technical illustrations
Material composition
Q355 or better steel
Surface finish
Hot-dip galvanized - for outdoor use
Material thickness
12 mm
Weight
20.7 lb
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)

Documents

Approval document
Certificate
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – one-step assembly using Hilti MT-TFB thread-forming bolts
  • Adjustable – four slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify metal framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

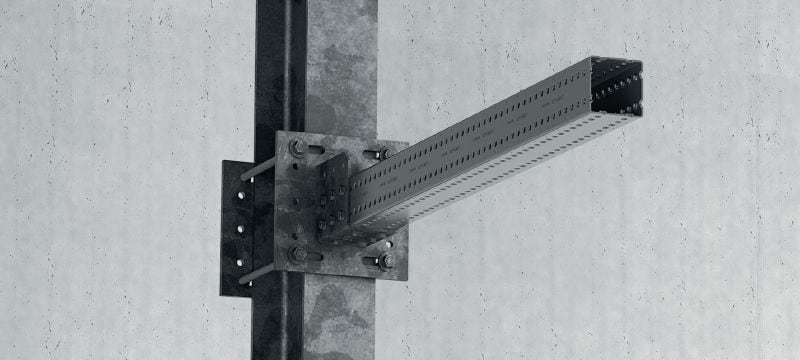

  • Fastening MT-90 and MT-100 girders to structural steel
  • Anchoring metal framing and MEP support structures with light loads to a base material
  • Suitable for use in moderately corrosive environments
