MT- FL OC Fast-Lock channel nut with bolt

Fast-Lock MT-FL OC #2399682

Configurator
Technical Data
Documents
Features & Applications
Related Products

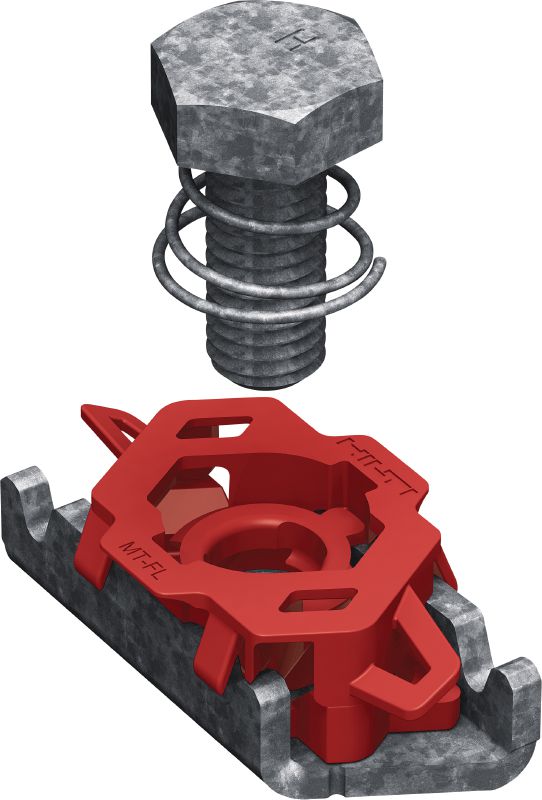

Still life picture of Fast-Lock connection mechanism MT-FL OC, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Cropped application image of pre-assembled baseplate with Fast-Lock, outdoor coated
Line drawing of the MT-FL

Fast-Lock channel nut with bolt for attaching baseplates and connectors to MT strut channels, for outdoor use with low pollution

  • Material composition: S460MC, Q460B (Q460C MOD)
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 3 mm

Choose options

Pack size
  • 50 pc
 Product options
Quantity
Box
Total Pieces
50
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$184.00
$184.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S460MC, Q460B (Q460C MOD)
Material and coating
Carbon steel - outdoor coated
Material thickness
3 mm
Surface finish
Outdoor Coated - HDG Plus
Tightening torque
30 ft-lbf
Weight
0.1 lb

Documents

Approval document
Brochure
Operating Instruction
pdf ETA-24-0607 MT Channel Connectors, English [ 1.3 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts
  • Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so you can modify strut channel framing during installation
  • Safety features – designed so you can see, hear, and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated
  • Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Connecting all compatible base plates and connectors to MT strut channels
  • Connection element for U-frame/crossbeam structures

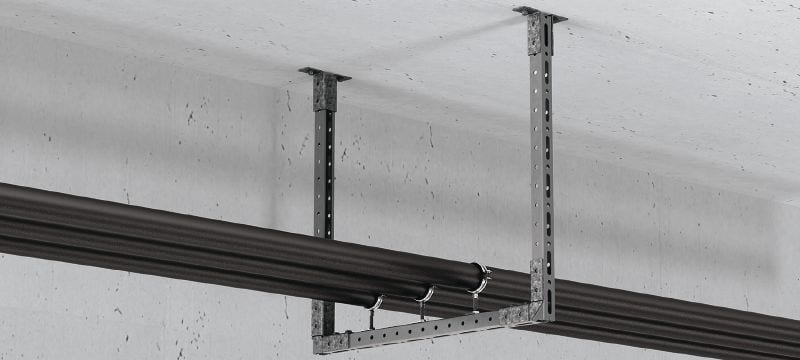

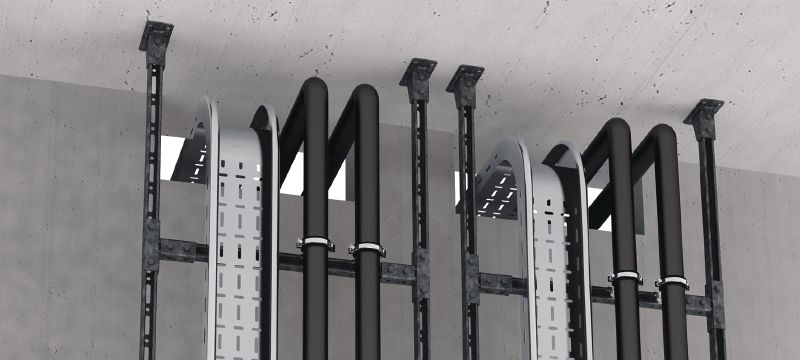

  • Assembling MEP support structures using MT strut channels
  • Suitable for use in moderately corrosive environments
