MT-FL Fast-Lock channel nut with bolt

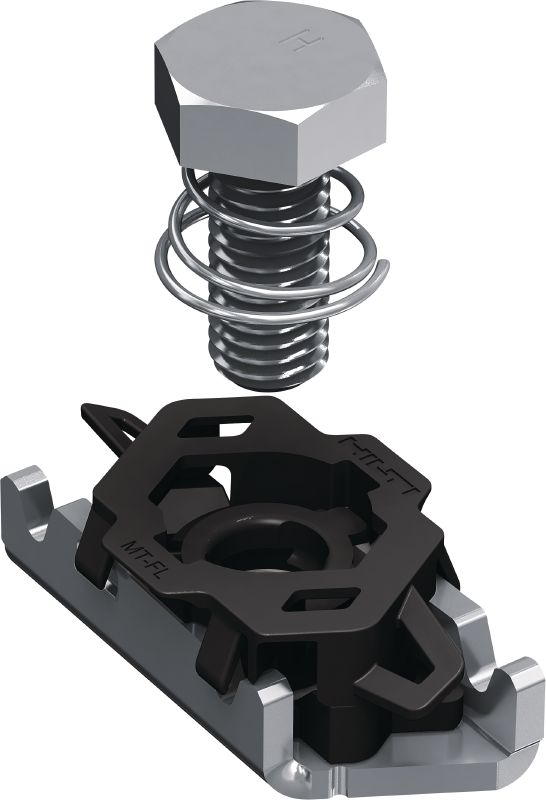

Still life picture of Fast-Lock connection mechanism MT-FL

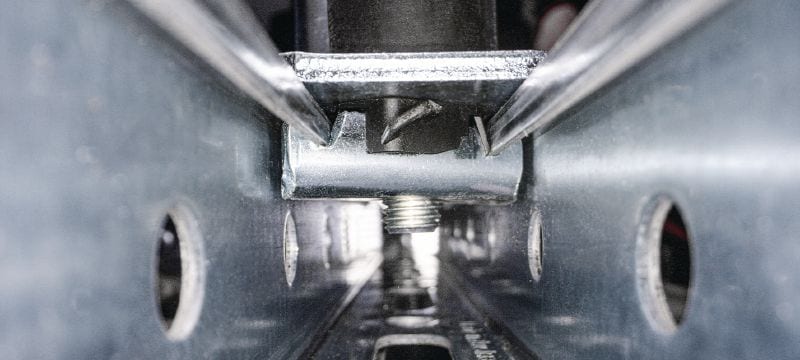

Cropped application picture of Fast-Lock clip-in
Cropped application picture of Fast-Lock disassembled
Cropped application picture of Fast-Lock clip-in
Cropped application picture of MT-C-LL1 FL installation
Cropped application image of pre-assembled channel connector with Fast-Lock
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-FL
Still life picture of Fast-Lock connection mechanism MT-FL
Cropped application picture of Fast-Lock clip-in
Cropped application picture of Fast-Lock disassembled
Cropped application picture of Fast-Lock clip-in
Cropped application picture of MT-C-LL1 FL installation
Cropped application image of pre-assembled channel connector with Fast-Lock
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-FL
This promotional video highlights the features and benefits of the new MT-FL Fast-lock portfolio (MT lightspeed). These connections are a new addition to the MT installation system portfolio and deliver higher productivity, flexibility and safety.

Fast-Lock channel nut with bolt for attaching baseplates and connectors to MT strut channels

  • Material composition: S460MC, Q460B (Q460C MOD)
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 3 mm

Technical Data

Line drawing of the MT-FL
Material composition
S460MC, Q460B (Q460C MOD)
Material and coating
Carbon steel - indoor coated
Material thickness
3 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
22 ft-lbf

Documents

Features & Applications

Features

  • Faster connections and adjustments – one-handed push-and-turn connections and one-click position adjustments allow you to assemble modular support systems much faster than standard spring nuts
  • Simple to adjust – Fast-Lock nuts are re-adjustable and can be easily disassembled so you can modify strut channel framing during installation
  • Safety features – designed so you can see, hear, and feel correct channel nut positioning, with pre-holding function to hold connector in place as soon as the mechanism is activated
  • Reliable connections – strong mechanical fixation to the channel flanges provides high shear and pull-out resistance
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Connecting all compatible base plates and connectors to MT strut channels
  • Connection element for U-frame/crossbeam structures
  • Assembling MEP support structures using MT strut channels
  • Suitable for use in dry, indoor environments

For approval or certificate information, please see individual items.
