new

MT-ES-40 FL Pre-assembled splice clevis

Channel connector MT-ES-40 FL #2399669

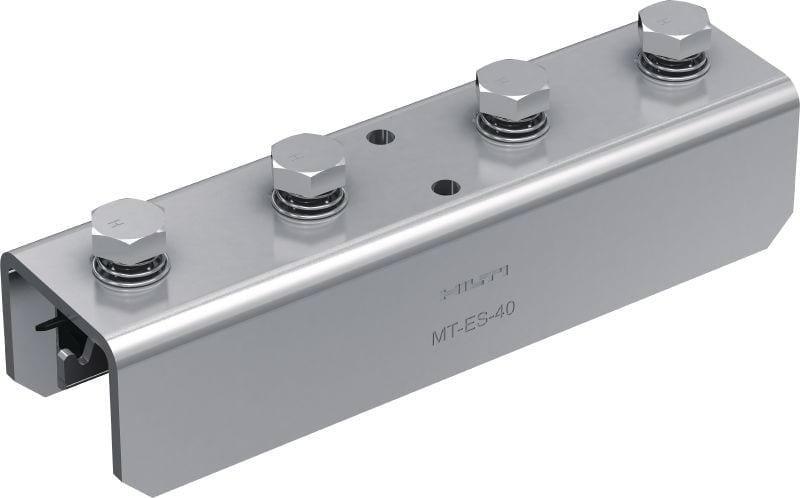

Still life picture of pre-assembled channel connector MT-ES-40 FL with Fast-Lock

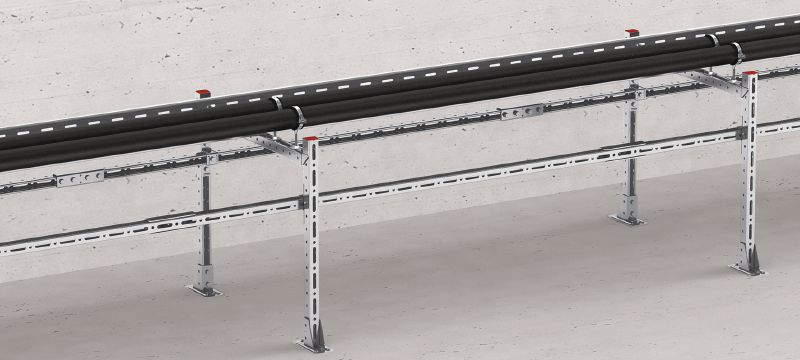

Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-ES-40 FL
Still life picture of pre-assembled channel connector MT-ES-40 FL with Fast-Lock
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-ES-40 FL
This promotional video highlights the features and benefits of the new MT-FL Fast-lock portfolio (MT lightspeed). These connections are a new addition to the MT installation system portfolio and deliver higher productivity, flexibility and safety.

Splice connector with pre-assembled Fast-Lock nut and bolt for coupling MT strut channels end-to-end (MT-40, 50, 60, 40D)

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 14 pc
 Product options
Quantity
Box
Total Pieces
14
You can not see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

$394.00

$394.00 / 1 Box

Technical Data

Line drawing of the MT-ES-40 FL
Material composition
S235JR, Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
22 ft-lbf
Weight
2.4 lb

Documents

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Extensive software support - PROFIS Modular Support Engineering, BIMCAD content, and Revit® families are all available to streamline design and ordering

Applications

  • Extending MT strut channels by fastening them together end-to-end
  • Assembling metal framing for MEP support structures when longer spans or increased floor/ceiling clearance are required
  • Suitable for use in dry, indoor environments
