MT-C-T/2 FL Pre-assembled tee splice connector

Channel connector MT-C-T/2 FL #2399668

Configurator
Technical Data
Documents
Features & Applications
Related Products

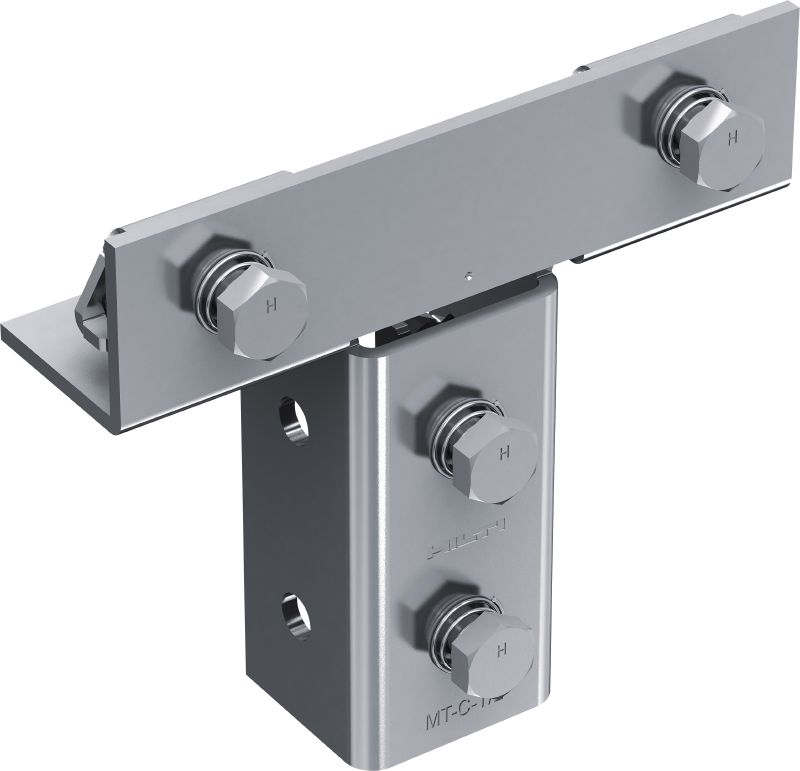

Still life picture of pre-assembled channel connector MT-C-T/2 FL with Fast-Lock
Cropped application image of pre-assembled channel connector with Fast-Lock
Line drawing of the MT-C-T/2 FL

Node with pre-assembled Fast-Lock nut and bolt for assembling strut channels in a T shape

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Box
Total Pieces
12
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$354.00
$354.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Tightening torque
22 ft-lbf
Weight
2.3 lb

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Extensive software support - PROFIS Modular Support Engineering, BIMCAD content, and Revit® families are all available to streamline design and ordering

Applications

  • Fastening T-shaped connections between two or three MT strut channels
  • Assembling 2D metal framing for MEP support structures
  • Suitable for use in dry, indoor environments
