MT-B-L FL Pre-assembled light-duty baseplate

Baseplate MT-B-L FL #2399665

Configurator
Technical Data
Documents
Features & Applications
Related Products

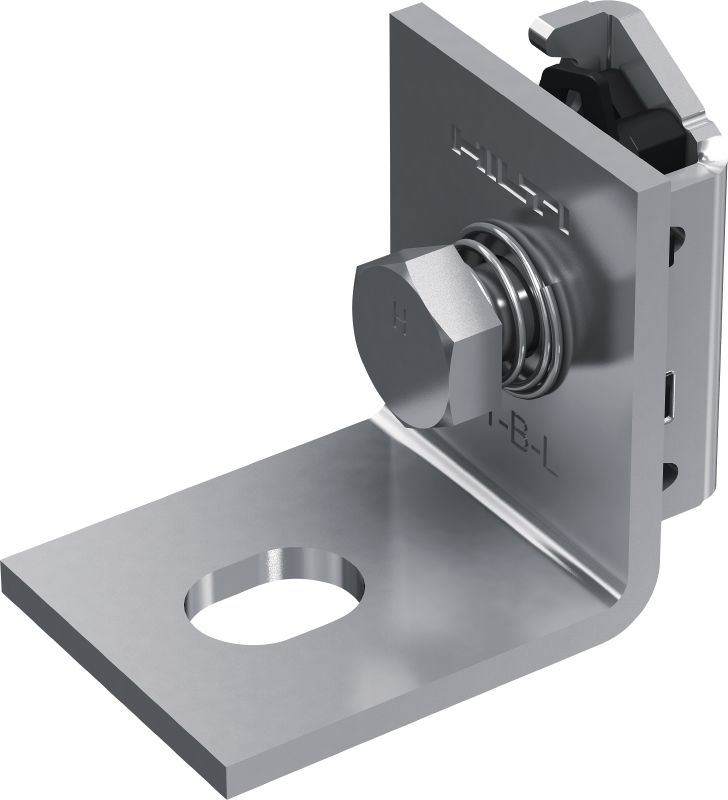

Still life picture of pre-assembled baseplate MT-B-L FL with Fast-Lock

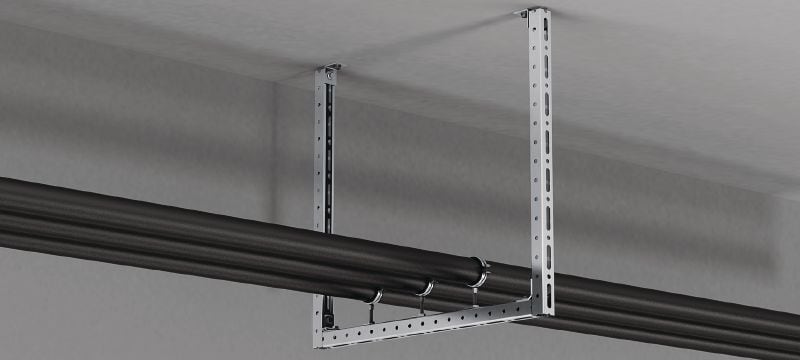

Cropped application image of pre-assembled baseplate with Fast-Lock
Line drawing of the MT-B-L FL

Base connector with pre-assembled Fast-Lock nut and bolt for anchoring light-duty strut channel structures to concrete or steel

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - indoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 18 pc
 Product options
Quantity
Box
Total Pieces
18
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$117.00
$117.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - indoor coated
Material thickness
4 mm
Surface finish
Indoor Coated - Electro galvanized
Thread connection - M
M10, 1/2 in
Tightening torque
22 ft-lbf
Weight
0.4 lb

Documents

Approval document
Certificate
Brochure
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with extra-light loads to a base material
  • Suitable for use in dry, indoor environments
