MT-B-O2 FL OC Pre-assembled baseplate

Baseplate MT-B-O2 FL OC #2399675

Configurator
Technical Data
Documents
Features & Applications
Related Products

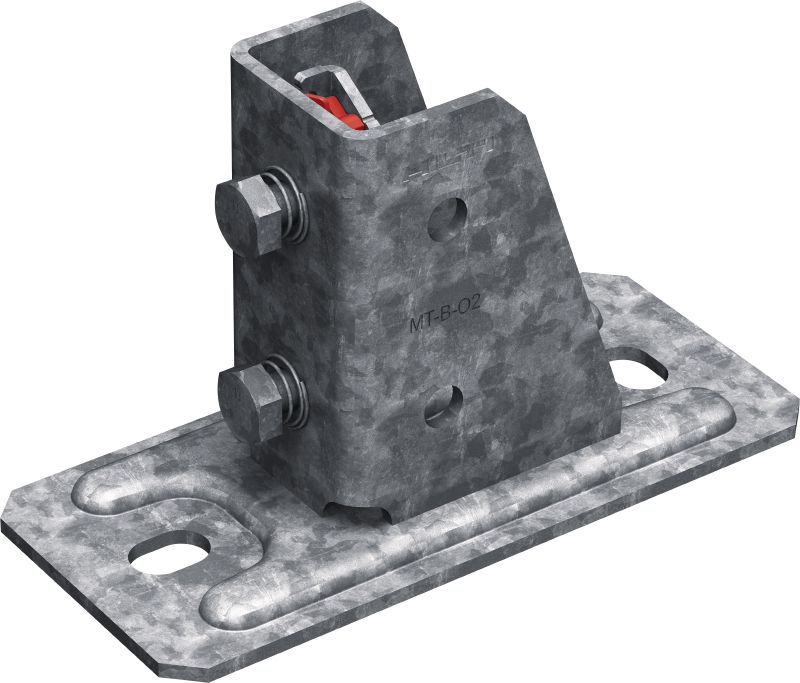

Still life picture of pre-assembled baseplate MT-B-O2 FL OC with Fast-Lock, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT-B-O2 FL

Base connector with pre-assembled Fast-Lock nut and bolt for anchoring strut channel structures to concrete and steel, for outdoor use with low pollution

  • Material composition: S235JR, Q235B
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 4 mm

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Box
Total Pieces
16
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$624.00
$624.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
S235JR, Q235B
Material and coating
Carbon steel - outdoor coated
Material thickness
4 mm
Surface finish
Outdoor Coated - HDG
Thread connection - M
M12, 1/2 in
Tightening torque
30 ft-lbf
Weight
2.6 lb

Documents

Approval document
Certificate
Brochure
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Adjustable – slotted anchor hole to simplify baseplate positioning and fastening
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with medium loads to a base material
  • Suitable for use in moderately corrosive environments
