MT-C-Q1 FL OC Pre-assembled corner angle

Channel connector MT-C-Q1 FL OC #2399673

Configurator
Technical Data
Documents
Features & Applications
Related Products

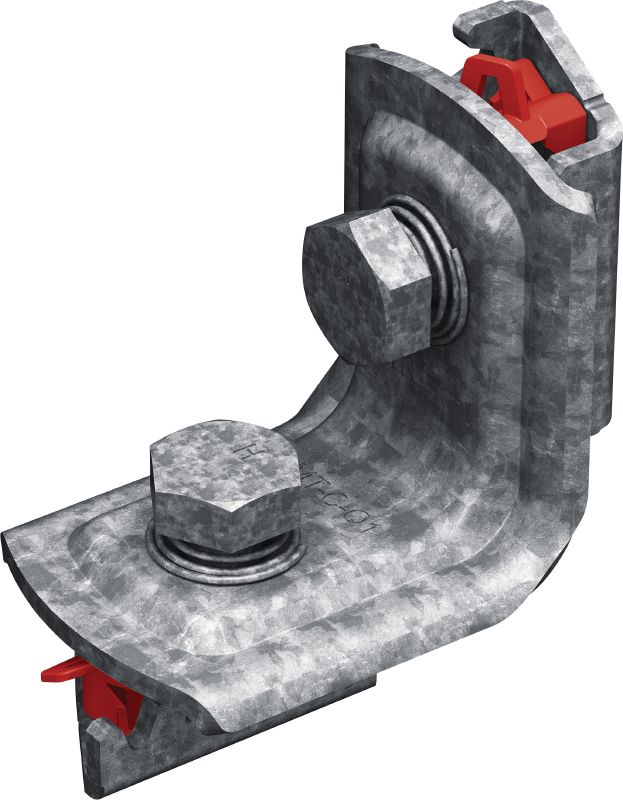

Still life picture of pre-assembled channel connector MT-C-Q1 FL OC with Fast-Lock, outdoor coated

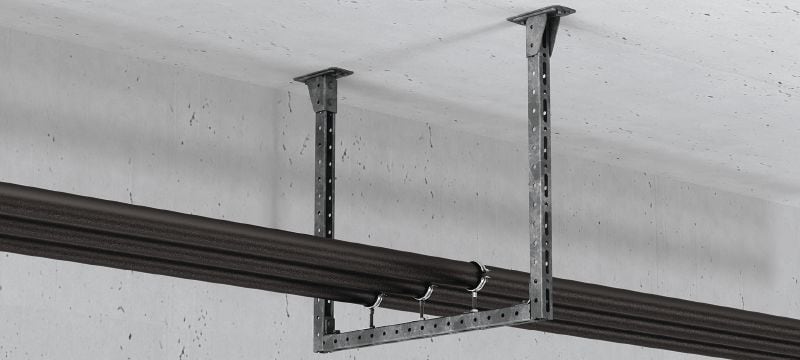

Cropped application image of pre-assembled channel connector with Fast-Lock, outdoor coated
Line drawing of the MT-C-Q1 FL

Angle bracket with pre-assembled Fast-Lock nut and bolt for assembling light-duty strut channel structures, for outdoor use with low pollution

  • Material composition: DD11 MOD
  • Material and coating: Carbon steel - outdoor coated
  • Material thickness: 3 mm

Choose options

Pack size
  • 16 pc
 Product options
Quantity
Box
Total Pieces
16
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$297.00
$297.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
DD11 MOD
Material and coating
Carbon steel - outdoor coated
Material thickness
3 mm
Surface finish
Outdoor Coated - HDG Plus
Tightening torque
30 ft-lbf
Weight
0.5 lb

Documents

Certificate
Approval document
Brochure
Operating Instruction
pdf EN 1090 Certificate of conformity of the factory production control MT, English [ 348.7 KB ]

Features & Applications

Features

  • Faster installations – pre-assembled with the Hilti MT Fast-Lock, our fastest method for assembling a modular support system with fewer steps
  • Simplified stock management – pre-assembly greatly reduces the total number of MT components, for easier purchasing, handling, and storage
  • Consistent installation quality – pre-assembly removes additional steps, helping reduce assembly errors for safer installations
  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Corrosion resistance – hot-dip galvanized to help protect against moisture and chemical corrosion

Applications

  • Right-angle connections between any MT strut channels
  • Assembling 2D metal framing for MEP support structures with light loads
  • Suitable for use in moderately corrosive environments
