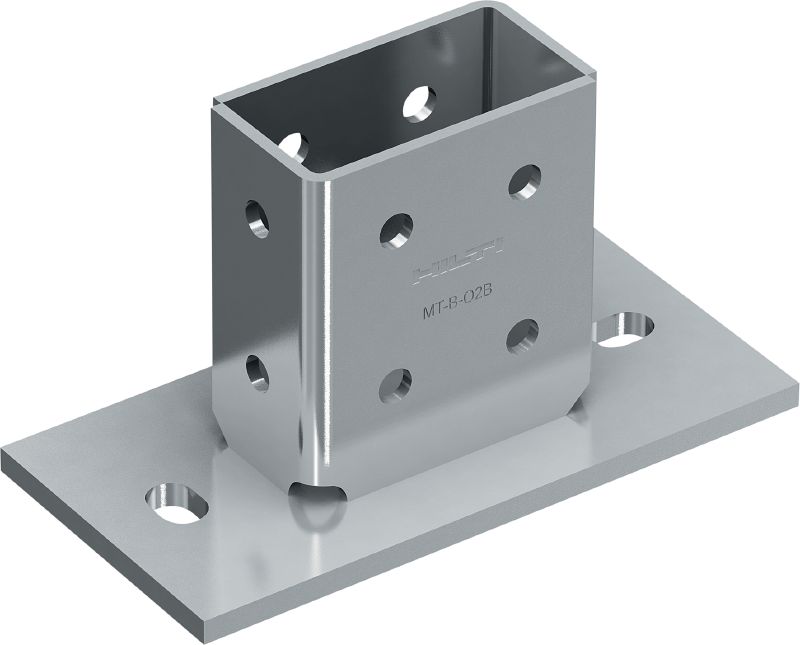

MT-B-O2B 3D-load baseplate

2-hole Baseplate MT-B-O2B #2282212

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT Base Connector
MT Base Connector
04_IS_MT-B-O2B_0001 (218665)

Base connector for anchoring strut channel structures under 3D loading to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Pre-galvanized - for dry indoor use only
  • Material thickness: 8 mm

Choose options

Pack size
  • 6 pc
 Product options
Quantity
Box
Total Pieces
6
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$453.00
$453.00 / 1 Box

Technical Data

Details
Technical illustrations
Material composition
Q235 or better steel
Surface finish
Pre-galvanized - for dry indoor use only
Material thickness
8 mm
Weight
4.5 lb
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Certificate
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures to a base material when resistance to 3D stresses is required
  • Suitable for use in dry, indoor environments
