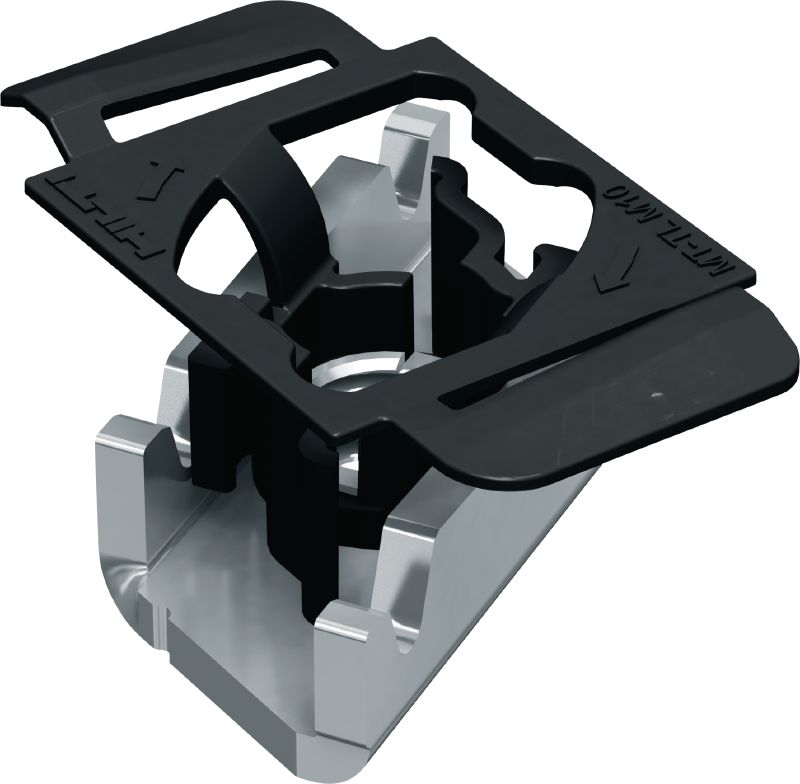

MT-TL Twist-Lock channel nut
Twist-Lock MT-TL M10 #2272080
Nut for attaching media to MT strut channels
- Material composition: High Strength Steel
- Surface finish: Pre-galvanized - for dry indoor use only
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Choose options
Thread - M
- M10
Pack size
- 50 pc
Quantity
Box
Total Pieces
50
Discounted net
$148.00
$148.00 / 1 Box
Technical Data
Material composition
High Strength Steel
Surface finish
Pre-galvanized - for dry indoor use only
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Weight
0.1 lb
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- High shear and pull-out resistance provided by a more reliable mechanical fixation to the channel flanges
- Easy to install – insert into strut channel using a one-handed "push-and-twist" motion
- Adaptable – unlike welding, Twist-Locks allow you to modify strut channel framing during installation and for future MEP requirements
- Compatible with MT System strut channels – no need for serrations on the channel flanges
Applications
- Connecting all compatible hardware to MT strut channels
- Assembling shear-resistant metal framing for MEP support structures using MT strut channels (M10 version only)
- Suitable for use in dry, indoor environments
