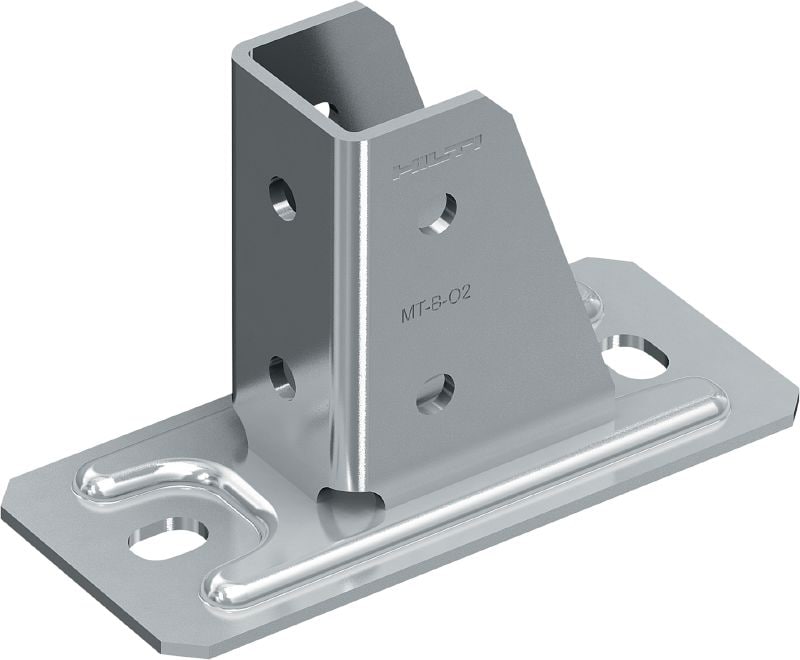

MT-B-O2 Baseplate for strut channels

2-hole Baseplate MT-B-O2 #2272094

Configurator
Technical Data
Documents
Features & Applications
Related Products
MT Base Connector
MT Base Connector

Base connector for anchoring strut channel structures to concrete or steel

  • Material composition: Q235 or better steel
  • Surface finish: Pre-galvanized - for dry indoor use only
  • Material thickness: 4 mm

Choose options

Pack size
  • 12 pc
 Product options
Quantity
Box
Total Pieces
12
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$398.00
$398.00 / 1 Box

Technical Data

Details

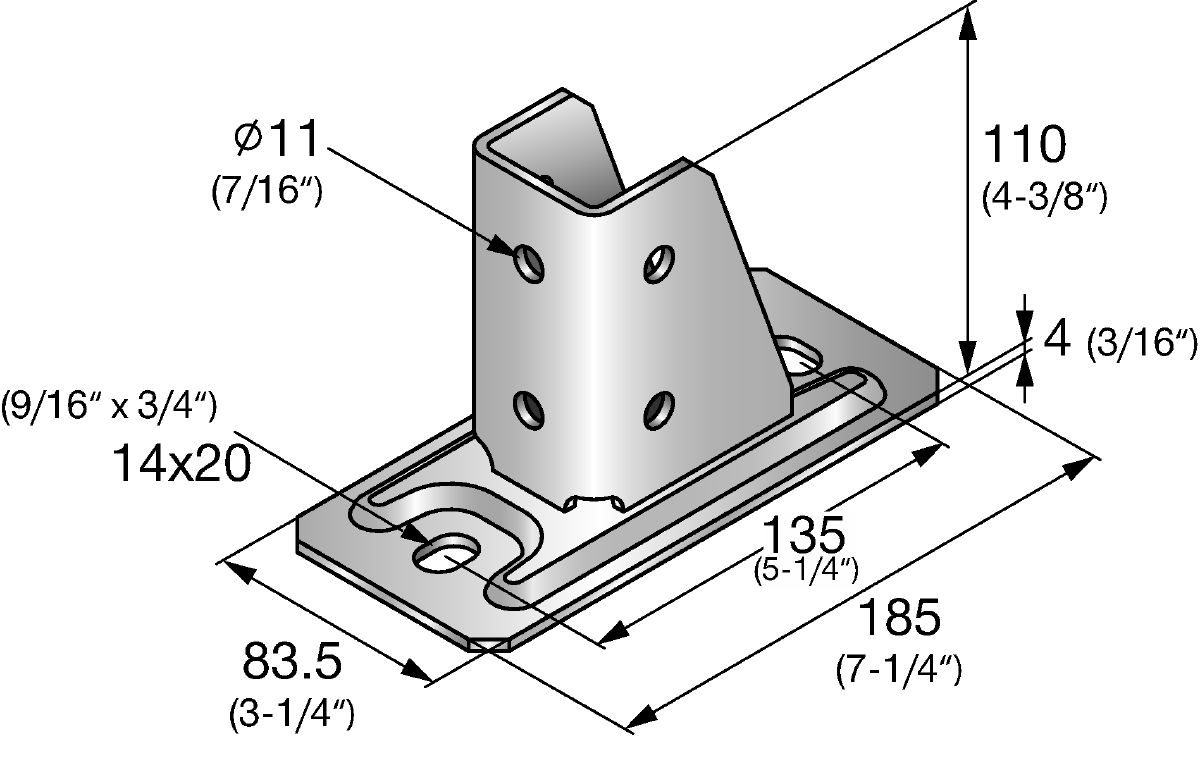

Technical illustrations
Material composition
Q235 or better steel
Surface finish
Pre-galvanized - for dry indoor use only
Material thickness
4 mm
Weight
2.3 lb
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)

Documents

Approval document
Certificate
Documentation
Technical information
Brochure
Sustainability Documentation
Operating Instruction
pdf ETA-23-0826 MT Base Connectors, English [ 2.4 MB ]
pdf ETA-23-0104 MT Frame Trapeze, English [ 3.3 MB ]

Features & Applications

Features

  • Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
  • Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
  • Adjustable – two slotted anchor holes to simplify baseplate positioning and fastening
  • Adaptable – unlike welding, modular post bases allow you to modify strut channel framing for future MEP requirements
  • Part of a complete Hilti solution – compatible with our direct fastening and anchoring solutions

Applications

  • Fastening MT strut channel to concrete floors, walls or ceilings
  • Fastening MT strut channel to structural steel
  • Anchoring metal framing and MEP support structures with medium loads to a base material
  • Suitable for use in dry, indoor environments
