MP-PS Weldable pipe shoe

Pipe shoe base slider plate set #2368739

Configurator
Technical Data
Documents
Features & Applications
Related Products

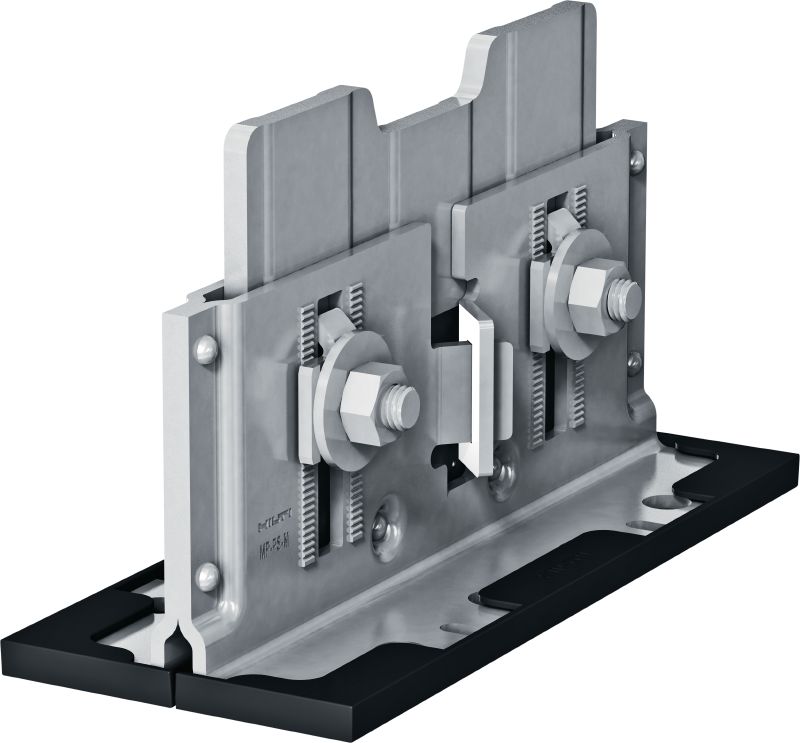

MP-PS M2-WS NC Weldable pipe shoe for guiding support.

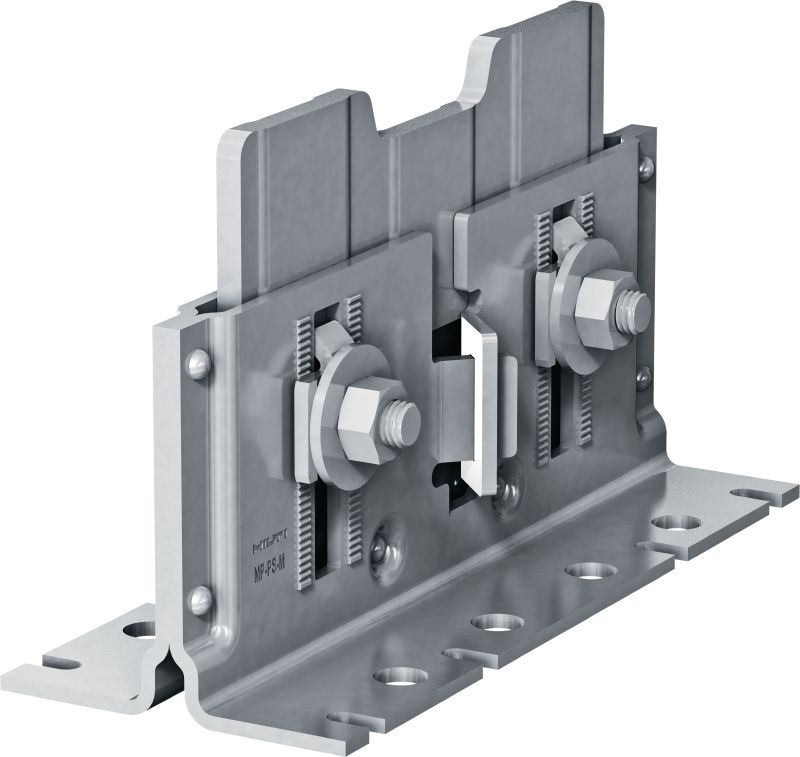

MP-PS M2-WS NC Weldable pipe shoe for fix point.

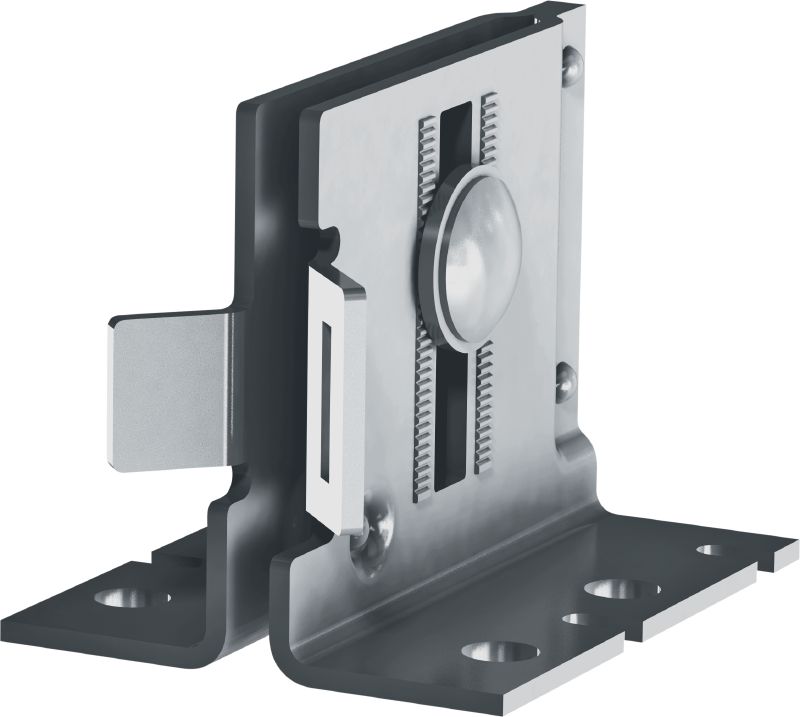

MP-PS M-BP OC baseplate component for pipe shoes.

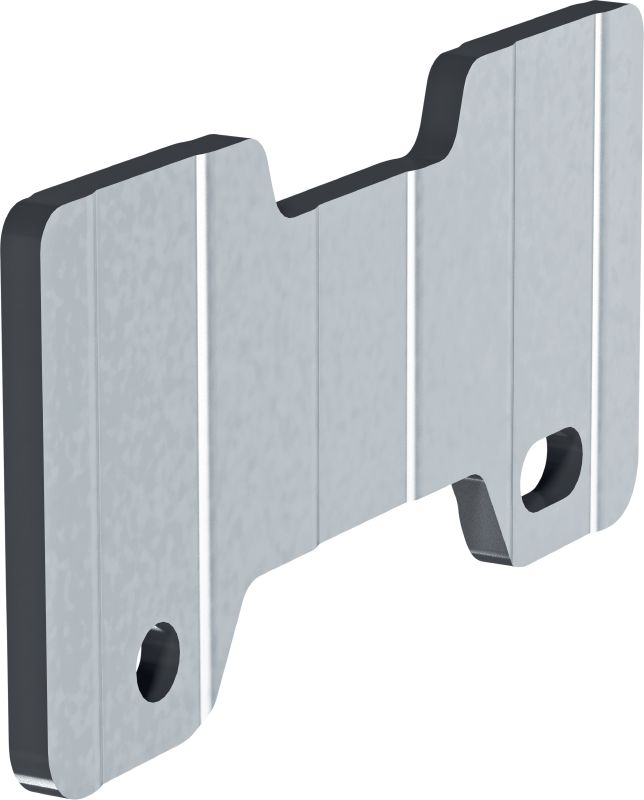

MP-PS M2-W NC weldable midßplate component for pipe shoe.

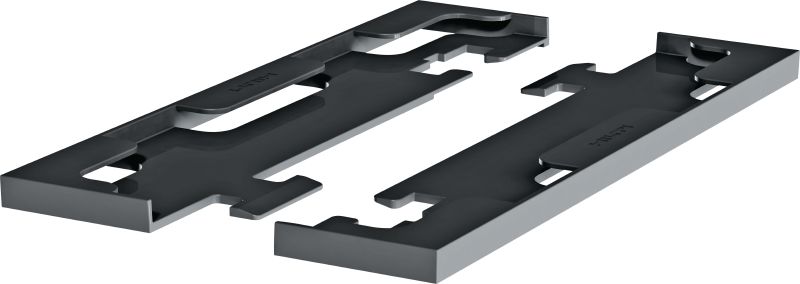

MP-PS SP-2 sliding plate set as component for pipe shoes.

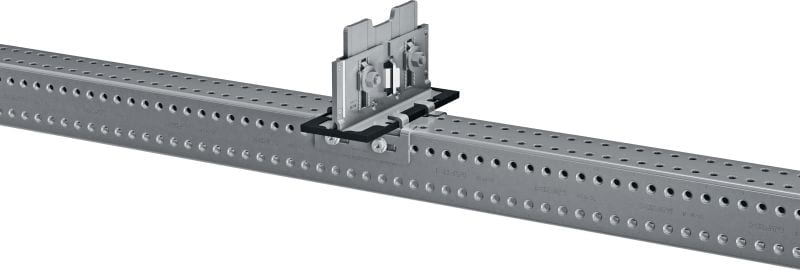

MP-PS M2-W with line guide connector on MT girder.

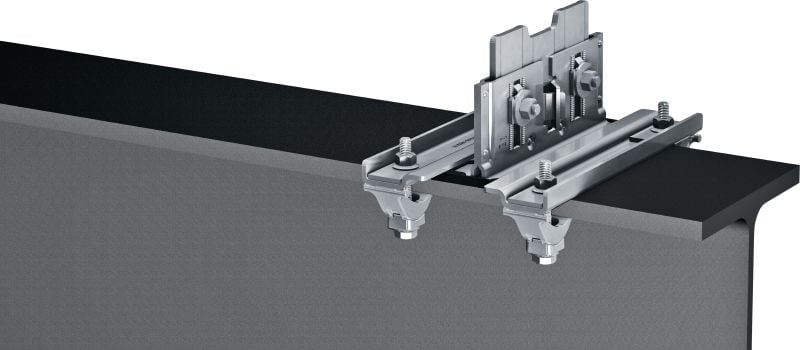

MP-PS M2-W as line guide with MP-PS-ISG on I-beam.

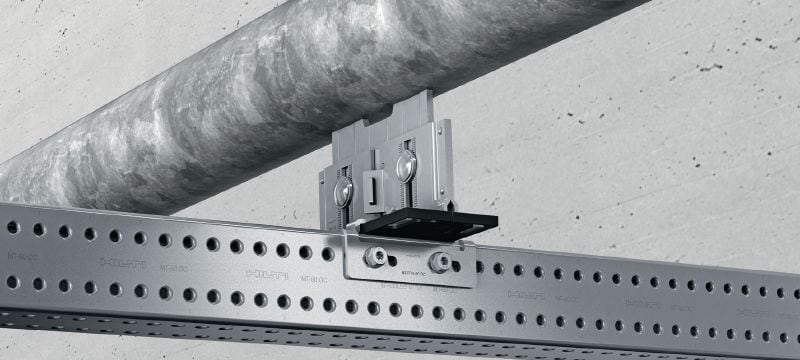

Single pipe run mounted with MP-PS pipe shoe on MT girder.
Open and editable line drawing for MP-PS M2-WS NC weldable pipe shoe for guiding support with metric and imperial dimensions, created in December 2022

Pipe shoe with weldable pipe interface and height and slope adjustability in heavy industrial applications with outer pipe diameters of 21-328 mm (1/2" to 12")

  • Fire resistance ( Yes/No): No
  • Temperature resistance: -40 - 302 °F
  • Material composition: Base-plate: S280GD / Modif POSMAC-C, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8

Customers also searched for pipe shoes.

Choose options

Pack size
  • 4 pc
 Product options
Quantity
Box
Total Pieces
4
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$36.75
$36.75 / 1 Box

Technical Data

Details
Technical illustrations
Fire resistance ( Yes/No)
No
Temperature resistance
-40 - 302 °F
Material composition
Base-plate: S280GD / Modif POSMAC-C, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
Base plate: 4 mm / 0.16 inches, Weldable plate: 7 mm / 0.28 inches, Sliding plate: 3 mm / 0.12 inches, Serrated washer: 4 mm / 0.16 inches
Surface finish
Base plate: ZM300, Weldable plate: non-coated
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
36.88 ft-lbf

Documents

Documentation
Sustainability Documentation
Operating Instruction
pdf Corrosion handbook, English [ 9.6 MB ]

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after pipe is welded to connector plate
  • Avoid hot work permit on site – weldable pipe connector can be prepared and welded in fab shop without any adjustability limitations on site

Applications

  • Fastening pipes to steel beams, concrete, or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for small-bore piping with temperatures of up to 300°C (572°F) and an insulation thickness of up to 162 mm (6”)
  • Recommended for use in indoor or outdoor environments with low to moderate pollution (C3 / C4 - low)
