MP-PS 1-1 Pipe shoe

Features & Applications

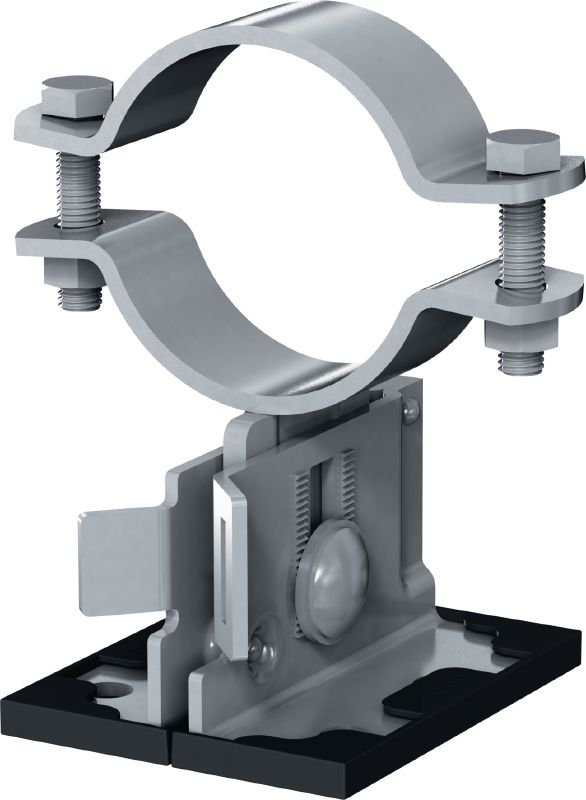

MP-PS L1-1 Single Pipe Shoe Low Version

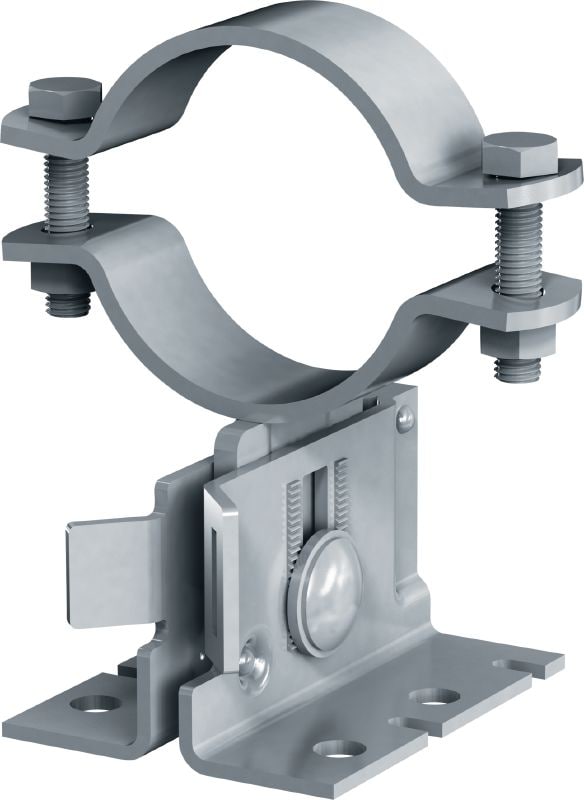

MP-PS L1-1 Single Pipe Shoe Low Version Fixpoint

MP-PS L1-1 Single Pipe Shoe Low Version

MP-PS L1-1 Single Pipe Shoe Low Version Fixpoint

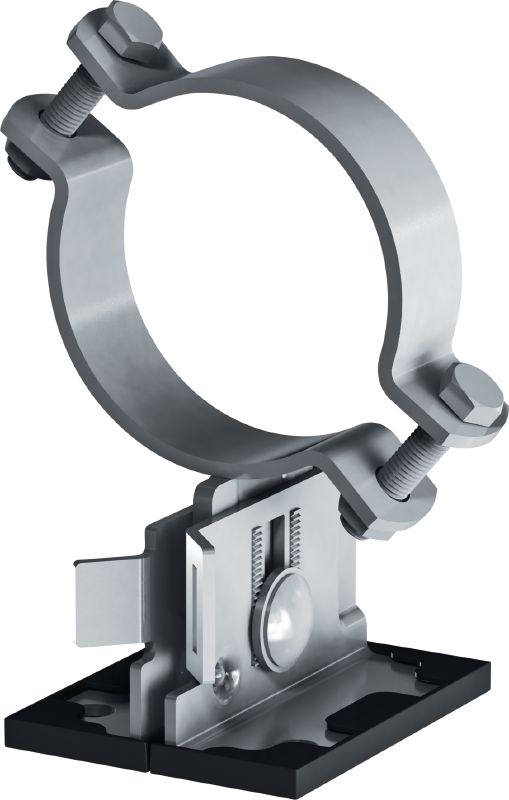

MP-PS M1-1 rotated clamp, single pipe shoe, medium version

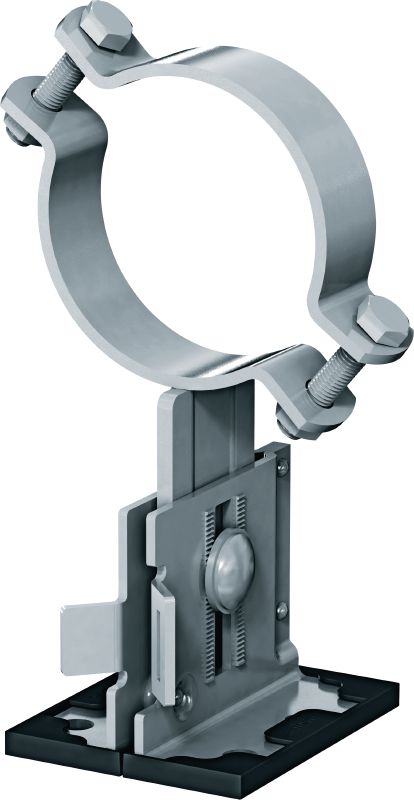

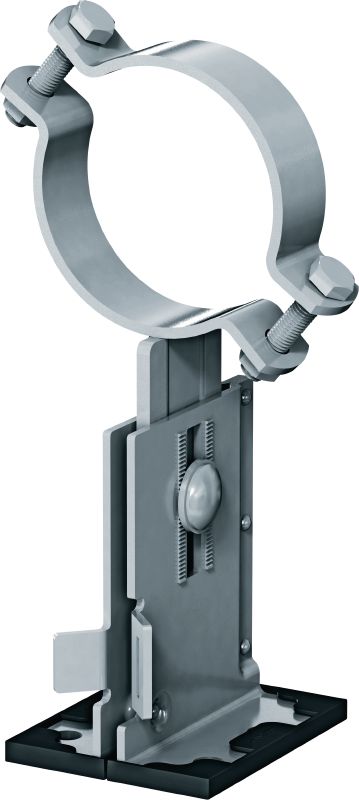

MP-PS H1-1 rotated clamp, single pipe shoe, high version

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-173 mm (1/2" to 6")

Fire resistance ( Yes/No): No
Temperature resistance: -4 - 572 °F
Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8

Choose options

Clamping Range - D

0.83 - 1.02 in
1.02 - 1.22 in
1.26 - 1.46 in
1.5 - 1.73 in
1.77 - 2.01 in
2.32 - 2.56 in
2.95 - 3.19 in
3.46 - 3.7 in
3.94 - 4.25 in
4.33 - 4.65 in
4.92 - 5.24 in
5.35 - 5.67 in
5.98 - 6.38 in
6.42 - 6.81 in

Height above ground to base of pipe

3-1/2 - 4-9/16 in
4-9/16 - 6-11/16 in
6-11/16 - 8-3/4 in

Nominal pipe size (imperial)

1/2 in
3/4 in
1 in
1-1/4 in
1-1/2 in
2 in
2-1/2 in
3 in
3-1/2 in
4 in
5 in
6 in

Nominal pipe size

15 mm
20 mm
25 mm
32 mm
40 mm
50 mm
65 mm
80 mm
100 mm
125 mm
150 mm

Pack size

4 pc
8 pc

Product options

Quantity

Packs

Total Pieces

1

You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net

From $365.00
