MT-50D C-Channel profile

6 Meter - B2B 1-5/8 Equivalent Strut Channel - M12 (1/2") slots - Pre- #2362803

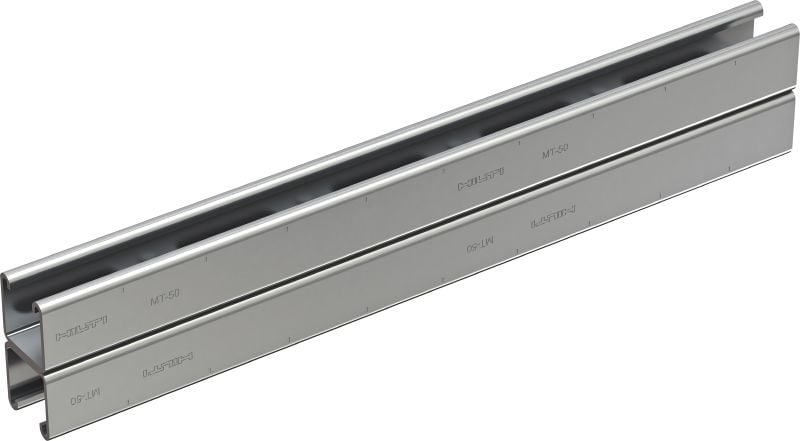

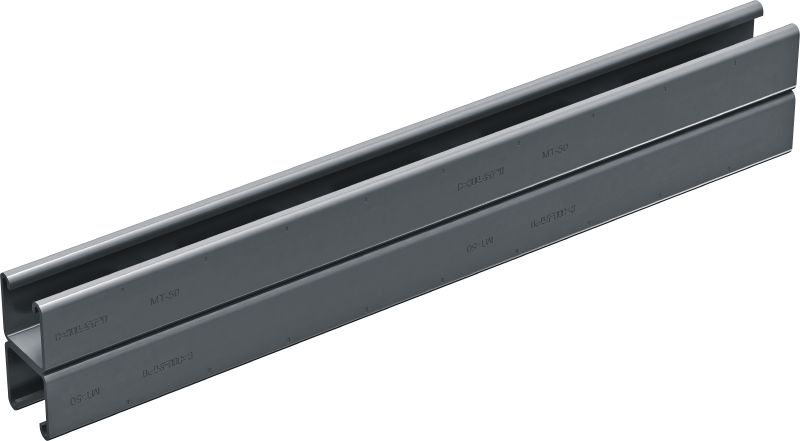

3D side view of the channel MT-50D
3D side view of the channel MT-50D

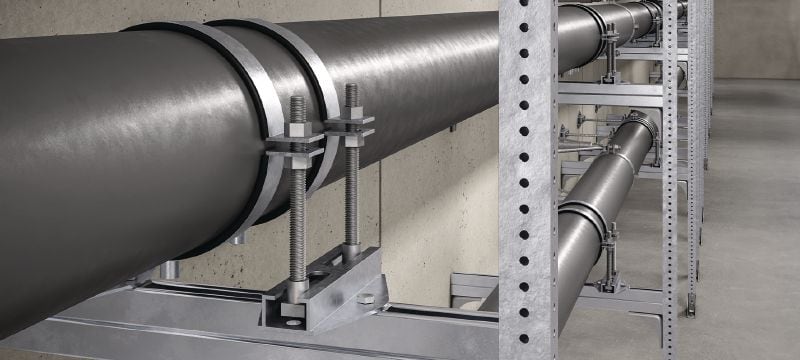

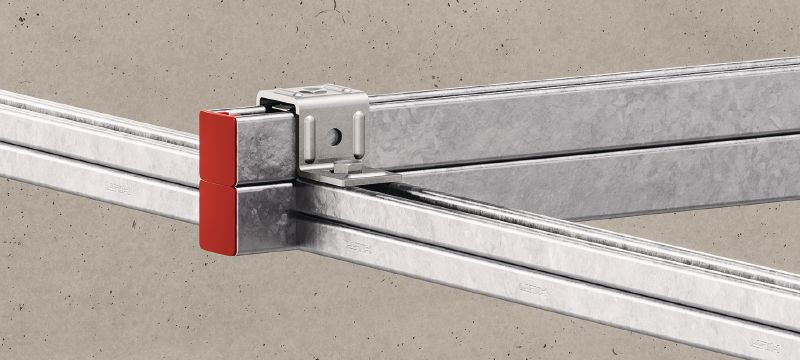

Cropped application picture of back-to-back double strut channel
Cropped application picture of back-to-back double strut channel
Line drawing of back-to-back double strut channel

Medium-duty double C-Channel profile for use with MT-FL/MT-TL components in indoor environments

  • Material composition: S280GD
  • Surface finish: Galvanized
  • Material thickness: 2.75 mm

Choose options

Pack size
  • 6 m
 Product options
Quantity
Packs
Total Pieces
6
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
$2,466.00
$411.00
/
1 Each

Technical Data

Material composition
S280GD
Surface finish
Galvanized
Material thickness
2.75 mm
Weight
12.1 lb
Environmental conditions
Indoor

Documents

pdf ETA-23-0105 Static Fire MT Channels, English [ 3.1 MB ]

Features & Applications

Features

  • Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
  • Complexity kept to the minimum – the MT system is designed to help you simplify both logistical operations and on-site installation
  • Simpler to design – you can use Hilti MT components for all MEP installations from the lightest trapeze to the heaviest-duty modular framing
  • Simpler to install – compatible with the innovative MT System Twist-Lock, enabling the use of a wide range of MT connectors and baseplates
  • Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering

Applications

  • Heavy pipe connections on both sides of the channel in trapeze
  • Overhead MEP grids
  • Suitable for use in dry, indoor environments
