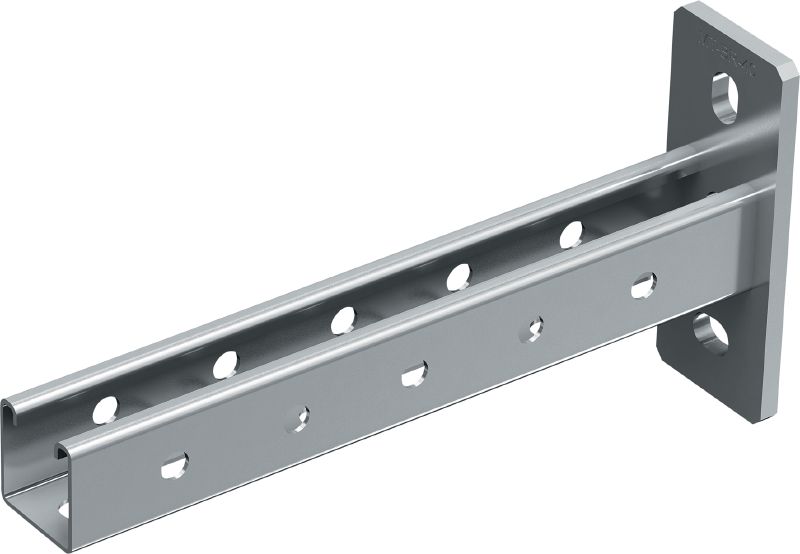

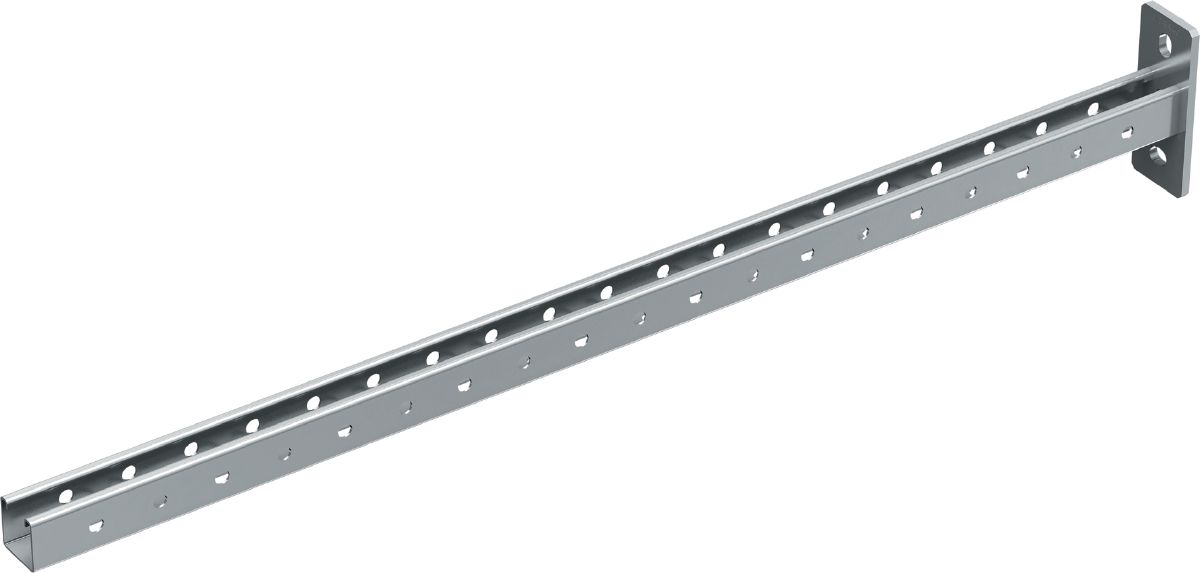

MT-BR-40 Bracket
Bracket MT-BR-40 1000 #2271446
Medium-duty C-Channel bracket for indoor applications
- Material composition: Q235 or better steel
- Surface finish: Electro galvanized - for dry indoor use only
- Material thickness: 8 mm
Choose options
Length - L
- 11-13/16 in
- 17-23/32 in
- 23-5/8 in
- 39-3/8 in
Pack size
- 10 pc
Quantity
Box
Total Pieces
10
Discounted net
$1,074.00
$1,074.00 / 1 Box
Technical Data
Material composition
Q235 or better steel
Surface finish
Electro galvanized - for dry indoor use only
Material thickness
8 mm
Weight
5.6 lb
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Length - L
39-3/8 in
Documents
Features & Applications
Features
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
- Economical – high load/weight ratio and rapid assembly make MT strut channel a more efficient alternative to welded MEP support structures
- Easy to install – compatible with the Hilti MT Twist-Lock, a faster alternative to spring nuts for assembling a modular support system
- Adjustable – two slotted holes simplify leveling and fine adjustment
- Extensive software support – PROFIS Modular Support Engineering, the MEP Support Selector, Revit® families, and plug-ins for Staad Pro® and Smart 3D® are all available to streamline design and ordering
Applications

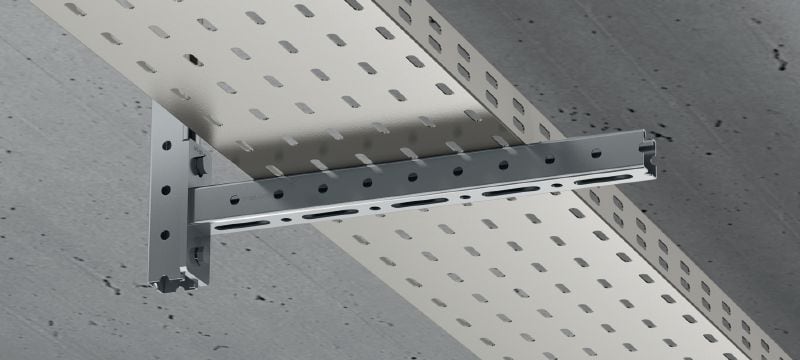

- Supporting pipe rings, ventilation ducts, cable trays and other MEP support hardware
- Mounting light-duty MEP installations on concrete and steel
- Suitable for use in dry, indoor environments
