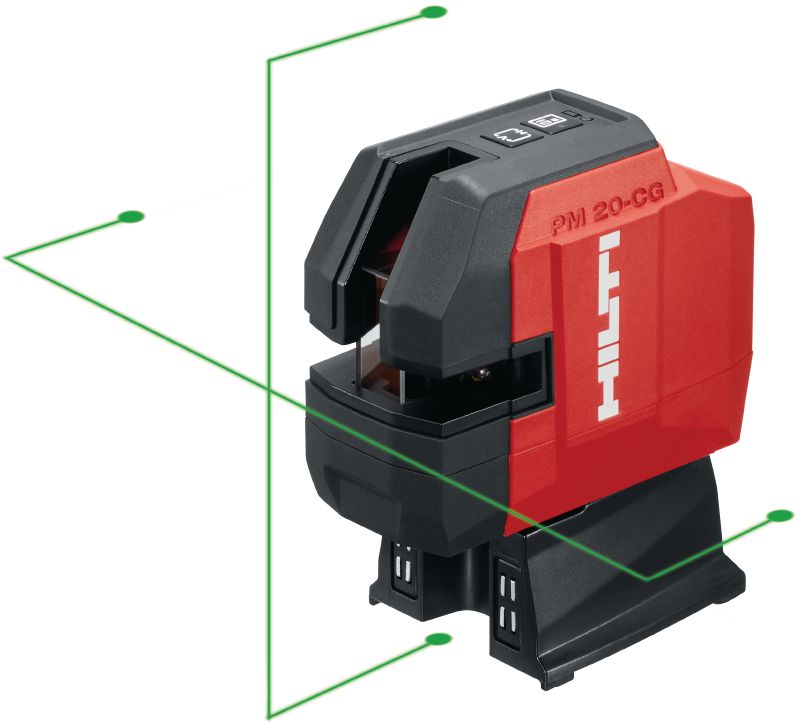

PM 20-CGE High-precision plumb and cross line laser

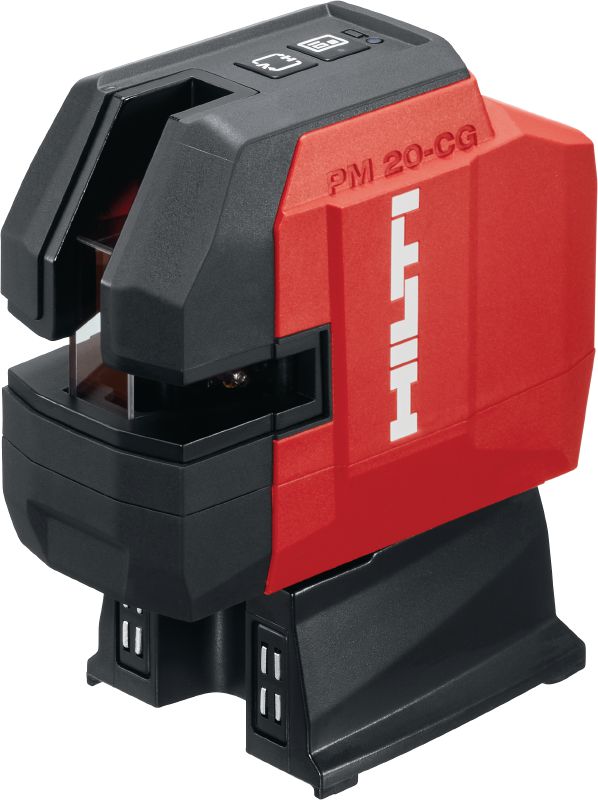

PM 20-CGE High-precision plumb and cross line laser
PM 20-CG Plumb and cross line laser used for horizontal alignment application
PM 20-CG Plumb and cross line laser used for inclined application
PM 20-CG 12 V Plumb and cross line laser used for vertical alignment on ceiling
PM 20-CG 12 V Plumb and cross line laser used for vertical alignment on ceiling

High-precision green beam combi-laser with 2 lines and 4 points for plumbing, leveling, aligning and squaring

  • Accuracy: ±0.08 in at 33 ft
  • Max. operating distance (diameter): 131 ft (lines), 328 ft (lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $1,079.00

Technical Data

Accuracy
±0.08 in at 33 ft
Max. operating distance (diameter)
131 ft (lines), 328 ft (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self leveling range at room temperature
+/-4° °
Self leveling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

pdf Operating Instruction PM 20-CG(E), PM 20-CG A12, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 15 MB ]

Features & Applications

Features

  • Higher laser precision – for leveling and plumbing tasks with strict tolerances, such as elevator installation, façade or metal fabrication
  • High-speed layout – compact, self-leveling cross line laser with one-button operation so you can get started with minimal setup time
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture, and Class 2 laser which requires no special precautionary measures

Applications

  • Vertical alignment of elevator rails
  • Checking, transferring and aligning reference points in elevator shafts or on façades
  • Leveling and aligning elevator doors and façade elements
  • Transferring fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights

For approval or certificate information, please see individual items.
