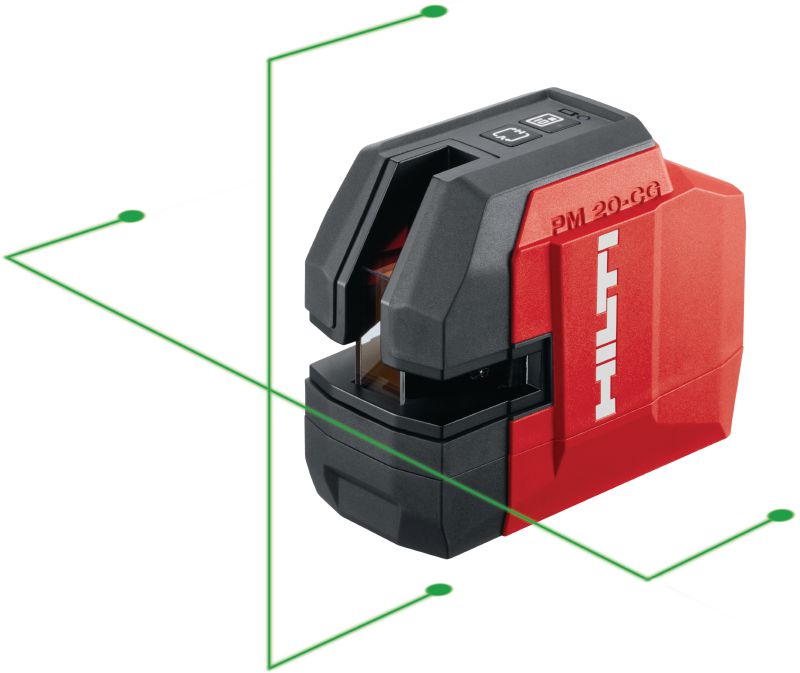

PM 20-CG Plumb and cross line laser

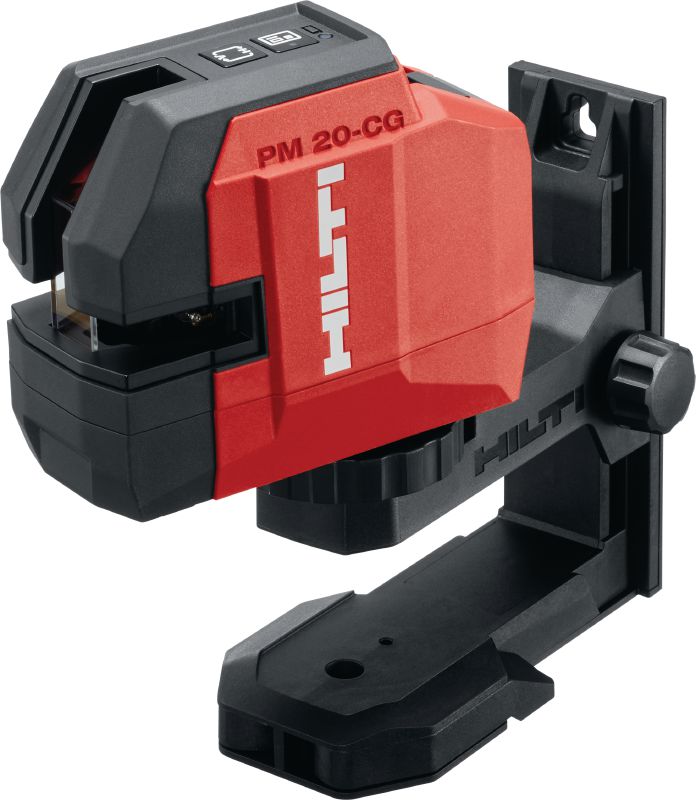

PM 20-CG Plumb and cross line laser

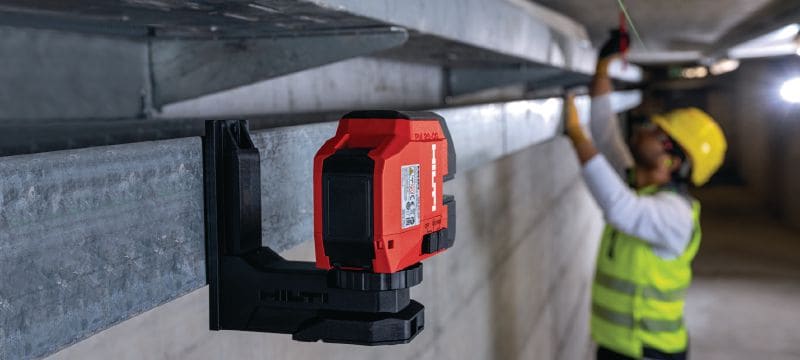

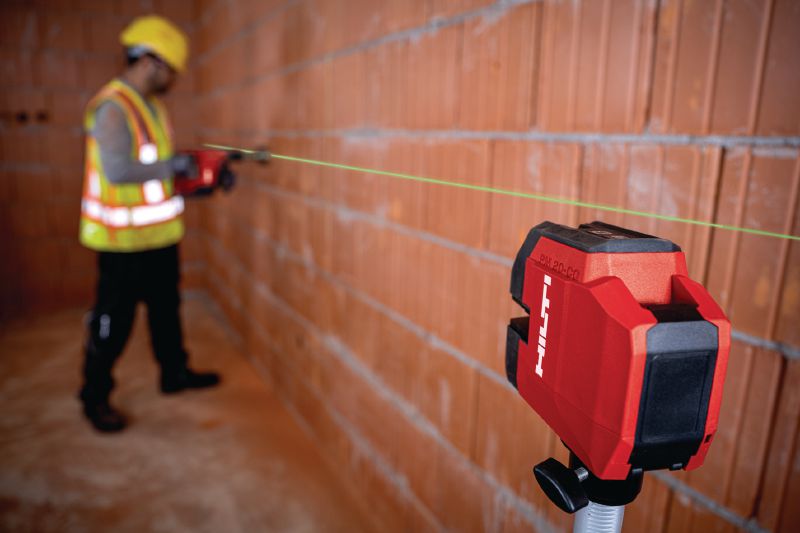

PM 20-CG Plumb and cross line laser used for horizontal alignment application

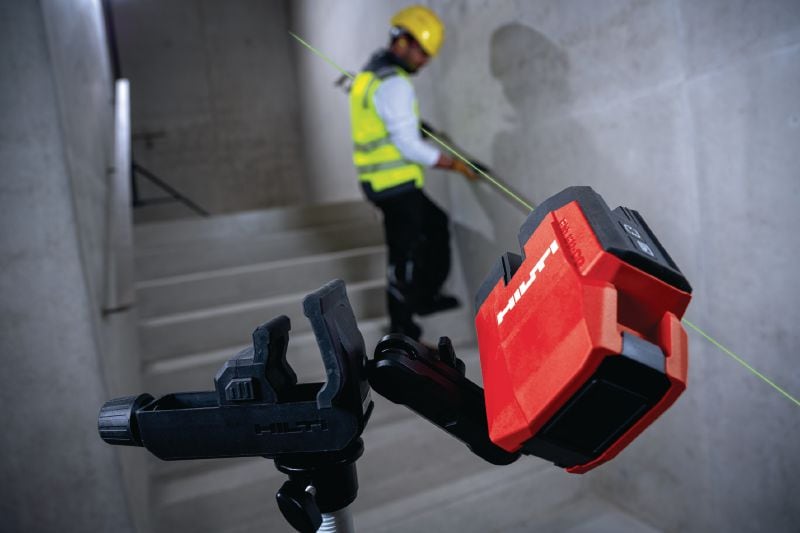

PM 20-CG Plumb and cross line laser used for inclined application

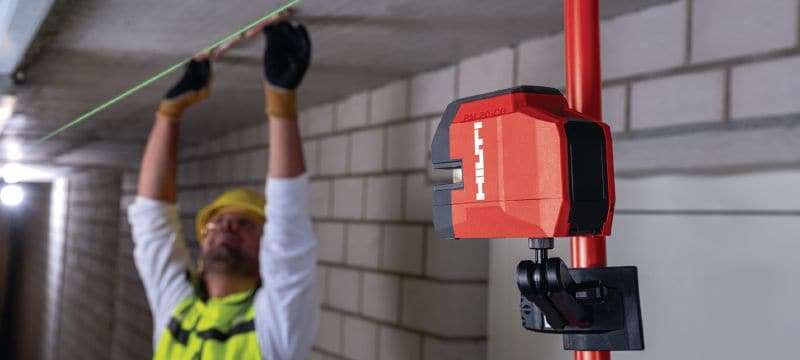

PM 20-CG 12 V Plumb and cross line laser used for vertical alignment on ceiling
PM 20-CG 12 V Plumb and cross line laser used for vertical alignment on ceiling

Green beam combi-laser with 2 lines and 4 points for plumbing, leveling, aligning and squaring

  • Accuracy: ±0.12 in at 33 ft
  • Max. operating distance (diameter): 131 ft (lines), 328 ft (lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You cannot see your company prices

Please Log in or register to see your company prices. Prices vary for Hawaii, Alaska and US Territories.

Discounted net
From $519.00

Technical Data

Accuracy
±0.12 in at 33 ft
Max. operating distance (diameter)
131 ft (lines), 328 ft (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self leveling range at room temperature
+/-4 °
Self leveling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

Operating Instruction
Material safety datasheet
Battery Recycling Information
pdf Operating Instruction PM 20-CG(E), PM 20-CG A12, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 15 MB ]
pdf Operating Instruction Li-Ion, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 1.5 MB ]
pdf Operating Instruction C4 12-50 POS3, English, Spanish, French, Portuguese [ 1.1 MB ]
pdf Operating Instruction Hilti Li-Ion Akku 01, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Swedish, Turkish, Ukrainian, Chinese, Serbian [ 1.4 MB ]

Features & Applications

Features

  • High-speed layout – compact, self-leveling cross line laser with magnetic bracket so you can get started with minimal setup time
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture, and Class 2 laser which requires no special precautionary measures
  • Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime

Applications

  • Aligning pipes, cable trays, lighting and drywall track
  • Leveling power outlets, cable trays, radiators and pipe installations
  • Aligning and leveling doors, windows and handrails
  • Transferring track positions and fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights

For approval or certificate information, please see individual items.
